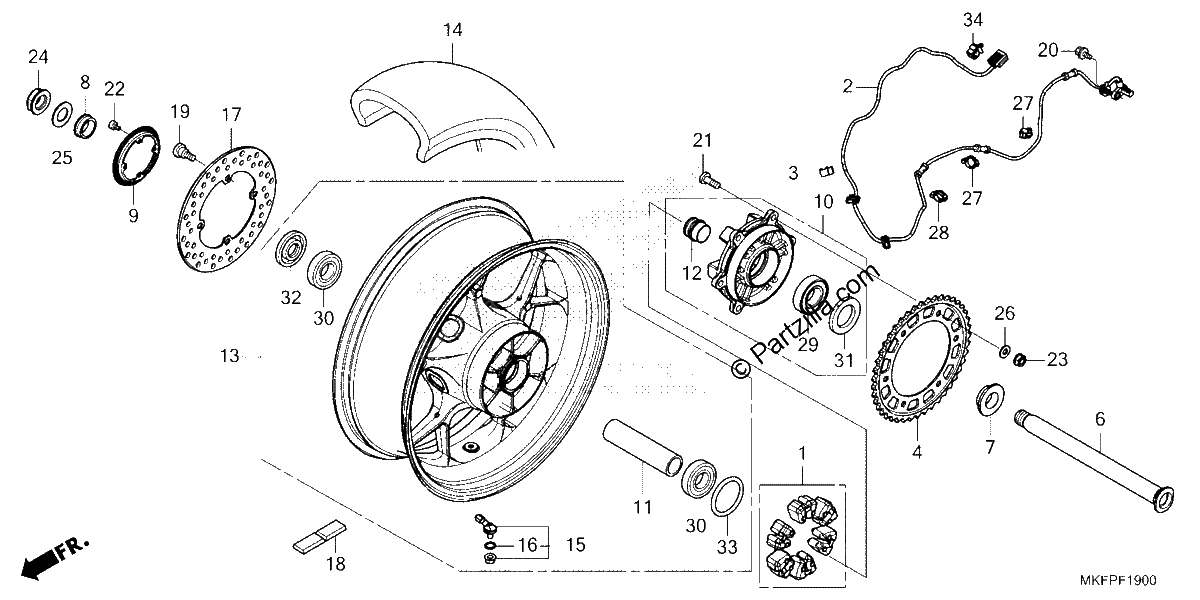

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$64.04¢32 019
#002
SENSOR, RR. WHEEL SPEED
$242.64¢121 319
#003
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
#004
SPROCKET, FINAL DRIVEN (43T)
$99.56¢49 781
#006
AXLE, RR. WHEEL
$100.94¢50 469
#007
COLLAR, RR. WHEEL SIDE
$41.92¢20 963
#008
COLLAR, RR. BRAKE SIDE
$33.20¢16 600
#009
RING, RR. PULSER
$43.38¢21 688
#010
FLANGE SUB-ASSY., RR. DRIVEN
$270.60¢135 300
#011
COLLAR, RR. AXLE DISTANCE
$54.59¢27 294
#012
COLLAR B, RR. WHEEL DISTANCE
$31.74¢15 869
#013
WHEEL SUB-ASSY., RR. (TYPE2)
$1417.47¢708 738
#014
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
No Disponible
#014
TIRE, Rear. (190/50ZR17) (M/C 73W) (DUNLOP)
$129.64¢64 819
#015
VALVE ASSY., CLAMP IN
$19.25¢9 625
#016
O-RING
$1.96¢981
#017
DISK, RR. BRAKE
$337.88¢168 938
#018
WEIGHT, BALANCE (20G)
$5.22¢2 613
#018
WEIGHT, BALANCE (10G)
$3.91¢1 956
#018
WEIGHT, BALANCE (15G)
$4.68¢2 338
#019
BOLT, BRAKE DISK (8X24)
$4.86¢2 431
#020
BOLT, FLANGE (6X14)
$2.85¢1 425
#021
BOLT (10X28.5)
$4.96¢2 481
#022
BOLT, TORX (5X10)
$3.65¢1 825
#023
NUT, U (10MM)
$5.25¢2 625
#024
NUT, U FLANGE (24MM)
$27.41¢13 706
#025
WASHER (24.1X43X2.5)
$7.31¢3 656
#026
WASHER (10MM)
$3.61¢1 806
#027
CLIP, CABLE (14MM)
$2.27¢1 138
#028
CLIP, CABLE (14MM)
$2.27¢1 138
#029
BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI)
$72.69¢36 344
#030
BEARING, RADIAL BALL (60/28)
$21.72¢10 862
#031
DUST SEAL (40X63X7) (NOK)
$20.39¢10 194
#032
DUST SEAL (36X52X7) (NOK)
$12.69¢6 344
#033
O-RING (57X2) (ARAI)
$6.34¢3 169
