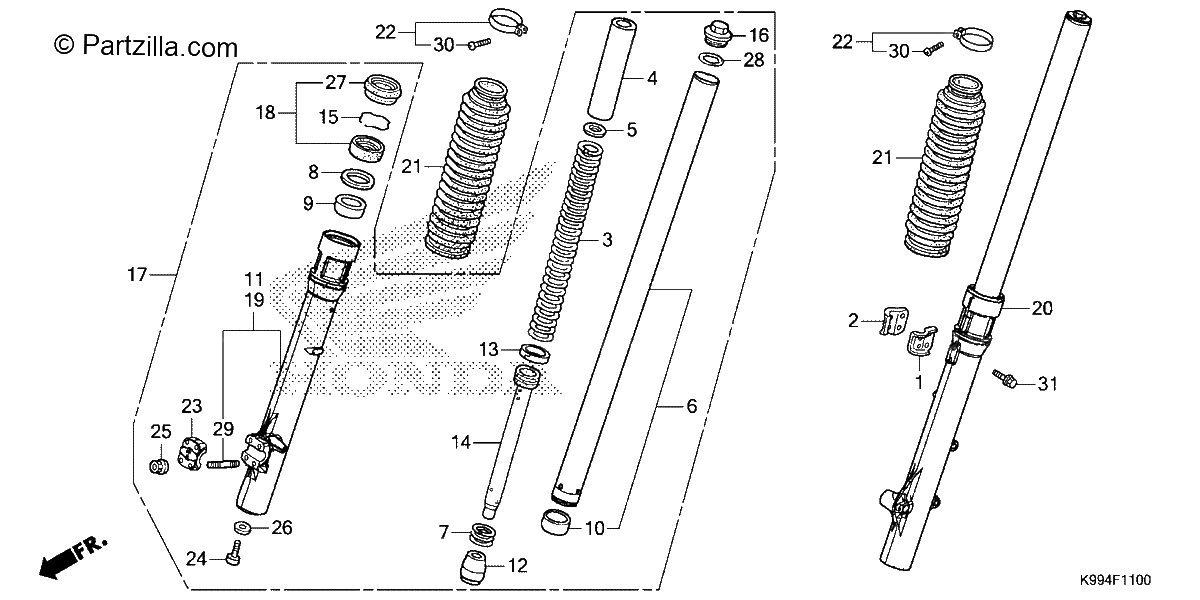

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$9.30¢4 650
#002
CLAMP B, BRAKE HOSE
$13.21¢6 606
#003
SPRING, Front FORK
$31.21¢15 606
#004
COLLAR, SPRING (SHOWA)
$27.86¢13 931
#005
SEAT, SPRING (SHOWA)
$5.81¢2 906
#006
PIPE, Front FORK
$96.27¢48 137
#007
SPRING, REBOUND
$2.59¢1 294
#008
RING, BACK-UP (SHOWA)
$11.29¢5 644
#009
BUSH, GUIDE (SHOWA)
$16.27¢8 137
#009
BUSH, GUIDE
$16.27¢8 137
#010
BUSH, SLIDER
$4.39¢2 194
#011
CASE SET, Right Front. (LOWER) (SHOWA)
$127.48¢63 738
#012
PIECE, OIL LOCK
$19.14¢9 569
#013
RING, PISTON
$8.73¢4 363
#014
PIPE, SEAT
$20.55¢10 275
#015
RING, OIL SEAL STOP
$1.23¢613
#016
BOLT, FR. FORK
$44.54¢22 269
#017
FORK SUB-Assembly., Right Front. NH109MS (SHOT SILVER METALLIC SPECIAL)
$318.50¢159 250
#018
SEAL SET, Front FORK
$12.68¢6 338
#019
CASE SET, L Front. (LOWER)
$140.54¢70 269
#020
FORK SUB-Assembly., L Front.
$270.95¢135 475
#021
BOOT, Front FORK
$67.85¢33 925
#022
BAND, FR. FORK BOOT
$12.75¢6 375
#023
HOLDER, AXLE *NH109MS* (SHOT SILVER METALLIC SPECIAL)
$36.41¢18 206
#024
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
#025
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#026
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#027
DUST SEAL, Front FORK
$27.07¢13 538
#028
O-RING (33.2X2.4)
$4.56¢2 281
#029
BOLT, STUD (6X25)
$1.34¢669
#030
SCREW, PAN (3X20)
$1.01¢506
#031
BOLT, FLANGE (6X16)
$1.35¢675
