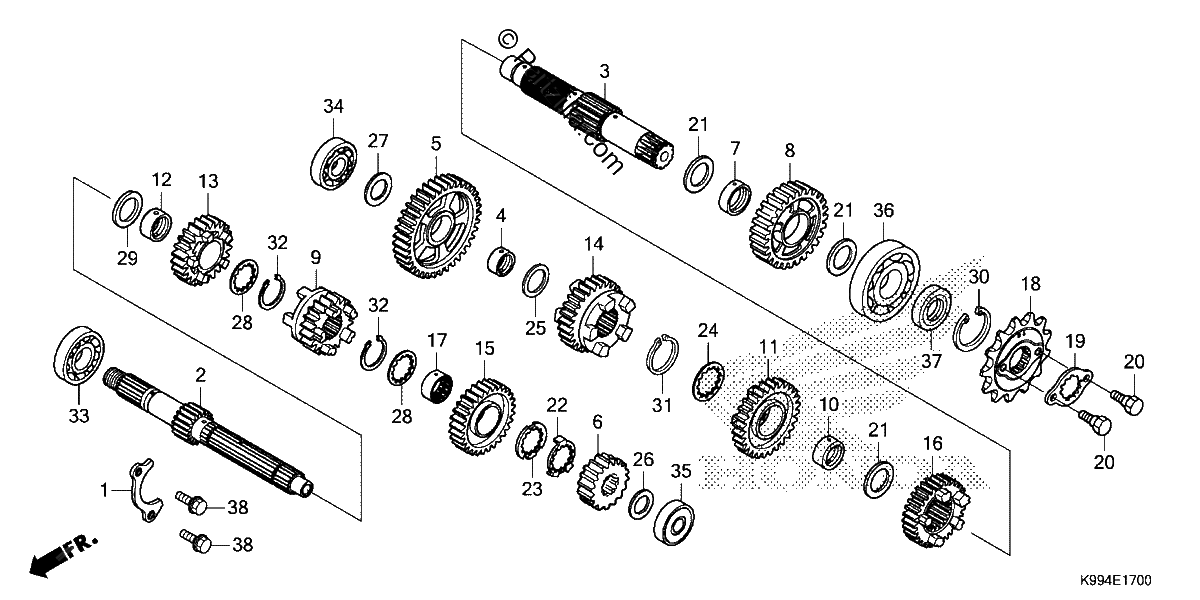

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PLATE, BEARING SETTING
$4.46¢2 231
#002
MAINSHAFT (13T)
$46.21¢23 106
#003
COUNTERSHAFT (21T)
$51.99¢25 994
#004
COLLAR (18X21X10)
$13.81¢6 906
#005
GEAR, COUNTER FIRST (37T)
$34.00¢17 000
#006
GEAR, MAINSHAFT SECOND (20T)
$19.23¢9 613
#007
BUSH (22X25X10)
$11.56¢5 781
#008
GEAR, COUNTERSHAFT SECOND (38T)
$29.29¢14 644
#009
GEAR, MAINSHAFT THIRD (20T)
$39.42¢19 713
#010
BUSH (22X25X13.1)
$20.06¢10 031
#011
GEAR, COUNTER THIRD (28T)
$30.49¢15 244
#012
BUSH (20X23X17.4)
$30.04¢15 019
#013
GEAR, MAINSHAFT FOURTH (24T)
$31.48¢15 738
#014
GEAR, COUNTER FOURTH (26T)
$38.85¢19 425
#015
GEAR, MAINSHAFT FIFTH (29T)
$32.38¢16 188
#016
GEAR, COUNTERSHAFT FIFTH (26T)
$36.05¢18 025
#017
COLLAR, SPLINE (23MM)
$28.36¢14 181
#018
SPROCKET, DRIVE (13T)
$61.31¢30 656
#019
PLATE, FIXING
$3.30¢1 650
#020
BOLT, DRIVE SPROCKET FIXING
$5.59¢2 794
#021
WASHER, THRUST (22.2MM)
$5.41¢2 706
#022
WASHER, LOCK (20X19X1.0)
$4.58¢2 288
#023
WASHER, THRUST (20X19X1.0)
$4.71¢2 356
#024
WASHER, THRUST INVOLUTE (22X21X1)
$4.97¢2 488
#025
WASHER, THRUST (18MM)
$2.88¢1 438
#026
WASHER (15X25X1.0)
$6.38¢3 188
#027
WASHER (17X28X1.0)
$4.24¢2 119
#028
WASHER, SPLINE (20MM)
$1.63¢813
#029
WASHER B, THRUST (20MM)
$1.02¢513
#030
CIRCLIP (INNER) (37MM)
$4.65¢2 325
#031
SET-RING (22MM)
$12.44¢6 219
#032
SET-RING (20MM)
$2.64¢1 319
#033
BEARING, RADIAL BALL (6204) (NSK)
$20.65¢10 325
#034
BEARING, RADIAL BALL (6203) (U) (NSK)
$17.85¢8 925
#035
BEARING, RADIAL BALL (6202U) (FAG)
$24.01¢12 006
#036
BEARING, RADIAL BALL (63/22)
$24.66¢12 331
#037
OIL SEAL (22X36X5)
$6.76¢3 381
#038
BOLT, FLANGE (6X14)
$1.23¢613
