FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

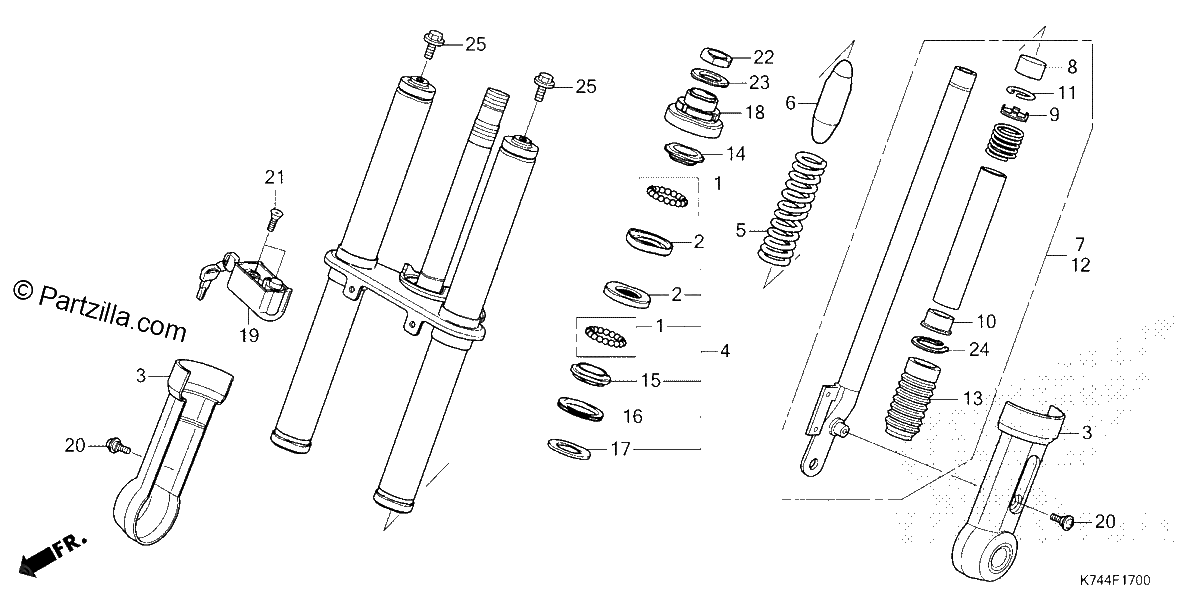

Diagrama de FRONT FORK

Repuestos

#001
06531-KGA-B90
BALL ASSY., STEEL (#8X18)
$0.55¢276
1
#002
50301-KTR-900
RACE, STEERING TOP BALL
$6.89¢3 444
1
#003
51103-K74-N00
COVER, FR. FORK
$1.70¢851
1
#004
51110-K74-N60
FORK SUB-ASSY., FR.
$70.81¢35 403
1
#005
51401-K74-N01
SPRING, FR. FORK
$3.27¢1 633
1
#006
51406-K74-N01
RUBBER, STOPPER
$3.36¢1 679
1
#007
51420-K74-N01
PIPE ASSY., R. SLIDE
$55.95¢27 974
1
#008
51423-K74-N01
PISTON, SLIDE PIPE
$3.36¢1 679
1
#009
51426-K74-N01
STOPPER, REBOUND
$0.56¢282
1
#010
51443-K74-N01
BUSH, SLIDE PIPE
$8.27¢4 134
1
#011
51446-K74-N01
RING, STOPPER
$0.30¢150
1
#012
51520-K74-N01
PIPE ASSY., L. SLIDE
$55.95¢27 974
1
#013
51611-K74-N01
BOOT, FR. FORK
$2.43¢1 213
1
#014
53211-268-010
RACE, STEERING TOP CONE
$32.80¢16 399
1
#015
53212-200-000
RACE, STEERING CONE (LOWER)
$21.14¢10 568
1
#015
53212-200-305
RACE, STEERING CONE (LOWER)
$21.14¢10 568
1
#016
53214-200-000
DUST SEAL, STEERING HEAD
$3.36¢1 679
1
#017
53215-K74-N00
WASHER, STEERING HEAD DUST SEAL
$0.41¢207
1
#018
53220-KSP-900
THREAD, STEERING HEAD TOP
$3.83¢1 915
1
#019
53600-K74-N01
LOCK, HANDLEBAR
$9.08¢4 542
1
#020
90101-GE0-000
SCREW, HINGE PATCH
$3.36¢1 679
1
#021
90164-KPL-900
SCREW, U-LOCK FLAT (6X12)
$0.29¢144
1
#022
90304-425-000
NUT, STEERING STEM
$10.43¢5 215
1
#023
90503-K74-N00
WASHER, STEERING STEM
$0.38¢190
1
#024
90652-K74-N01
CIRCLIP (INNER) (38MM)
$0.76¢380
1
#025
95701-08018-08
BOLT, FLANGE (8X18)
$1.91¢954
1
