TRUNK BOX

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

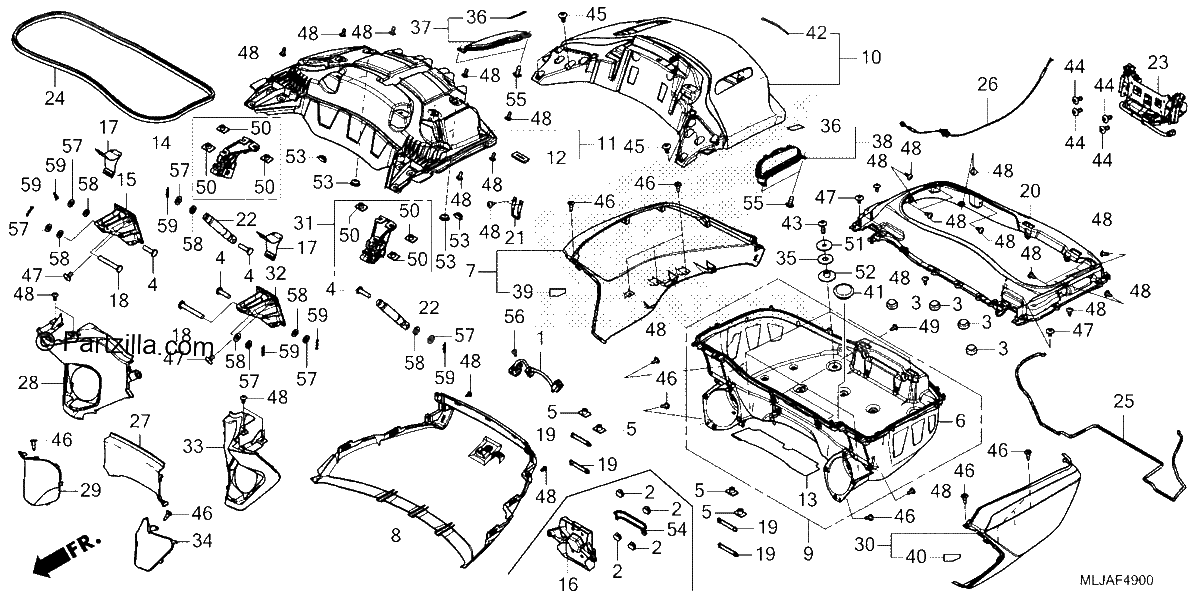

Diagrama de TRUNK BOX

Repuestos

#001
35390-MKC-A01
SWITCH ASSY., TRUNK OPENER
$57.05¢28 526
1
#002
50318-041-600
PLUG, HOLE
$2.50¢1 248
1
#003
77110-KA3-730
RUBBER, SEAT MOUNTING
$5.63¢2 818
1
#004
77156-GZ4-670
PIN, SEAT HOOK
$6.24¢3 122
1
#005
80104-KJ2-000
NUT, RR. FENDER
$4.55¢2 277
1
#006
81111-MKC-L80
BOX, TRUNK (LOWER) (INNER)
$821.18¢410 590
1
#007
81113-MKC-L00ZB
COVER Assembly., Right TRUNK SIDE (TYPE2)
$198.92¢99 458
1
#008
81115-MKC-L00ZB
COVER, CENTER TRUNK (LOWER) (TYPE2)
$270.64¢135 320
1
#009
81119-MKC-L80
BOX, TRUNK (LOWER) (INNER)
$856.54¢428 272
1
#010
81120-MLJ-AH0ZA
LID SET, TRUNK (TYPE1) (WL)
$1034.94¢517 471
1
#011
81126-MKC-L00
INNER LID, TRUNK
$150.73¢75 365
1
#012
81127-MKC-A00
MAT, LID (INNER)
$2.94¢1 472
1
#013
81128-MKC-A30
MAT, TRUNK PANEL
$32.97¢16 485
1
#014
81131-MKC-A00
HINGE A, R. TRUNK
$61.84¢30 918
1
#015
81132-MKC-A00
HINGE B, R. TRUNK
$59.88¢29 940
1
#016
81133-MKC-A30
HOLDER, TRUNK
$28.36¢14 180
1
#017
81134-MKC-A00
RUBBER, HINGE
$6.04¢3 019
1
#018
81136-MKC-A00
PIN A, TRUNK HINGE
$5.78¢2 892
1
#019
81140-MKC-A00
PLATE, TRUNK HINGE
$6.37¢3 186
1
#020
81150-MKC-L00
BOX, TRUNK (UPPER) (INNER)
$93.54¢46 771
1
#021
81151-MKC-A00
ROD, TRUNK STRIKER
$12.89¢6 446
1
#022
81155-MKC-L01
DAMPER, TRUNK LID
$76.35¢38 174
1
#023
81160-MKC-A01
CATCH, TRUNK
$589.24¢294 619
1
#024
81181-MKC-L00
RUBBER, TRUNK LID SEAL
$48.83¢24 415
1
#025
81182-MKC-L00
RUBBER, TRUNK BOX SEAL (INNER)
$38.39¢19 194
1
#026
81184-MKC-L01
CABLE, TRUNK EMERGENCY
$21.87¢10 936
1
#027
81191-MKC-L00ZA
PANEL, FR. TRUNK (LOWER) *NH1*(BLACK)
$30.07¢15 036
1
#028
81193-MKC-L00ZA
COVER, R. FR. TRUNK *NH1*(BLACK)
$47.21¢23 604
1
#029
81194-MKC-L00ZA
COVER, R. RR. SPEAKER *NH1*(BLACK)
$19.47¢9 735
1
#030
81213-MKC-L00ZB
COVER ASSY., L. TRUNK SIDE (TYPE2)
$198.92¢99 458
1
#031
81231-MKC-A00
HINGE A, L. TRUNK
$61.84¢30 918
1
#032
81232-MKC-A00
HINGE B, L. TRUNK
$59.88¢29 940
1
#033
81293-MKC-L00ZA
COVER, L. FR. TRUNK *NH1*(BLACK)
$47.21¢23 604
1
#034
81294-MKC-L00ZA
COVER, L. RR. SPEAKER *NH1*(BLACK)
$19.47¢9 735
1
#035
81356-MKC-A00
RUBBER, TRUNK MOUNTING
$2.60¢1 299
1
#036
81552-MKC-L00
SEAL, LID COVER
$9.11¢4 554
1
#037
81650-MKC-L00ZD
COVER, R. TRUNK LID (TYPE2)
$72.84¢36 421
1
#038
81655-MKC-L00ZD
COVER, L. TRUNK LID (TYPE2)
$72.84¢36 421
1
#039
81991-MKC-L00
TAPE, R. PROTECTION
$2.38¢1 190
1
#040
81992-MKC-L00
TAPE, L. PROTECTION
$2.38¢1 190
1
#042
86102-MKC-L20
EMBLEM, HONDA (100MM)
$32.33¢16 163
1
#043
90085-MAJ-A20
BOLT, SPECIAL (6X22)
$4.22¢2 110
1
#044
90112-MJK-N20
SCREW (5X12)
$2.66¢1 328
1
#045
90114-MCJ-000
SCREW, SPECIAL (6X14)
$2.98¢1 489
1
#046
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#047
90119-MEW-920
SCREW, PAN (6X11)
$2.42¢1 208
1
#048
90121-MJK-N20
SCREW, TAPPING (5X12)
$2.66¢1 328
1
#049
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#050
90303-HA0-680
NUT, SPECIAL (6X7)
$4.28¢2 139
1
#051
90506-MKC-A00
WASHER, TRUNK SET
$2.85¢1 426
1
#052
90508-MKC-A00
COLLAR, RR. TRUNK
$8.18¢4 088
1
#053
90852-KPP-T00
PLUG, HOLE
$1.91¢954
1
#054
91315-MA6-003
O-RING (81X4.5) (ARAI)
$3.50¢1 748
1
#055
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#056
93903-32180
SCREW, TAPPING (3X8)
$0.77¢385
1
#057
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#057
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#057
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#058
94111-06800
WASHER, SPRING (6MM)
$1.33¢667
1
#059
94251-06000
PIN, LOCK (6MM)
$1.23¢615
1
