RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

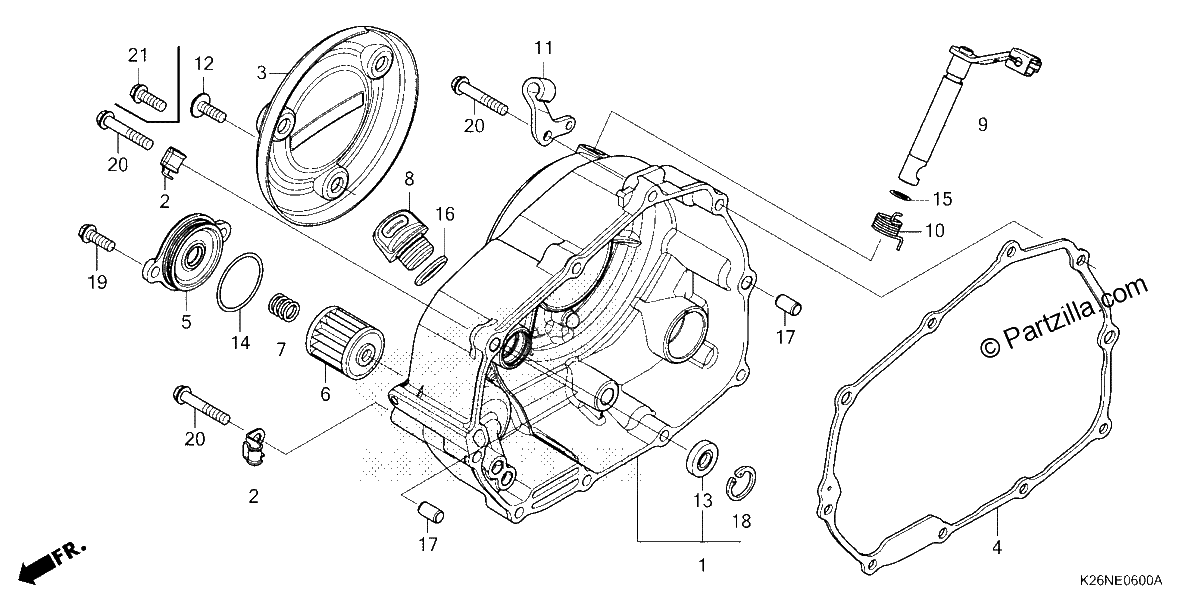

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-K26-G00
COVER, Right CRANKCASE
$80.09¢40 043
1
#002
11346-KTR-940
CLAMP A, OIL TEMP SENSOR CORD
$1.00¢500
1
#003
11370-K26-G00
PROTECTOR, Right COVER
$12.13¢6 066
1
#004
11394-K1M-T02
GASKET, Right CRANKCASE COVER (NICHIAS)
$5.95¢2 973
1
#005
15411-K26-G00
COVER, OIL FILTER
$26.73¢13 363
1
#006
15412-MGS-D21
ELEMENT, OIL FILTER
$9.11¢4 554
1
#007
15414-MEB-670
SPRING, OIL FILTER
$3.10¢1 553
1
#008
15611-K26-G00
CAP, OIL FILLER
$3.28¢1 639
1
#009
22810-K26-G00
LEVER, CLUTCH
$33.97¢16 986
1
#010
22815-166-000
SPRING, CLUTCH LEVER
$3.75¢1 874
1
#011
22821-K26-G00
RECEIVER, CLUTCH CABLE
$5.78¢2 892
1
#013
91205-KF0-003
OIL SEAL (12X20X5) (ARAI)
$3.86¢1 932
1
#014
91302-K0G-911
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
1
#015
91305-K26-900
O-RING (8.8X1.9)
$0.64¢322
1
#016
91307-KRM-840
O-RING (18X3)
$0.98¢489
1
#017
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#018
94520-22000
CIRCLIP (INNER) (22MM)
$1.41¢707
1
#019
96001-06018-00
BOLT, FLANGE (6X18)
$2.04¢1 018
1
#020
96001-06035-00
BOLT, FLANGE (6X35)
$1.66¢828
1
#021
90017-GHB-640
BOLT, FLANGE (6X18) (NSHF)
$2.62¢1 311
1
