HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

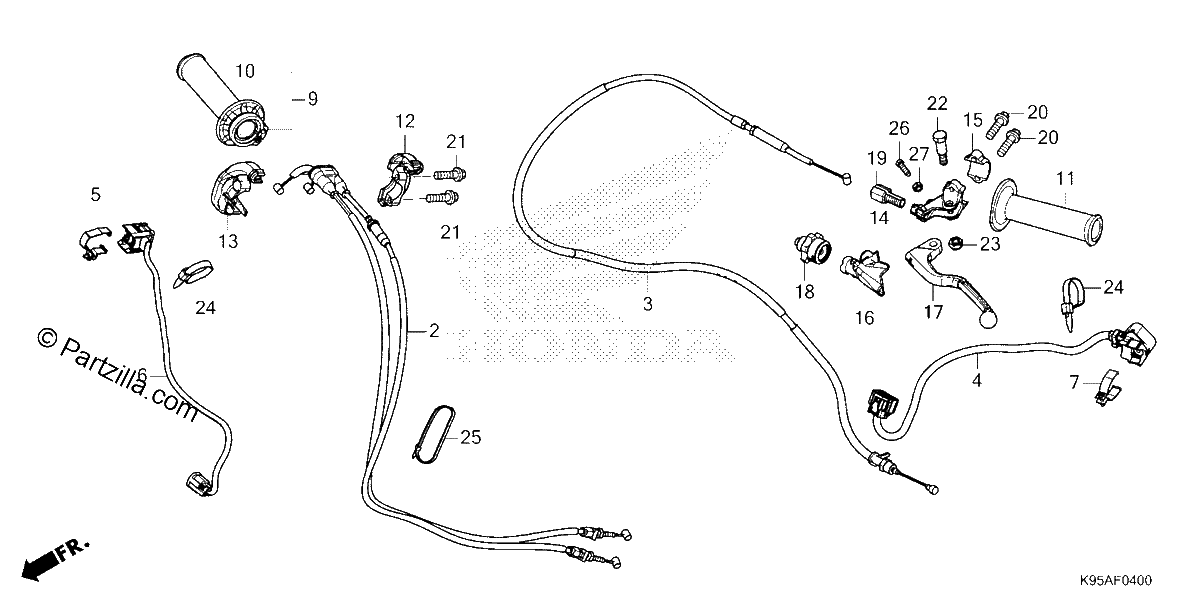

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#002
17910-MKE-AF1
CABLE, THROTTLE
$57.14¢28 572
1
#003
22870-K95-AA1
CABLE, CLUTCH
$31.57¢15 784
1
#004
35135-K95-AA1
SWITCH SET, ENGINE STOP & INDICATOR
$160.94¢80 471
1
#005
35151-MKE-AF1
BAND SET
$13.68¢6 842
1
#006
35155-K95-AA1
SWITCH SET, STARTER
$42.53¢21 263
1
#007
35181-HM8-V81
BAND SET
$10.15¢5 077
1
#009
53140-KRN-A30
GRIP, THROTTLE
$24.07¢12 035
1
#010
53165-KRN-A30
GRIP, R. HANDLE
$11.93¢5 963
1
#011
53166-KRN-A30
GRIP, L HANDLE
$11.04¢5 520
1
#012
53167-MKE-A00
HOUSING, THROTTLE (UPPER)
$30.13¢15 065
1
#013
53168-MKE-A00
HOUSING, THROTTLE (LOWER)
$30.13¢15 065
1
#014
53172-K95-AA0
BRACKET, L HANDLE LEVER
$39.62¢19 809
1
#015
53174-KCE-670
HOLDER, L. LEVER BRACKET
$14.37¢7 187
1
#016
53177-KSK-670
COVER, L. HANDLE LEVER
$10.58¢5 290
1
#017
53178-MEN-A01
LEVER, L. HANDLEBAR
$26.48¢13 242
1
#018
53179-MEN-671
DIAL, CLUTCH CABLE ADJUSTING
$12.03¢6 015
1
#019
53192-MEN-670
BOLT, WIRE ADJUSTING
$8.83¢4 416
1
#020
90020-GHB-670
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#021
90021-GHB-660
BOLT, FLANGE (6X20)
$2.68¢1 340
1
#022
90113-429-770
BOLT, HANDLE LEVER PIVOT
$6.64¢3 318
1
#023
90301-782-000
NUT, U (6MM)
$1.83¢914
1
#024
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#025
90679-SG9-E01
BAND, SUCTION HOSE (BLACK)
$4.21¢2 105
1
#026
90118-MEN-670
BOLT, LEVER ADJUSTING
$4.34¢2 168
1
#027
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#027
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
