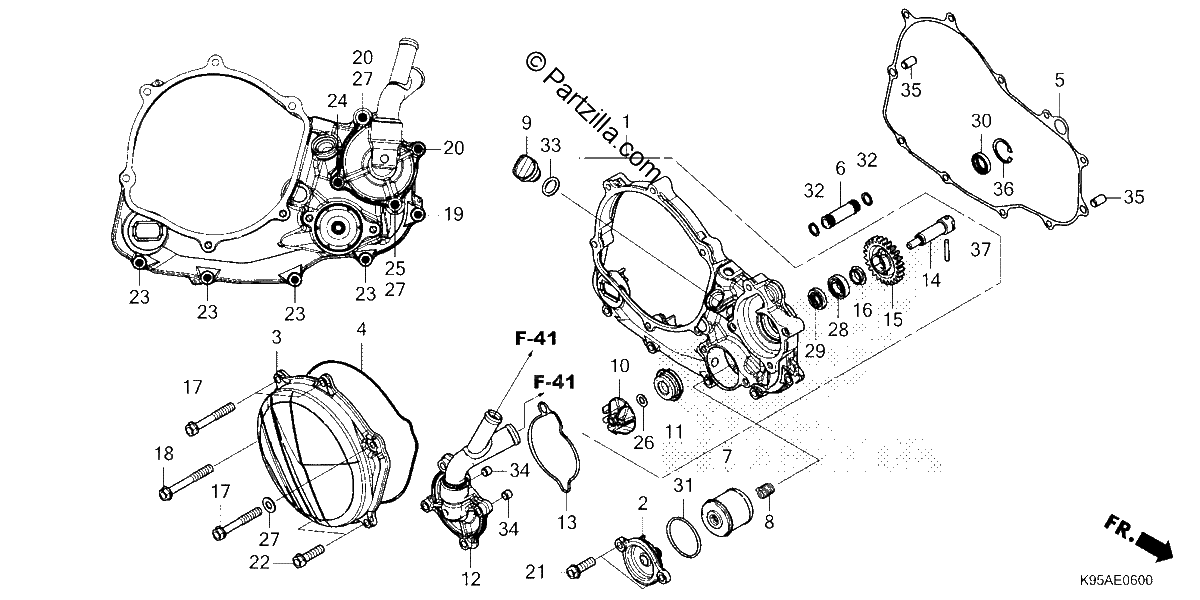

RIGHT CRANKCASE COVER WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER Assembly., Right CRANKCASE
$458.49¢229 244
#002
COVER, OIL FILTER
$48.27¢24 138
#003
COVER, CLUTCH
$173.66¢86 831
#004
GASKET, CLUTCH COVER
$14.15¢7 075
#005
GASKET, R. COVER
$32.94¢16 469
#006
PIPE, OIL PASSAGE
$18.43¢9 213
#007
FILTER, ENGINE OIL
$9.11¢4 556
#008
SPRING, OIL FILTER
$3.38¢1 688
#009
CAP, OIL FILLER
$20.94¢10 469
#010
IMPELLER, WATER PUMP
$59.06¢29 531
#011
SEAL, MECHANICAL
$53.86¢26 931
#012
COVER, WATER PUMP
$107.50¢53 750
#013
GASKET, WATER PUMP
$6.04¢3 019
#014
SHAFT, WATER PUMP
$80.94¢40 469
#015
GEAR, WATER PUMP DRIVEN (24T)
$25.55¢12 775
#016
COLLAR
$3.36¢1 681
#017
BOLT, FLANGE (6X50)
$3.65¢1 825
#018
BOLT, FLANGE (6X55)
$3.84¢1 919
#019
BOLT, FLANGE (6X35)
$3.20¢1 600
#020
BOLT, FLANGE (6X45)
$3.49¢1 744
#021
BOLT, FLANGE (6X20)
$2.99¢1 494
#022
BOLT, FLANGE (6X20)
$2.99¢1 494
#023
BOLT, FLANGE (6X28)
$2.99¢1 494
#024
BOLT, FLANGE (6X30)
$3.05¢1 525
#025
BOLT, FLANGE (6X25)
$2.91¢1 456
#026
WASHER, SEALING (7MM)
$3.43¢1 713
#027
WASHER, SEALING (6.5MM)
$3.65¢1 825
#028
BEARING, BALL (12X24X6)
$10.32¢5 163
#029
OIL SEAL (12X22X5) (ARAI)
$4.91¢2 456
#029
OIL SEAL (12X22X5)
$4.91¢2 456
#030
OIL SEAL (14X22X5) (ARAI)
$3.65¢1 825
#031
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
#032
O-RING (9.6X1.9) (ARAI)
$2.41¢1 206
#033
D-RING (14X3)
$3.65¢1 825
#034
PIN, DOWEL (8X7)
$2.88¢1 438
#035
PIN, DOWEL (8X14)
$2.89¢1 444
#036
CIRCLIP (INNER) (24MM)
$1.56¢781
#037
ROLLER (4X23.8)
$1.00¢500
