FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

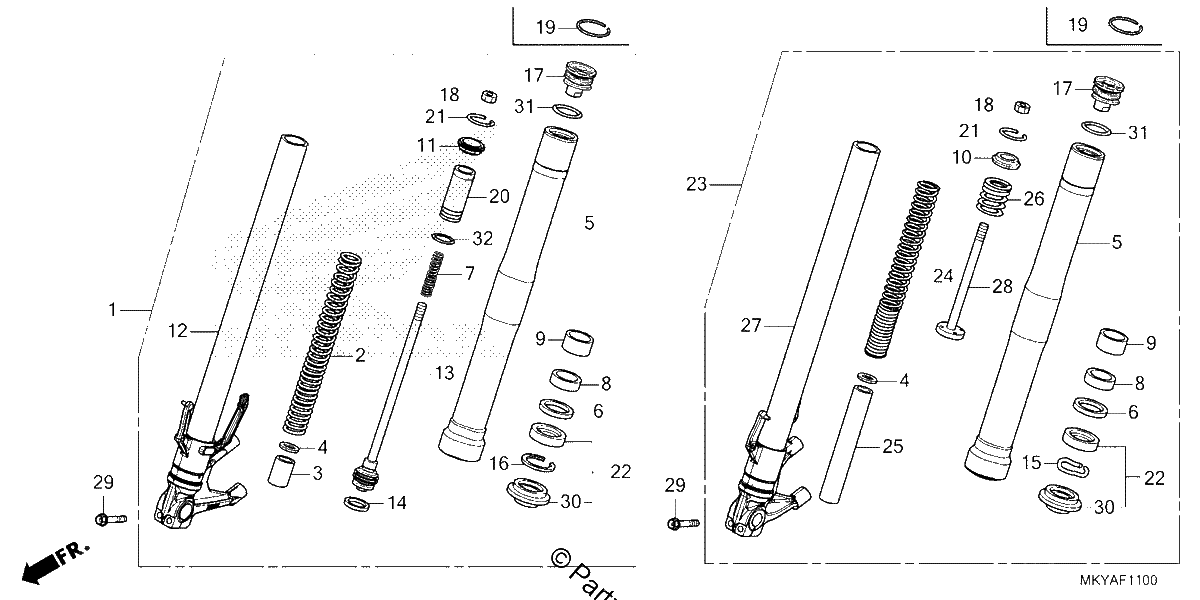

Diagrama de FRONT FORK

Repuestos

#001
51400-MKY-E21
FORK Assembly., Right Front.
$642.28¢321 138
1
#002
51401-MKY-E01
SPRING, Right Front FORK
$42.19¢21 094
1
#003
51402-MKY-E01
COLLAR, SPRING
$2.24¢1 119
1
#004
51404-MKP-DN1
JOINT, SPRING
$4.04¢2 019
1
#005
51410-MKN-D51
TUBE (OUTER)
$326.27¢163 138
1
#006
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#007
51412-MKY-D51
SPRING, Right REBOUND
$3.52¢1 763
1
#008
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#009
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#010
51419-K94-T01
SEAT, STOPPER
$11.90¢5 950
1
#011
51419-MKY-D51
SEAT, R. STOPPER
$8.26¢4 131
1
#012
51425-MKY-E01
PIPE, Right SLIDE
$388.79¢194 394
1
#013
51426-MKY-E01
ROD, PISTON
$64.40¢32 200
1
#014
51437-MKY-D51
RING, PISTON
$1.79¢894
1
#015
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#016
51447-MB4-003
CIRCLIP (INNER)
$5.64¢2 819
1
#017
51450-K98-J61
BOLT, Front FORK
$100.29¢50 144
1
#018
51451-MKY-D51
NUT, HEX.
$17.63¢8 813
1
#020
51455-MKY-E01
CASE, ROD GUIDE
$62.59¢31 294
1
#021
51456-K94-T01
RING, STOPPER
$2.88¢1 438
1
#022
51490-MKL-D81
SEAL SET, FR. FORK
$29.18¢14 588
1
#023
51500-MKY-E21
FORK Assembly., L Front.
$599.59¢299 794
1
#024
51501-MKY-E01
SPRING, L Front FORK
$33.20¢16 600
1
#025
51502-MKY-E01
COLLAR B, SPRING
$6.66¢3 331
1
#026
51512-MKY-D51
SPRING, L. REBOUND
$5.83¢2 913
1
#027
51525-MKY-E01
PIPE, L SLIDE
$391.09¢195 544
1
#028
51526-MKY-D51
ROD
$17.89¢8 944
1
#029
90107-MGE-000
BOLT, FLANGE (8X40)
$3.43¢1 713
1
#030
91251-MKL-D81
DUST SEAL
$12.39¢6 194
1
#031
91258-MEE-D01
O-RING (39.7X2.4)
$2.73¢1 363
1
#032
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
