RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

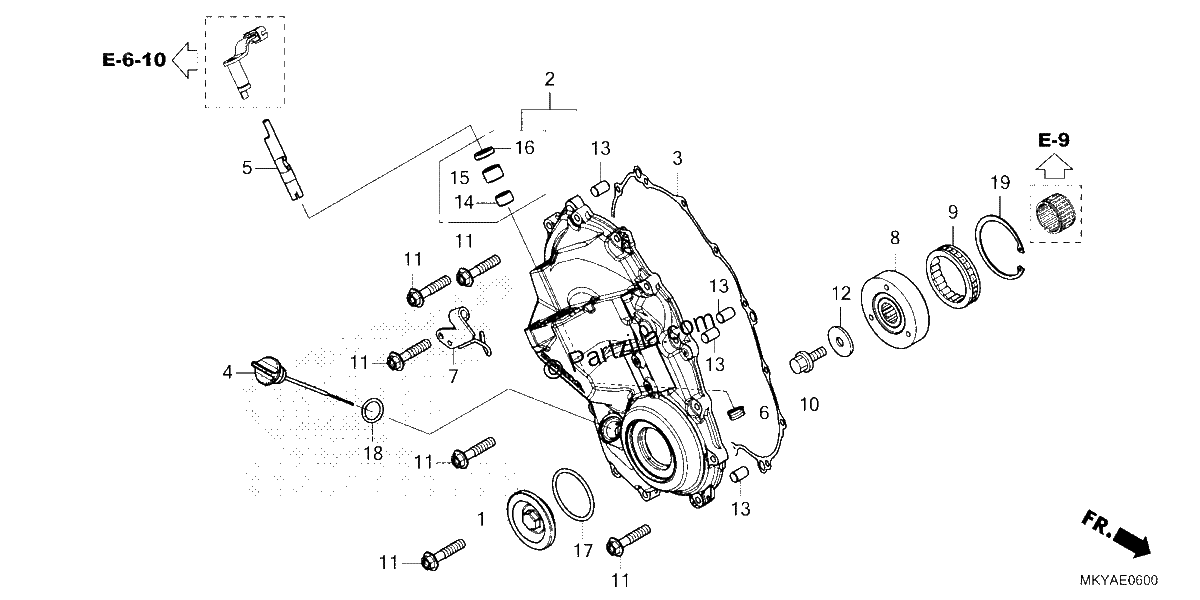

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11332-MGZ-J00
CAP (45MM)
$25.86¢12 931
1
#002
11335-MKY-EA0
COVER, Right.
$112.73¢56 363
1
#003
11394-MKY-E81
GASKET, Right COVER
$21.25¢10 625
1
#004
15650-MKN-D10
DIPSTICK, OIL
$9.20¢4 600
1
#005
22814-MKY-E80
LEVER (LOWER)
$12.07¢6 038
1
#006
22815-MFL-000
SPRING, CLUTCH LEVER
$3.65¢1 825
1
#007
22821-MKY-E80
RECEIVER, CLUTCH CABLE
$7.91¢3 956
1
#008
28115-MKY-D10
CLUTCH OUTER, STARTING
$150.86¢75 431
1
#009
28125-MJE-D01
CLUTCH, ONE-WAY
$107.85¢53 925
1
#010
90013-430-000
BOLT, SPECIAL (10X25)
$7.84¢3 919
1
#011
90028-GHB-690
BOLT, FLANGE (6X28) (S-NSHF)
$1.41¢706
1
#012
90405-MJE-D00
WASHER (10.5X31.8)
$5.51¢2 756
1
#013
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#014
91053-MFJ-D01
BEARING, NEEDLE (12X16X10)
$5.17¢2 588
1
#015
91056-HP5-601
BEARING, NEEDLE (12X18X12)
$7.34¢3 669
1
#016
91205-KF0-003
OIL SEAL (12X20X5) (ARAI)
$4.20¢2 100
1
#017
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#018
91307-KF0-003
O-RING (18X3) (ARAI)
$3.65¢1 825
1
#019
94520-63150
CIRCLIP (INNER) (63MM)
$4.74¢2 369
1
