EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

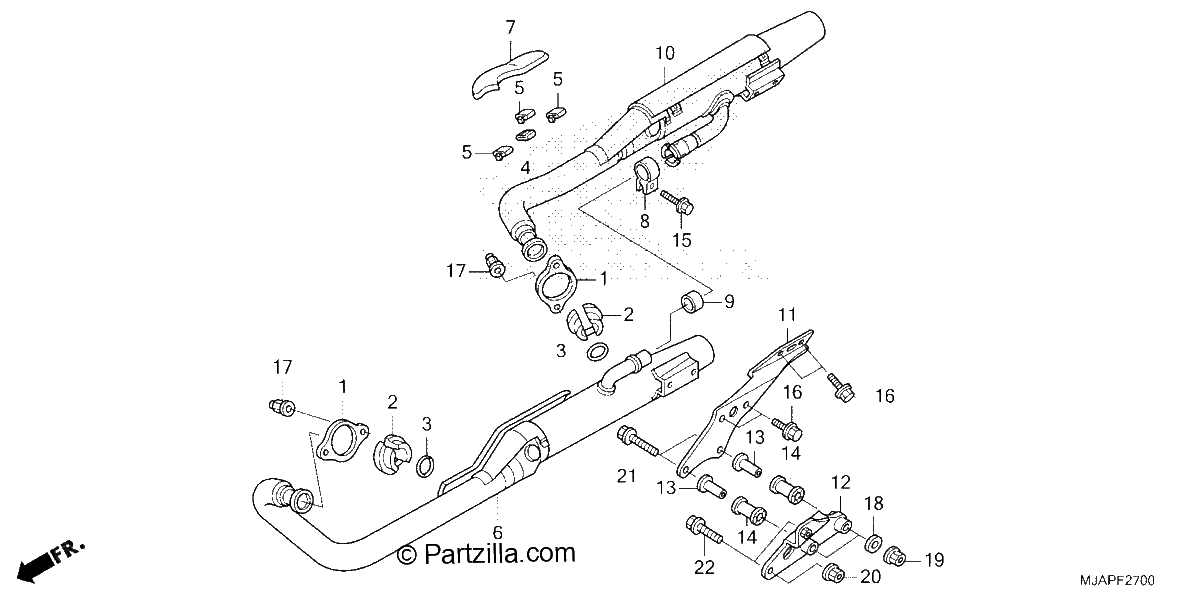

Diagrama de EXHAUST MUFFLER

Repuestos

#001
18231-MJA-AT1
JOINT, EX. PIPE
$16.07¢8 033
1
#002
18233-MJA-AT0
COLLAR, EX. PIPE JOINT
$14.48¢7 239
1
#003
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#004
18293-MFE-B00
RUBBER, PROTECTOR GASKET
$3.53¢1 765
1
#005
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#006
18300-MJA-AT1
MUFFLER, FR. EX.
$1670.19¢835 095
1
#007
18315-MJA-AT1
PROTECTOR, RR. EX.
$94.21¢47 104
1
#008
18374-ML4-003
BAND, L EX PIPE
$17.49¢8 746
1
#009
18391-ML8-000
GASKET, MUFFLER
$9.90¢4 951
1
#010
18400-MJA-AT1
MUFFLER, RR. EX.
$1670.19¢835 095
1
#011
18415-MFE-670
STAY, MUFFLER
$61.97¢30 987
1
#012
18455-MFE-670
BRACKET, MUFFLER
$122.87¢61 433
1
#013
50607-KK6-000
COLLAR, MOUNTING RUBBER
$9.82¢4 910
1
#014
50608-KK6-000
RUBBER, MUFFLER MOUNTING
$8.69¢4 347
1
#015
90125-MGR-670
BOLT, FLANGE (8X32)
$3.60¢1 800
1
#016
90166-S87-A00
BOLT, FLANGE (8X16)
$0.83¢414
1
#017
90304-ME1-670
NUT, CAP (8MM)
$6.64¢3 318
1
#018
90534-011-000
WASHER (8.3MM)
$1.75¢874
1
#019
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#020
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#020
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#021
95701-08055-07
BOLT, FLANGE (8X55)
$2.18¢1 092
1
#022
95701-10050-07
BOLT, FLANGE (10X50)
$2.18¢1 092
1
