MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

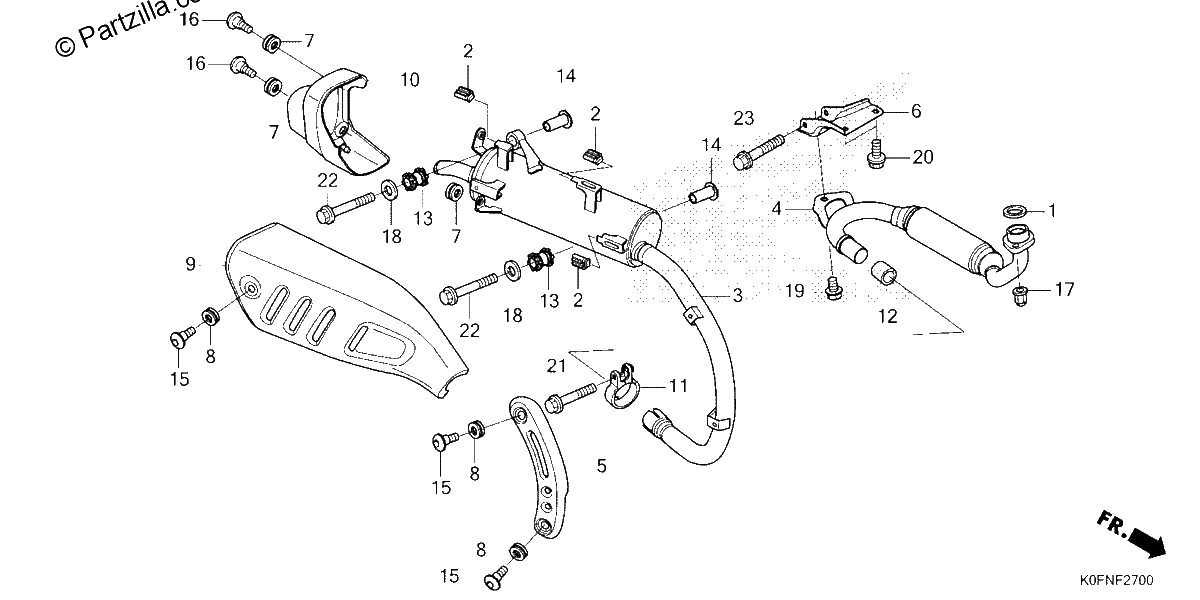

Diagrama de MUFFLER

Repuestos

#001
18291-GE2-920
GASKET, EX. PIPE
$7.22¢3 611
1
#002
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#003
18310-K0F-T61
MUFFLER, EX.
$309.32¢154 658
1
#004
18320-K0F-T61
PIPE, EX.
$453.19¢226 596
1
#005
18325-K0F-T00
PROTECTOR, EX. PIPE
$36.45¢18 228
1
#006
18330-K0F-T60
STAY, EX. PIPE
$24.32¢12 161
1
#007
18345-K15-920
RUBBER, MOUNTING
$3.36¢1 679
1
#008
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#009
18356-K0F-T00
PROTECTOR, MUFFLER
$128.04¢64 021
1
#010
18358-K0F-T60
COVER, TAIL CAP
$9.07¢4 537
1
#011
18371-K26-900
BAND, MUFFLER
$43.88¢21 942
1
#012
18391-HB7-000
GASKET, MUFFLER
$11.98¢5 991
1
#013
18421-K0F-T60
RUBBER, MUFFLER MOUNTING
$2.38¢1 190
1
#014
18422-K26-900
COLLAR, MUFFLER MOUNTING
$4.86¢2 432
1
#015
90113-GFP-B00
SCREW, PAN (6X12)
$3.99¢1 995
1
#016
90113-K15-920
SCREW, PAN (6X14)
$1.68¢839
1
#017
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#018
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#019
95701-08012-08
BOLT, FLANGE (8X12)
$1.98¢989
1
#020
95701-08018-08
BOLT, FLANGE (8X18)
$1.91¢954
1
#021
95701-08032-02
BOLT, FLANGE (8X32)
$1.54¢771
1
#022
95701-08040-07
BOLT, FLANGE (8X40)
$2.75¢1 374
1
#023
95701-08060-08
BOLT, FLANGE (8X60)
$2.90¢1 449
1
