RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

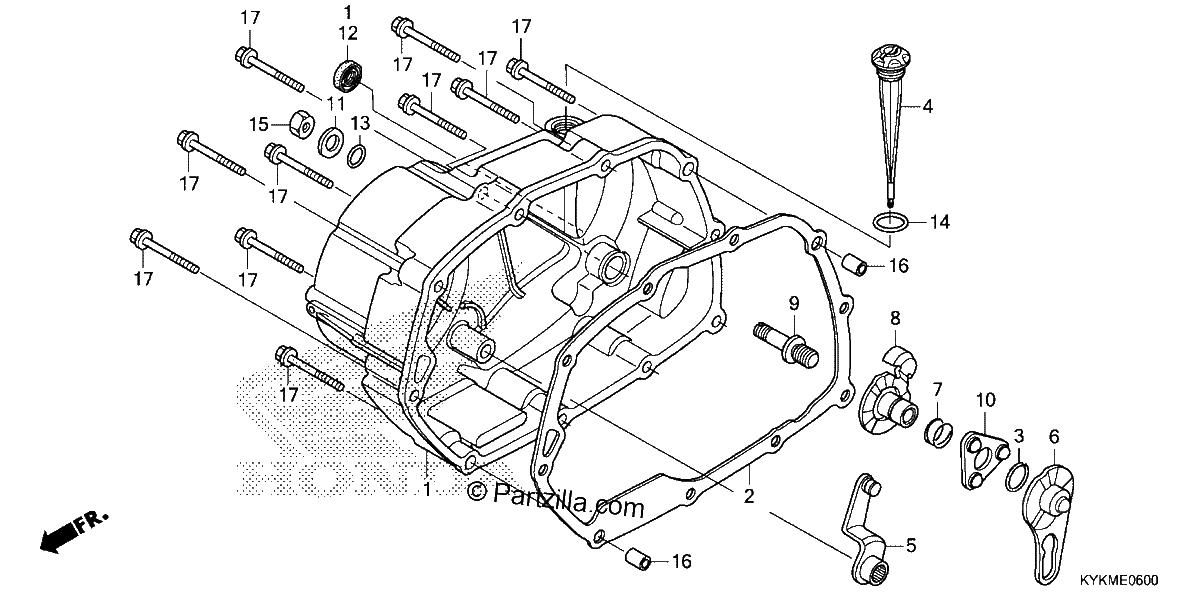

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-KWW-C50
COVER, R. CRANKCASE
$168.27¢84 134
1
#002
11394-K58-TC0
GASKET, Right CRANKCASE COVER
$13.36¢6 681
1
#003
13115-GN5-910
CLIP, PISTON PIN (13MM)
$0.91¢454
1
#004
15650-KYK-910
DIPSTICK, OIL
$14.90¢7 452
1
#005
22810-KVR-C00
LEVER, CLUTCH
$50.00¢25 001
1
#006
22823-KWW-740
PLATE, CLUTCH LIFTER CAM
$28.05¢14 024
1
#007
22825-KWB-600
SPRING, CAM PLATE SIDE
$0.70¢351
1
#007
22825-KWW-740
SPRING, CAM PLATE SIDE
$0.70¢351
1
#008
22830-KWB-600
PLATE, CLUTCH LIFTER
$15.86¢7 929
1
#008
22830-KWW-740
PLATE, CLUTCH LIFTER
$15.86¢7 929
1
#009
22846-KPH-C00
BOLT, CLUTCH ADJUSTING
$5.07¢2 536
1
#010
22860-KWB-601
RETAINER, BALL
$6.79¢3 393
1
#010
22860-KWW-740
RETAINER, BALL
$6.79¢3 393
1
#011
90485-KVR-C00
WASHER (8MM)
$3.33¢1 667
1
#012
91202-KRS-971
OIL SEAL (13.8X24X5)
$1.00¢500
1
#013
91303-001-010
O-RING (8MM)
$2.86¢1 432
1
#014
91307-KRM-840
O-RING (18X3)
$0.98¢489
1
#015
94030-08000
NUT, HEX. (8MM)
$1.26¢633
1
#016
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#017
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
