MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

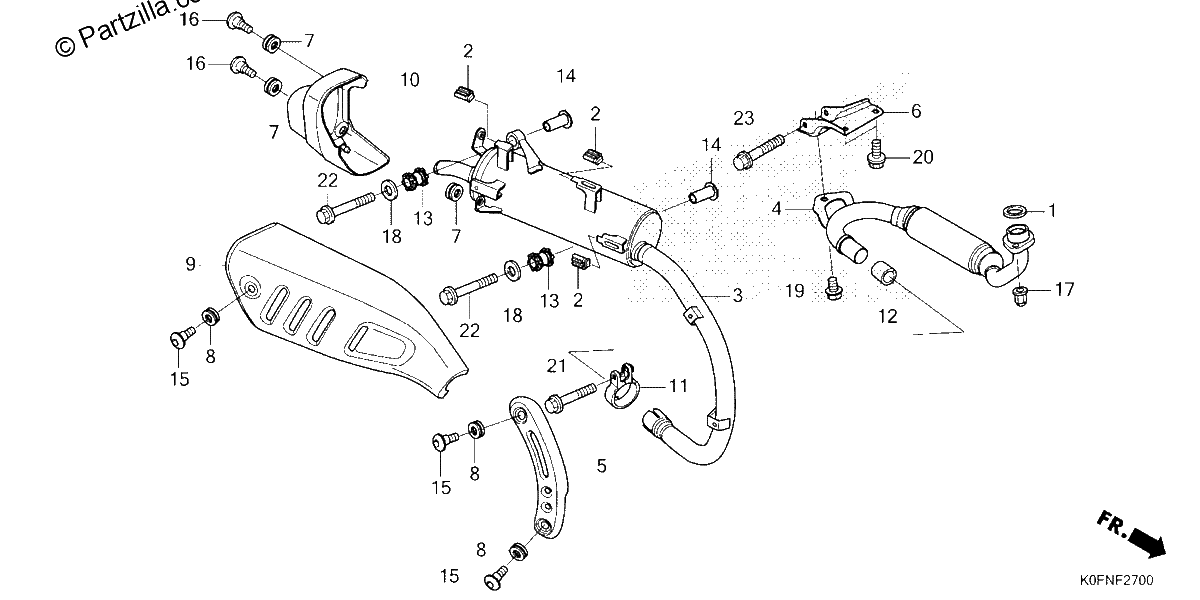

Diagrama de MUFFLER

Repuestos

#001
18291-GE2-920
GASKET, EX. PIPE
$7.85¢3 925
1
#002
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#003
18310-K0F-T61
MUFFLER, EX.
$336.21¢168 106
1
#004
18320-K0F-T61
PIPE, EX.
$492.60¢246 300
1
#005
18325-K0F-T00
PROTECTOR, EX. PIPE
$39.63¢19 813
1
#006
18330-K0F-T60
STAY, EX. PIPE
$26.44¢13 219
1
#007
18345-K15-920
RUBBER, MOUNTING
$3.65¢1 825
1
#008
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#009
18356-K0F-T00
PROTECTOR, MUFFLER
$139.18¢69 588
1
#010
18358-K0F-T60
COVER, TAIL CAP
$9.86¢4 931
1
#011
18371-K26-900
BAND, MUFFLER
$47.70¢23 850
1
#012
18391-HB7-000
GASKET, MUFFLER
$13.03¢6 513
1
#013
18421-K0F-T60
RUBBER, MUFFLER MOUNTING
$2.59¢1 294
1
#014
18422-K26-900
COLLAR, MUFFLER MOUNTING
$5.29¢2 644
1
#015
90113-GFP-B00
SCREW, PAN (6X12)
$4.34¢2 169
1
#016
90113-K15-920
SCREW, PAN (6X14)
$1.82¢913
1
#017
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#018
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#019
95701-08012-08
BOLT, FLANGE (8X12)
$2.15¢1 075
1
#020
95701-08018-08
BOLT, FLANGE (8X18)
$2.07¢1 037
1
#021
95701-08032-02
BOLT, FLANGE (8X32)
$1.68¢838
1
#022
95701-08040-07
BOLT, FLANGE (8X40)
$2.99¢1 494
1
#023
95701-08060-08
BOLT, FLANGE (8X60)
$3.15¢1 575
1
