FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

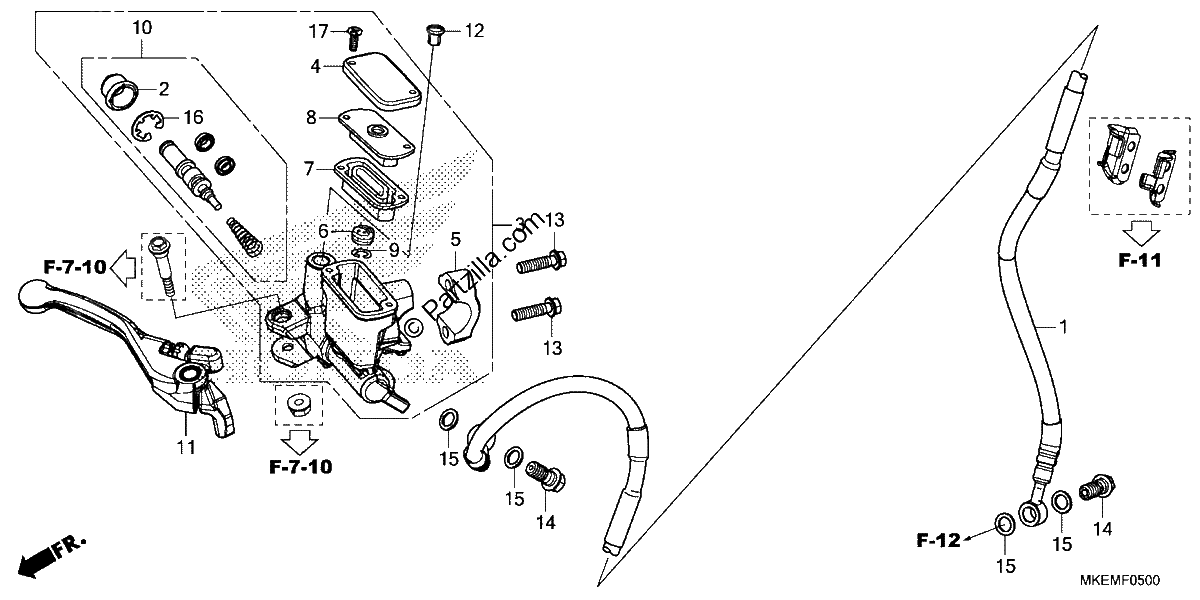

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
45125-MKE-A51
HOSE, Front BRAKE
$166.72¢83 358
1
#002
45504-410-003
BOOT
$13.10¢6 549
1
#003
45510-MKE-A41
MASTER CYLINDER SUB-Assembly., Front.
$270.40¢135 200
1
#004
45513-MKE-A51
CAP, MASTER CYLINDER
$30.60¢15 301
1
#005
45517-GW0-751
HOLDER, MASTER CYLINDER
$13.25¢6 624
1
#006
45518-KA3-731
SEPARATOR
$13.02¢6 509
1
#007
45520-GW0-911
DIAPHRAGM
$8.13¢4 065
1
#008
45521-GW0-911
PLATE, DIAPHRAGM
$6.39¢3 197
1
#009
45523-KA3-731
RING
$3.36¢1 679
1
#010
45530-MKE-A51
MASTER CYLINDER SET
$53.88¢26 939
1
#011
53170-MKE-A51
LEVER Assembly., Right HANDLE
$47.54¢23 771
1
#012
53174-116-670
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#012
53174-463-770
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#013
90020-GHB-670
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#014
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#015
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#016
90651-K03-M61
CIRCLIP, INNER (18.8MM)
$0.80¢402
1
#017
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#017
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
