FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

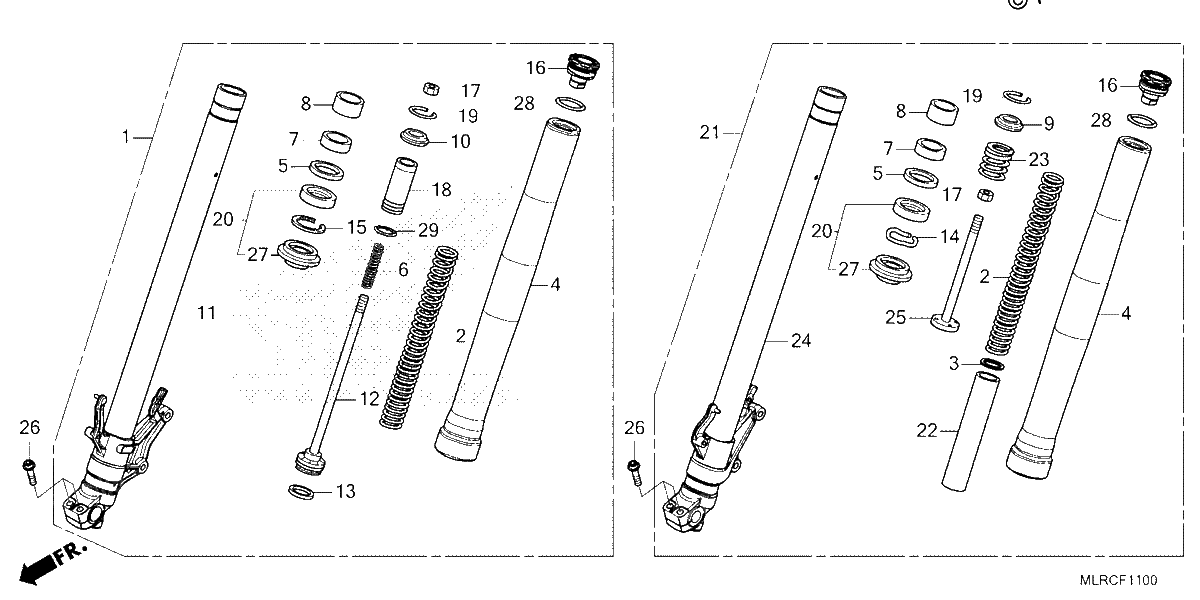

Diagrama de FRONT FORK

Repuestos

#001
51400-MLR-D81
FORK Assembly., Right Front.
$452.15¢226 075
1
#002
51401-MKP-DQ1
SPRING, FR. FORK
$28.56¢14 281
1
#003
51404-MKP-DN1
JOINT, SPRING
$4.04¢2 019
1
#004
51410-MLR-D81
TUBE (OUTER) (BLACK)
$332.82¢166 413
1
#005
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#006
51412-MKP-DQ1
SPRING, R. REBOUND
$3.50¢1 750
1
#007
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#008
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#009
51419-K94-T01
SEAT, STOPPER
$11.90¢5 950
1
#010
51419-MKY-D51
SEAT, R. STOPPER
$8.26¢4 131
1
#011
51425-MKP-DQ1
PIPE, R. SLIDE
$396.19¢198 094
1
#012
51426-MLR-D81
ROD, PISTON
$74.40¢37 200
1
#013
51437-K98-E21
RING, PISTON
$4.81¢2 406
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#015
51447-MB4-003
CIRCLIP (INNER)
$5.64¢2 819
1
#016
51450-K98-J61
BOLT, Front FORK
$100.29¢50 144
1
#017
51451-MKY-D51
NUT, HEX.
$17.63¢8 813
1
#018
51455-K0A-EB1
CASE, ROD GUIDE
$55.90¢27 950
1
#019
51456-K94-T01
RING, STOPPER
$2.88¢1 438
1
#020
51490-MKL-D81
SEAL SET, FR. FORK
$29.18¢14 588
1
#021
51500-MLR-D81
FORK Assembly., L Front.
$417.27¢208 638
1
#022
51511-MKP-DQ1
COLLAR B, SPRING
$17.44¢8 719
1
#023
51512-MKP-DQ1
SPRING, L. REBOUND
$5.39¢2 694
1
#024
51525-MKP-DQ1
PIPE, L. SLIDE
$384.84¢192 419
1
#025
51526-MKP-DQ1
ROD
$63.78¢31 888
1
#026
90101-MKP-DQ0
BOLT, FLANGE SOCKET (8X35)
$2.31¢1 156
1
#027
91251-MKL-D81
DUST SEAL
$12.39¢6 194
1
#028
91258-MEE-D01
O-RING (39.7X2.4)
$2.73¢1 363
1
#029
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
