TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

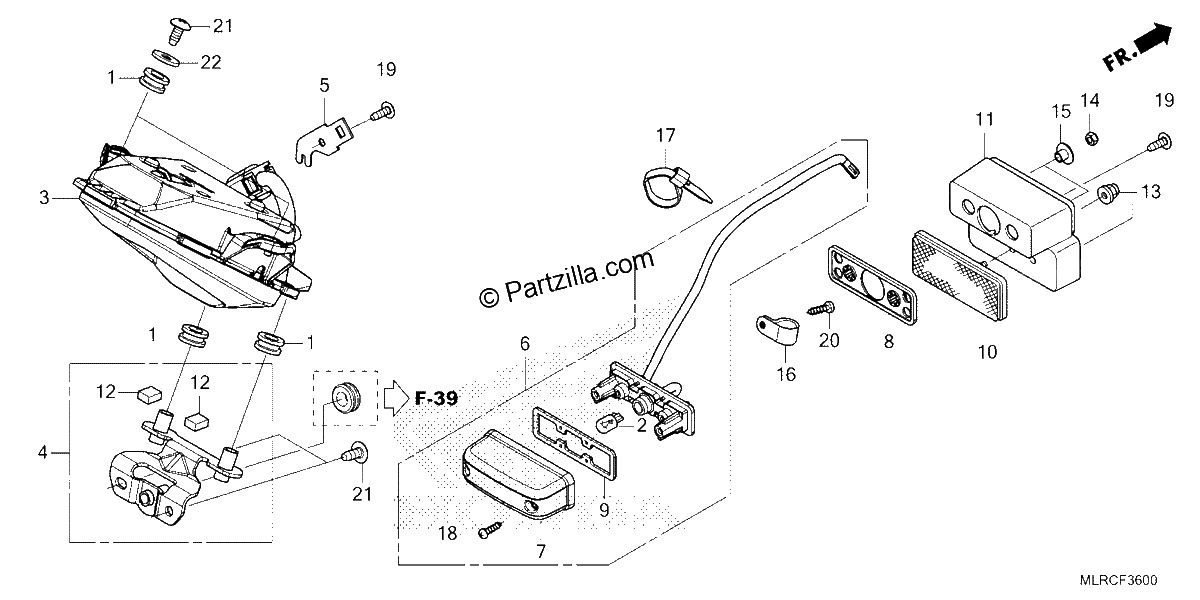

Diagrama de TAILLIGHT

Repuestos

#001
19639-GBC-000
RUBBER, MOUNTING
$1.80¢900
1
#002
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#003
33701-MLR-D01
TAILLIGHT UNIT
$143.52¢71 762
1
#004
33702-MLR-D80
STAY, TAILLIGHT
$11.85¢5 925
1
#005
33703-MLR-D80
STAY, CONNECTOR
$1.25¢625
1
#006
33720-MGZ-305
LIGHT ASSY., LICENSE (12V 5W) (COO)
$66.92¢33 463
1
#006
33720-MGZ-A01
LIGHT ASSY., LICENSE (12V 5W)
$66.92¢33 463
1
#007
33722-K26-305
COVER, LICENSE (COO)
$13.20¢6 600
1
#007
33722-KWN-901
COVER, LICENSE
$13.20¢6 600
1
#008
33728-KPP-T00
RUBBER, LICENSE LIGHT
$5.51¢2 756
1
#009
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#010
33741-KPL-902
REFLECTOR, REFLEX
$8.94¢4 469
1
#011
80201-KYJ-920
BRACKET, LICENSE LIGHT
$9.95¢4 975
1
#012
83266-MKF-D40
RUBBER, PROTECTOR
$2.52¢1 263
1
#013
90301-KWN-901
NUT, U (5MM)
$0.86¢431
1
#014
90302-KVB-T01
NUT, U (5MM)
$2.31¢1 156
1
#015
90505-MGZ-A00
COLLAR
$2.24¢1 119
1
#016
90628-750-000
CLIP (14MM)
$2.84¢1 419
1
#017
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#018
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#019
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#020
93903-24420
SCREW, TAPPING (4X16)
$1.16¢581
1
#021
93903-25220
SCREW, TAPPING (5X12)
$1.16¢581
1
#022
94103-05800
WASHER, PLAIN (5MM)
$1.27¢638
1
