EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

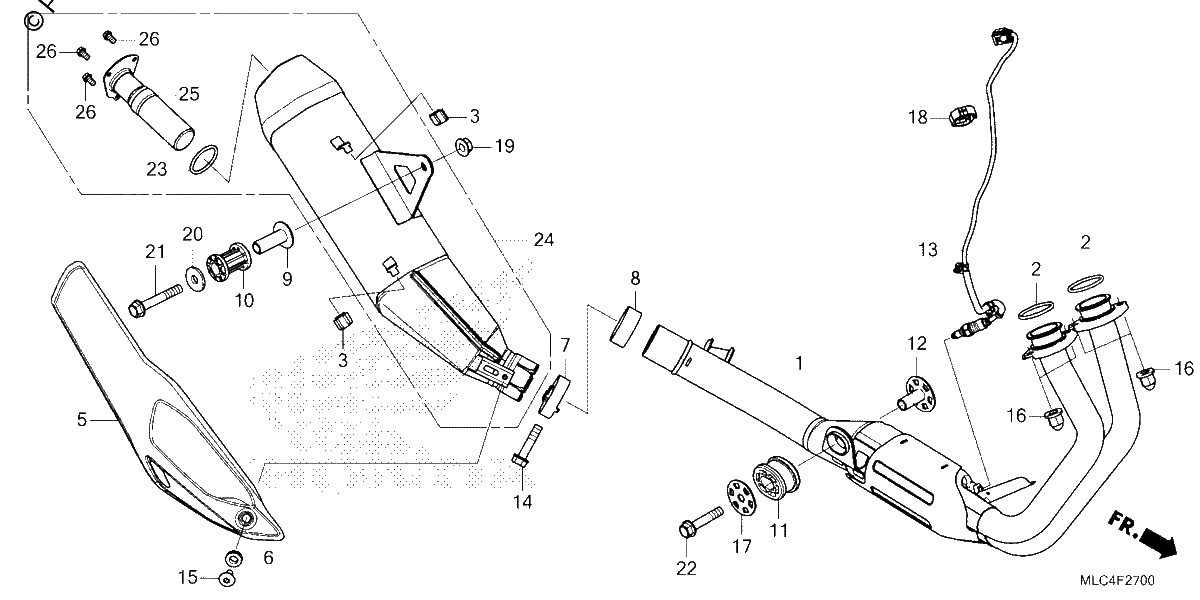

Diagrama de EXHAUST MUFFLER

Repuestos

#001
18150-MLC-D02
PIPE, EX.
$2281.11¢1 140 556
1
#002
18291-MM8-880
GASKET, EX PIPE
$8.66¢4 331
1
#003
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#005
18340-MLB-D00
COVER, MUFFLER
$104.75¢52 375
1
#006
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#007
18371-MLB-D00
BAND, MUFFLER
$23.32¢11 663
1
#008
18391-MEL-000
GASKET, MUFFLER
$25.67¢12 837
1
#009
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$6.08¢3 038
1
#010
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.40¢1 200
1
#011
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$23.79¢11 894
1
#012
18423-MGC-N20
COLLAR, EX. PIPE MOUNTING
$8.21¢4 106
1
#013
36533-MLB-D01
SENSOR, AIR FUEL RATIO
$195.78¢97 888
1
#014
90103-KCM-620
BOLT, FLANGE (8X35)
$2.03¢1 013
1
#015
90113-GFP-B00
SCREW, PAN (6X12)
$4.34¢2 169
1
#016
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#017
90501-MGC-N20
WASHER (8.5X38)
$4.17¢2 088
1
#018
90690-MEF-800
CLAMP, HARNESS
$1.68¢838
1
#019
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#020
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#021
96300-08050-04
BOLT, FLANGE (8X50)
$2.30¢1 150
1
#022
96400-08040-04
BOLT, FLANGE (8X40)
$1.54¢769
1
#023
18291-MEB-670
GASKET, EX. PIPE
$5.96¢2 981
1
#024
18300-MLC-A20
MUFFLER ASSY., EX.
$601.60¢300 800
1
#025
18317-MLC-A00
ARRESTER, SPARK
$68.24¢34 119
1
#026
90101-KCE-000
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#026
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
