GENERATOR COVER LEFT REAR COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

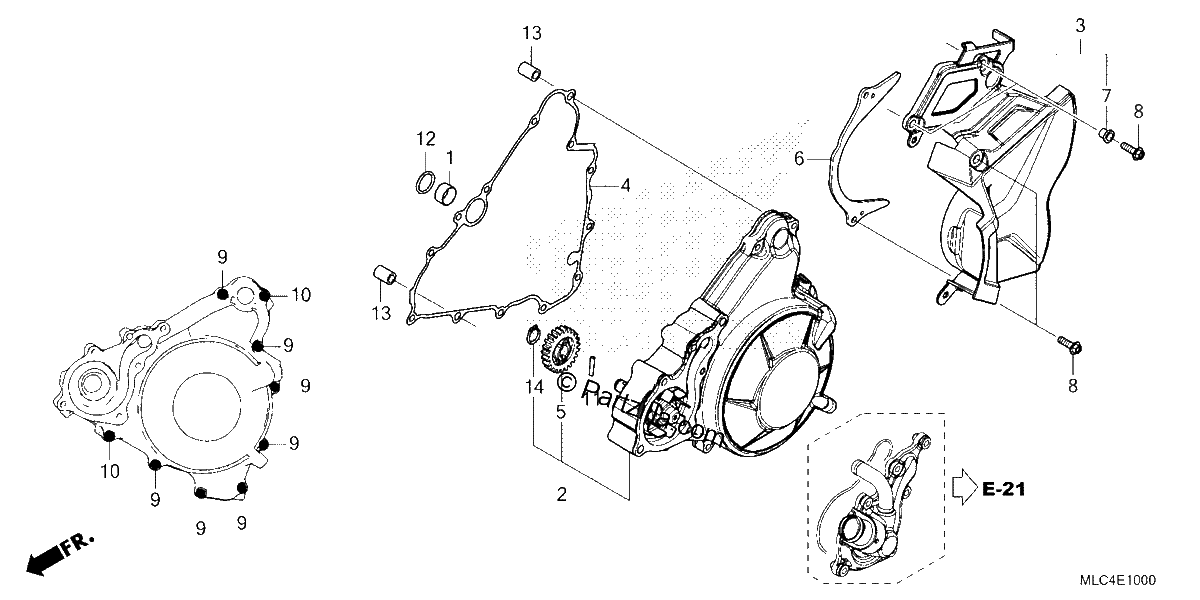

Diagrama de GENERATOR COVER LEFT REAR COVER

Repuestos

#001
11102-MKE-A00
COLLAR, WATER PASS
$5.28¢2 639
1
#002
11320-MLB-D00
COVER ASSY., ALTERNATOR
$246.81¢123 407
1
#003
11351-MLB-D00
COVER, L. RR.
$45.61¢22 804
1
#004
11392-MLB-D01
GASKET, ALTERNATOR COVER
$18.43¢9 217
1
#005
19246-MLB-D00
GEAR, OIL PUMP DRIVEN (23T)
$51.92¢25 961
1
#006
23812-MLB-D00
GUIDE, DRIVE CHAIN
$10.95¢5 474
1
#007
61107-MCR-D00
COLLAR, FR. FENDER
$2.66¢1 328
1
#008
90026-GHB-660
BOLT, FLANGE (6X20)
$2.75¢1 374
1
#009
90028-GHB-690
BOLT, FLANGE (6X28) (S-NSHF)
$1.30¢650
1
#010
90028-GHB-720
BOLT, FLANGE (6X35) (S-NSHF)
$1.30¢650
1
#011
91101-HA2-300
PIN (4X20)
$1.38¢690
1
#012
91302-MKE-A70
O-RING (2.4X19)
$2.27¢1 133
1
#013
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#014
94510-11000
CIRCLIP (OUTER) (11MM)
$0.85¢426
1
