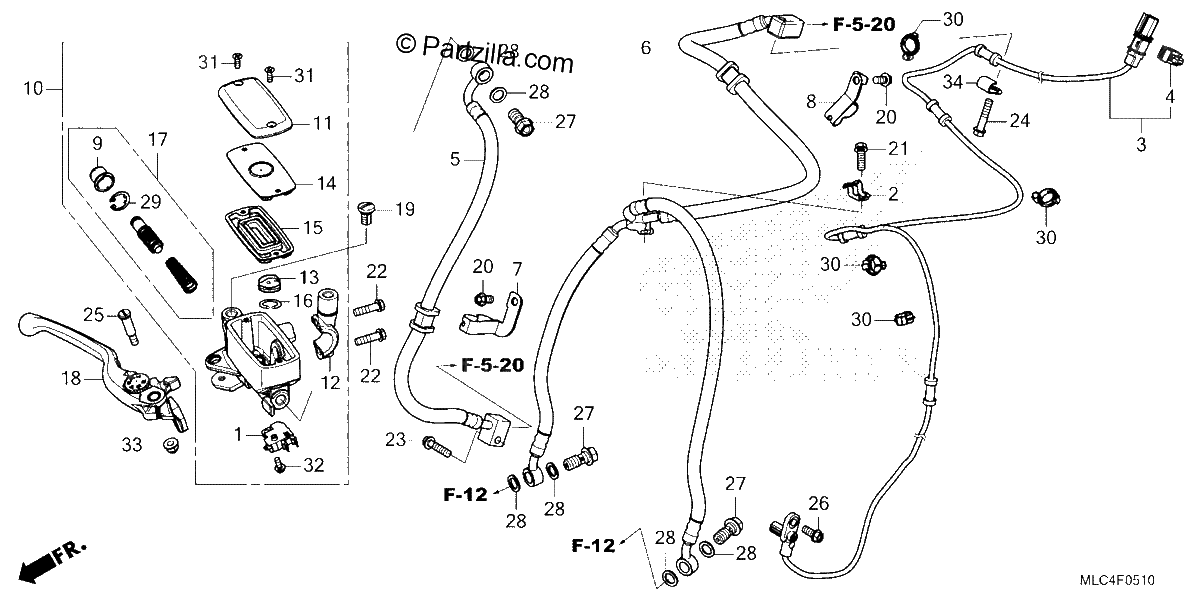

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
CLAMP, SENSOR WIRE
$4.57¢2 283
#003
SENSOR, FR. WHEEL SPEED
$81.05¢40 526
#004
CLIP, CONNECTOR (DARK BLUE)
$3.45¢1 725
#005
HOSE A, FR. BRAKE
$49.86¢24 932
#006
HOSE D, FR. BRAKE
$134.29¢67 143
#007
CLAMP A, FR. BRAKE HOSE
$7.31¢3 657
#008
CLAMP B, FR. BRAKE HOSE
$6.35¢3 174
#009
BOOT
$13.10¢6 549
#010
MASTER CYLINDER SUB-ASSY., FR.
$240.09¢120 043
#011
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#012
HOLDER, MIRROR
$13.36¢6 681
#013
SEPARATOR
$8.50¢4 249
#014
PLATE, DIAPHRAGM
$11.37¢5 687
#015
DIAPHRAGM
$16.26¢8 131
#016
RING
$3.36¢1 679
#017
MASTER CYLINDER SET
$51.03¢25 513
#018
LEVER ASSY., R. HANDLE
$54.34¢27 169
#019
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
#019
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
#020
BOLT, FLANGE (6X12)
$2.64¢1 322
#021
BOLT, FLANGE (6X18)
$2.68¢1 340
#022
BOLT, FLANGE (6X22)
$2.59¢1 294
#023
BOLT, FLANGE (6X25)
$2.68¢1 340
#024
BOLT, FLANGE (6X30)
$2.18¢1 092
#025
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#026
BOLT, FLANGE (6X14)
$2.74¢1 368
#027
BOLT, OIL (10X22)
$8.18¢4 088
#028
WASHER, OIL BOLT
$4.46¢2 231
#029
CIRCLIP
$2.85¢1 426
#030
CLIP, CABLE (12MM)
$2.64¢1 322
#031
SCREW, FLAT (4X12)
$1.07¢535
#031
SCREW, FLAT (4X12)
$1.07¢535
#032
SCREW-WASHER (4X12)
$1.59¢793
#032
SCREW-WASHER (4X12)
$1.59¢793
#033
NUT, FLANGE (6MM)
$0.74¢368
#034
CLAMP, SENSOR WIRE
$1.41¢707
