TRANSMISSION MAINSHAFT CRF1100D D4

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

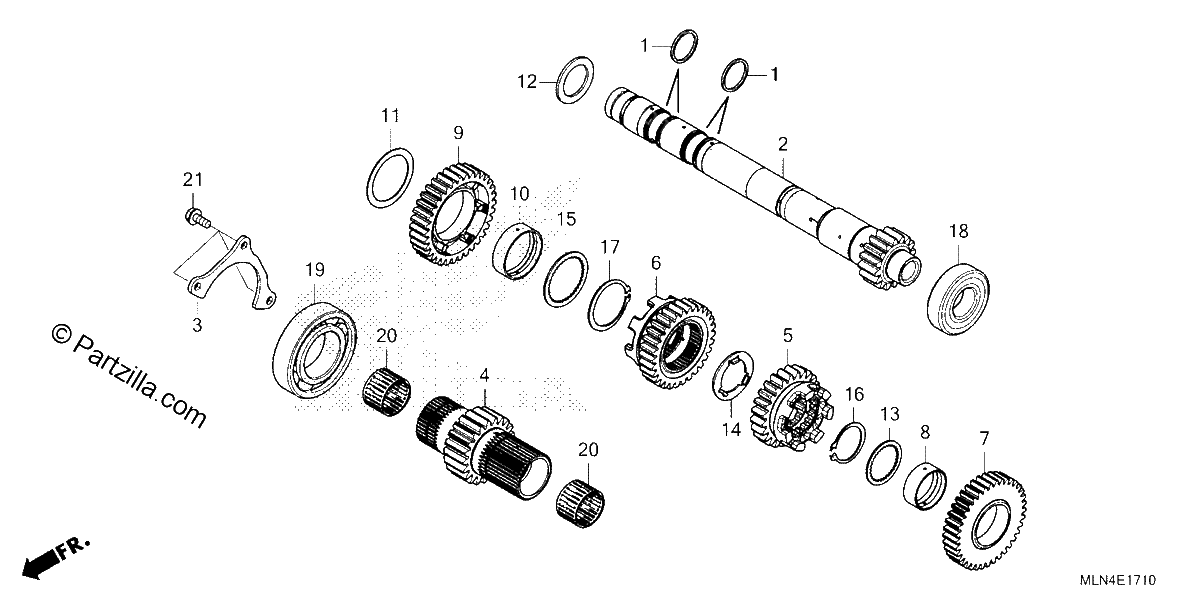

Diagrama de TRANSMISSION MAINSHAFT CRF1100D D4

Repuestos

#001
22815-MGE-D01
RING, SEAL (28MM)
$4.21¢2 105
1
#002
23210-MLN-E60
MAINSHAFT (INNER)
$276.77¢138 385
1
#003
23213-HL4-000
PLATE, BEARING SETTING
$6.66¢3 329
1
#004
23231-MLN-E60
MAINSHAFT (OUTER) (21T)
$224.07¢112 033
1
#005
23451-MKS-E50
GEAR, MAINSHAFT THIRD (24T)
$140.81¢70 403
1
#006
23471-MKS-E50
GEAR, MAINSHAFT FOURTH (30T)
$152.46¢76 228
1
#007
23491-MLN-E60
GEAR, MAINSHAFT FIFTH (37T)
$113.93¢56 965
1
#008
23492-HL4-000
COLLAR (32X35X13.5)
$19.57¢9 786
1
#009
23511-MKS-E50
GEAR, MAINSHAFT SIXTH (34T)
$136.49¢68 247
1
#010
23512-MGE-D00
COLLAR (40X43X12.5)
$17.51¢8 757
1
#011
90403-MK2-300
WASHER
$5.92¢2 961
1
#012
90445-KE5-000
WASHER (32MM)
$11.58¢5 790
1
#013
90452-MCA-000
WASHER, SPLINE (32X17X1.667)
$3.27¢1 633
1
#014
90463-HL4-000
WASHER, SPECIAL (28X42X2)
$6.72¢3 358
1
#015
90493-MGE-D00
WASHER, SPLINE (40MM)
$9.56¢4 778
1
#016
90604-MCA-780
CIRCLIP (32MM)
$4.09¢2 047
1
#017
90605-MGE-D00
CIRCLIP (40MM)
$8.22¢4 111
1
#018
91003-MJP-G81
BEARING, RADIAL BALL (25X56X15)
$56.41¢28 204
1
#019
91023-HL4-003
BEARING, RADIAL BALL (40X76X18)
$60.48¢30 239
1
#020
91024-HL4-003
BEARING, NEEDLE (28X32X21)
$14.04¢7 021
1
#021
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
