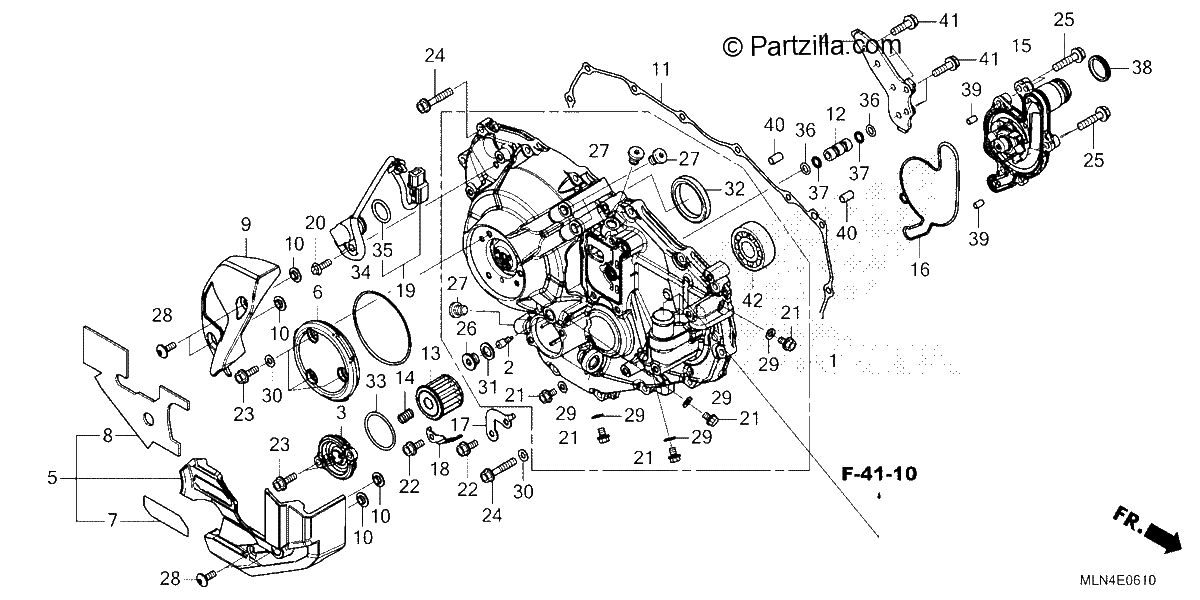

RIGHT CRANKCASE COVER CRF1100D D4
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, R. CRANKCASE
$563.06¢281 532
#002
ORIFICE
$21.26¢10 632
#003
COVER, OIL FILTER
$34.15¢17 077
#004
COVER (INNER)
$53.92¢26 962
#005
COVER, OIL PRESSURE SENSOR
$61.46¢30 728
#006
CAP, R. COVER
$99.16¢49 582
#007
PLATE, EMBLEM
$20.02¢10 011
#008
MAT, R. FR. COVER
$18.46¢9 229
#009
COVER, R. RR. ENGINE
$12.63¢6 313
#010
COLLAR
$3.36¢1 679
#011
GASKET, R. CRANKCASE COVER
$52.01¢26 007
#012
PIPE, OIL PASSAGE
$11.58¢5 790
#013
ELEMENT, OIL FILTER
$9.11¢4 554
#014
SPRING, OIL FILTER
$3.10¢1 553
#015
WATER PUMP
$232.85¢116 426
#016
GASKET, WATER PUMP BODY
$11.40¢5 698
#017
STAY, HARNESS CLIP
$5.62¢2 812
#018
STAY, HARNESS CLIP
$4.62¢2 311
#019
SENSOR ASSY., ANGLE (40DEGREE)
$222.08¢111 038
#020
BOLT, KNOCK (6MM)
$3.42¢1 708
#021
BOLT, FLANGE (6X8)
$2.64¢1 322
#022
BOLT, FLANGE (6X14)
$2.64¢1 322
#023
BOLT, FLANGE (6X18)
$2.64¢1 322
#024
BOLT, FLANGE (6X28)
$2.59¢1 294
#025
BOLT, FLANGE (6X25)
$2.62¢1 311
#026
BOLT, SEALING (12X8)
$3.92¢1 961
#027
BOLT, SPECIAL (10MM)
$5.04¢2 519
#028
BOLT, SOCKET SPECIAL (6X17)
$2.86¢1 432
#029
WASHER, SEALING (6MM)
$2.21¢1 104
#030
WASHER, SEALING (6MM)
$2.69¢1 346
#031
WASHER (12MM)
$3.47¢1 737
#032
BEARING, RADIAL BALL (40X52X7)
$35.94¢17 969
#033
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
#034
O-RING (81X2.2)
$4.63¢2 317
#035
O-RING (16.5X2.5)
$5.69¢2 846
#036
O-RING (7.7X1.9)
$3.09¢1 547
#037
RING, BACK-UP (8X11)
$3.96¢1 978
#038
SEAL, WATER PIPE
$2.85¢1 426
#039
PIN, DOWEL (6X10)
$2.66¢1 328
#040
PIN, DOWEL (8X14)
$2.66¢1 328
#041
BOLT, FLANGE (6X20)
$2.09¢1 047
#042
BEARING, RADIAL BALL (6304)
$15.38¢7 688
