CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

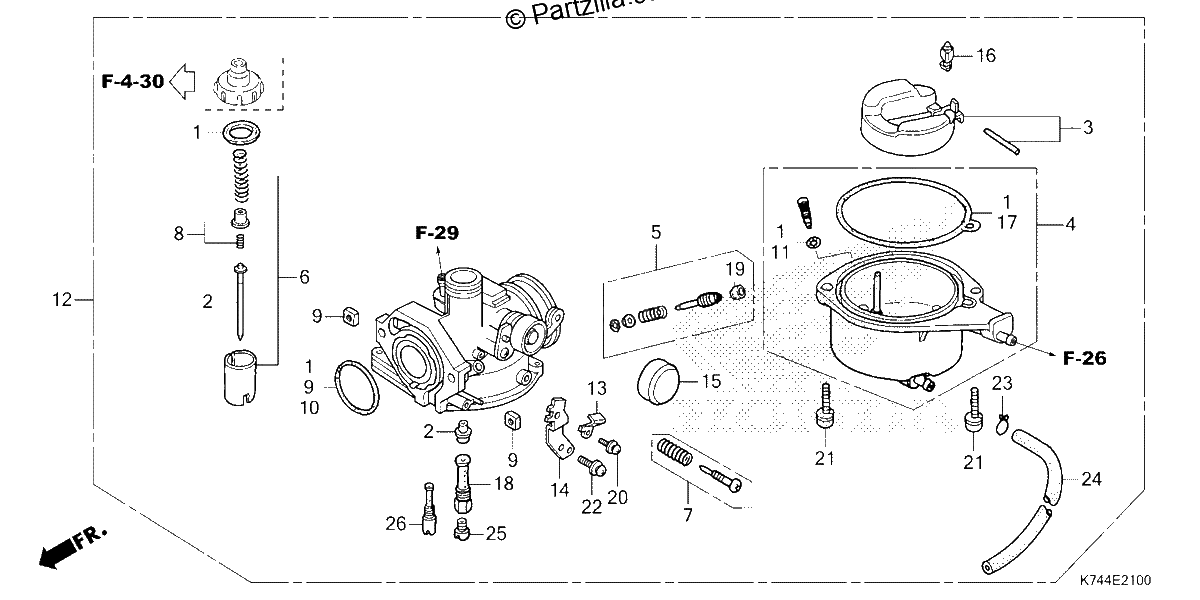

Diagrama de CARBURETOR

Repuestos

#001
16010-K24-901
GASKET SET
$2.13¢1 064
1
#002
16012-K74-F01
NEEDLE SET, JET
$4.78¢2 392
1
#003
16013-KRB-901
FLOAT SET
$3.33¢1 667
1
#004
16015-K24-901
CHAMBER SET, FLOAT
$7.13¢3 565
1
#005
16016-K74-F01
SCREW SET
$3.86¢1 932
1
#006
16022-K74-F01
VALVE SET, THROTTLE
$7.75¢3 875
1
#007
16028-KPL-901
SCREW SET
$2.71¢1 357
1
#008
16037-KRS-601
PLATE SET, VALVE
$16.45¢8 223
1
#009
16041-KPL-901
NUT SET, SQUARE
$3.01¢1 507
1
#010
16075-KPL-901
O-RING
$0.41¢207
1
#011
16076-KPL-901
O-RING
$0.21¢104
1
#012
16100-K74-F01
CARBURETOR ASSY. (PB5UA A)
$98.01¢49 007
1
#013
16119-KPL-901
PLATE, STAY
$0.47¢236
1
#014
16119-KWP-901
STAY, WIRE
$0.86¢431
1
#015
16148-KPL-901
CAP, CHOKE DUST
$0.29¢144
1
#016
16155-KPL-901
VALVE, FLOAT
$6.46¢3 231
1
#017
16163-KWS-901
GASKET, FLOAT CHAMBER
$2.13¢1 064
1
#018
16165-KVT-D01
HOLDER, NEEDLE JET
$0.77¢385
1
#019
16312-KYK-911
CAP, ADJUSTING SCREW
$3.21¢1 604
1
#020
93892-04010-08
SCREW-WASHER (4X10)
$1.36¢678
1
#020
93892-04010-18
SCREW-WASHER (4X10)
$1.36¢678
1
#021
93892-04018-08
SCREW-WASHER (4X18)
$1.15¢575
1
#022
93892-05012-08
SCREW-WASHER (5X12)
$1.36¢678
1
#022
93892-05012-18
SCREW-WASHER (5X12)
$1.36¢678
1
#023
95002-02659
CLIP, TUBE (B6.5)
$1.30¢650
1
#024
95005-35001-50M
BULK HOSE, VACUUM (3.5X1000) (3.5X50)
$14.75¢7 377
1
#025
99101-GCK-0850
JET, MAIN (#85)
$41.37¢20 683
1
#025
99101-HF7-0800
JET, MAIN (#80)
$9.37¢4 686
1
#026
99103-GFP-0350
JET, SLOW (#35)
$9.86¢4 928
1
