FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

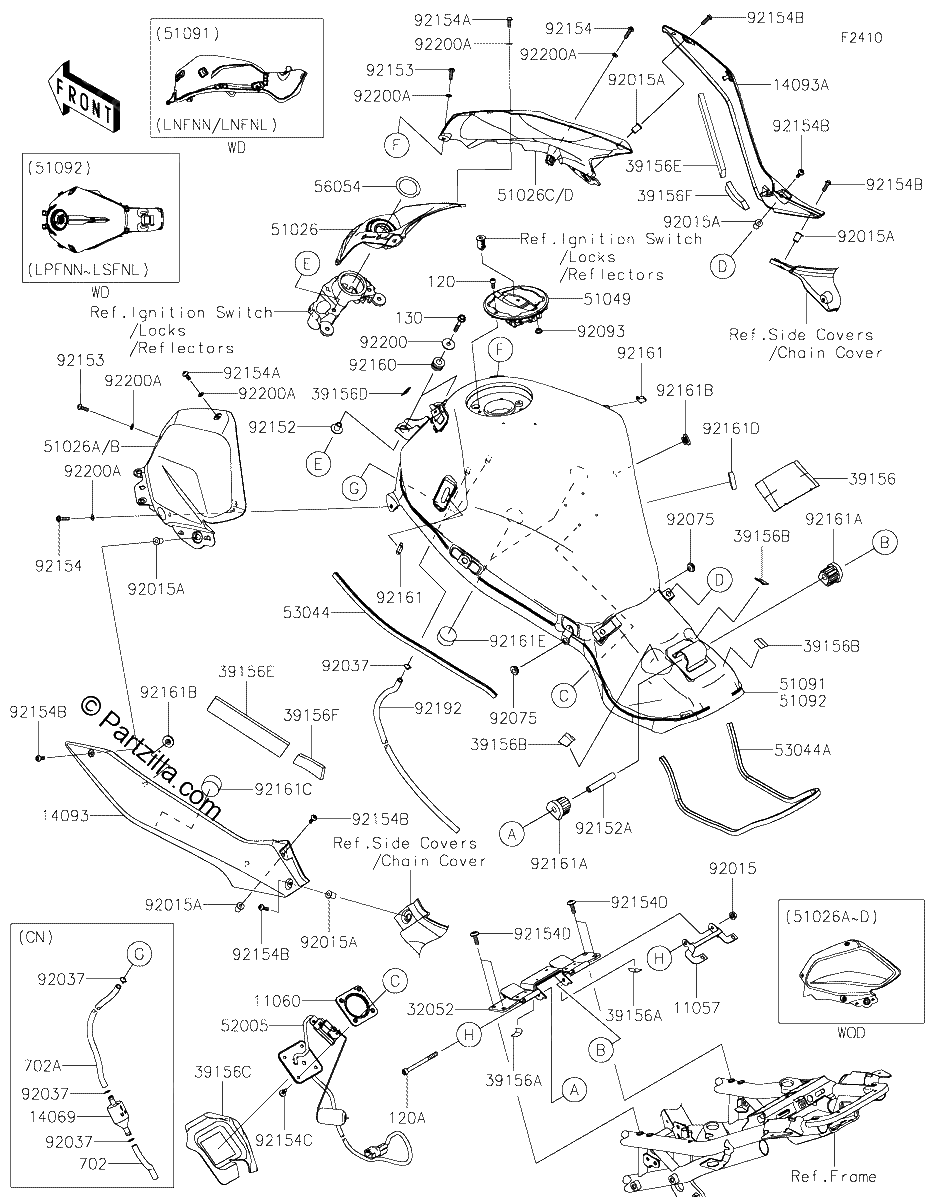

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#120A
120CA0675
BOLT SOCKET,6X75
$2.85¢1 426
1
#130
130BA0635
BOLT-FLANGED,6X35
$0.93¢466
1
#702
702A06120
TUBE RUBBER,6X9X120
$1.26¢633
1
#702A
702A06700
TUBE RUBBER,6X9X700
$17.40¢8 700
1
#11057
11057-7412
BRACKET,FUEL GAUGE CONNECTOR
$19.86¢9 930
1
#11060
11060-1952
GASKET,FUEL GAUGE
$20.55¢10 275
1
#14069
14069-0008
BREATHER,TANK
$6.18¢3 088
1
#14093
14093-0968
COVER,KNEE GRIP,LH
$57.87¢28 934
1
#14093A
14093-0969
COVER,KNEE GRIP,RH
$57.87¢28 934
1
#32052
32052-0823
BRACKET-TANK
$91.16¢45 580
1
#39156
39156-1778
PAD,RR FRM
$4.84¢2 421
1
#39156F
39156-2659
PAD
$16.63¢8 315
1
#39156A
39156-1784
PAD,15X20X0.2
$1.06¢529
1
#39156B
39156-2288
PAD,20X20X1
$1.02¢512
1
#39156C
39156-2570
PAD,FUEL TANK
$12.76¢6 382
1
#39156D
39156-2591
PAD,22X13X0.2
$0.90¢448
1
#39156E
39156-2612
PAD,30X150X8
$5.31¢2 657
1
#51026
51026-0020
COVER TANK,CNT
$20.06¢10 028
1
#51026C
51026-0024-68P
COVER TANK,Right Hand,M M G GRAY
$125.19¢62 595
1
#51026A
51026-0023-17K
COVER TANK,Left Hand,M D BLACK
$125.45¢62 727
1
#51026B
51026-0023-68P
COVER TANK,LH,M.M.G.GRAY
$125.45¢62 727
1
#51026A
51026-0023-68P
COVER TANK,LH,M.M.G.GRAY
$125.45¢62 727
1
#51026C
51026-0024-17K
COVER TANK,Right Hand,M D BLACK
$125.19¢62 595
1
#51026D
51026-0024-68P
COVER TANK,Right Hand,M M G GRAY
$125.19¢62 595
1
#51049
51049-0735
CAP-TANK
$160.05¢80 023
1
#51091
51091-5492-65L
TANK COMP FUEL,M D BLACK+GRN
$1809.87¢904 935
1
#51092
51092-5417-H8
TANK COMP FUEL,EBONY
$1263.26¢631 632
1
#52005
52005-0772
GAUGE,FUEL
$246.62¢123 309
1
#53044A
53044-1240
TRIM,L=760
$24.22¢12 109
1
#53044
53044-1211
TRIM,WINDSHIELD
$18.11¢9 056
1
#56054
56054-2963
MARK,IG. SWITCH
$17.05¢8 527
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.59¢1 794
1
#92075
92075-1011
DAMPER,6X16X7
$6.72¢3 358
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.11¢3 553
1
#92152A
92152-1964
COLLAR,6X10X60.2
$18.58¢9 292
1
#92152
92152-1847
COLLAR,6.3X9.5X14.1
$6.09¢3 048
1
#92153
92153-1244
BOLT,SOCKET,5X16
$2.07¢1 035
1
#92154C
92154-1856
BOLT,FLANGED,5X12
$1.59¢793
1
#92154A
92154-1421
BOLT,SOCKET,5X12
$0.97¢483
1
#92154B
92154-1701
BOLT,SOCKET,5X16
$1.14¢569
1
#92154D
92154-2438
BOLT,SOCKET,6X18
$2.01¢1 006
1
#92154
92154-0210
BOLT,SOCKET,5X20
$1.84¢920
1
#92160
92160-1167
DAMPER,10X20X12
$4.28¢2 139
1
#92161A
92161-1737
DAMPER,FUEL TANK
$5.37¢2 685
1
#92161B
92161-1937
DAMPER,6X20X7.5
$1.59¢793
1
#92161C
92161-2328
DAMPER,30X20
$2.46¢1 231
1
#92161D
92161-2329
DAMPER,30X8
$1.62¢811
1
#92161E
92161-3790
DAMPER
$4.24¢2 122
1
#92161
92161-0365
DAMPER
$4.84¢2 421
1
#92192
92192-1669
TUBE,DRAIN,6X9X808
$11.03¢5 514
1
#92200
92200-1087
WASHER,6.5X22X1.6
$3.61¢1 805
1
#92200A
92200-1730
WASHER,5.2X10X0.5
$0.71¢357
1
