FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

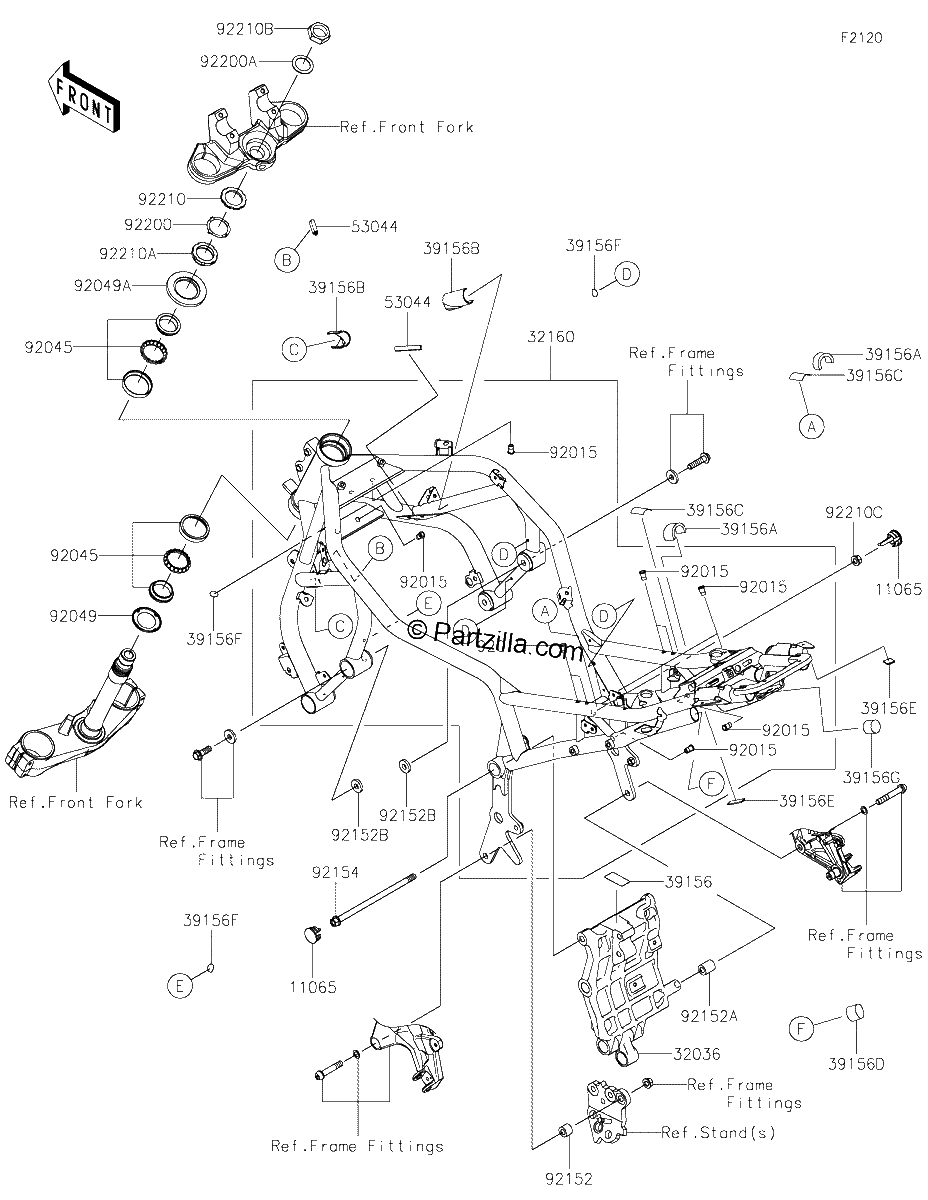

Diagrama de FRAME

Repuestos

#11065
11065-0987
CAP,27.4MM
$10.07¢5 037
1
#32036
32036-0406-46R
BRACKET SWINGARM,M F S BLACK
$659.00¢329 498
1
#32160
32160-1914-46Y
FRAME COMP,G B GREEN
$4874.40¢2 437 201
1
#39156
39156-1896
PAD,22X45
$7.80¢3 899
1
#39156G
39156-2777
PAD,24.2X20
$2.64¢1 322
1
#39156F
39156-2747
PAD
$3.79¢1 897
1
#39156E
39156-2568
PAD,30X14X2
$1.21¢604
1
#39156D
39156-2500
PAD,27X20
$4.48¢2 242
1
#39156C
39156-2449
PAD,35X25X0.2
$1.44¢719
1
#39156B
39156-2235
PAD,50X50X2
$1.66¢828
1
#39156A
39156-2191
PAD,20X50X5
$1.26¢633
1
#53044
53044-1324
TRIM,L=48
$3.51¢1 754
1
#92015
92015-1791
NUT,POP,6MM,L=15
$4.28¢2 139
1
#92045
92045-1384
BEARING BALL,SF07A17PX1V1
$47.85¢23 926
1
#92049A
92049-1382
SEAL OIL,XMH 43 75 6.4J
$23.74¢11 868
1
#92049
92049-0022
SEAL-OIL,DS35X55X4
$15.72¢7 860
1
#92152B
92152-2644
COLLAR,10.5X25X4.5
$9.66¢4 830
1
#92152A
92152-2643
COLLAR,10.2X20X23.7
$12.50¢6 250
1
#92152
92152-2642
COLLAR,10.2X20X14.7
$11.07¢5 537
1
#92154
92154-1660
BOLT,FLANGED,10X200
$35.85¢17 923
1
#92200A
92200-0595
WASHER,28.5X40X1.6
$3.96¢1 978
1
#92200
92200-0036
WASHER
$4.57¢2 283
1
#92210B
92210-0209
NUT,28MM
$18.73¢9 367
1
#92210A
92210-0096
NUT,35MM
$19.93¢9 965
1
#92210
92210-0095
NUT,35MM
$16.50¢8 251
1
#92210C
92210-1139
NUT,LOCK,FLANGED,10MM
$3.47¢1 737
1
