HANDLEBAR 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

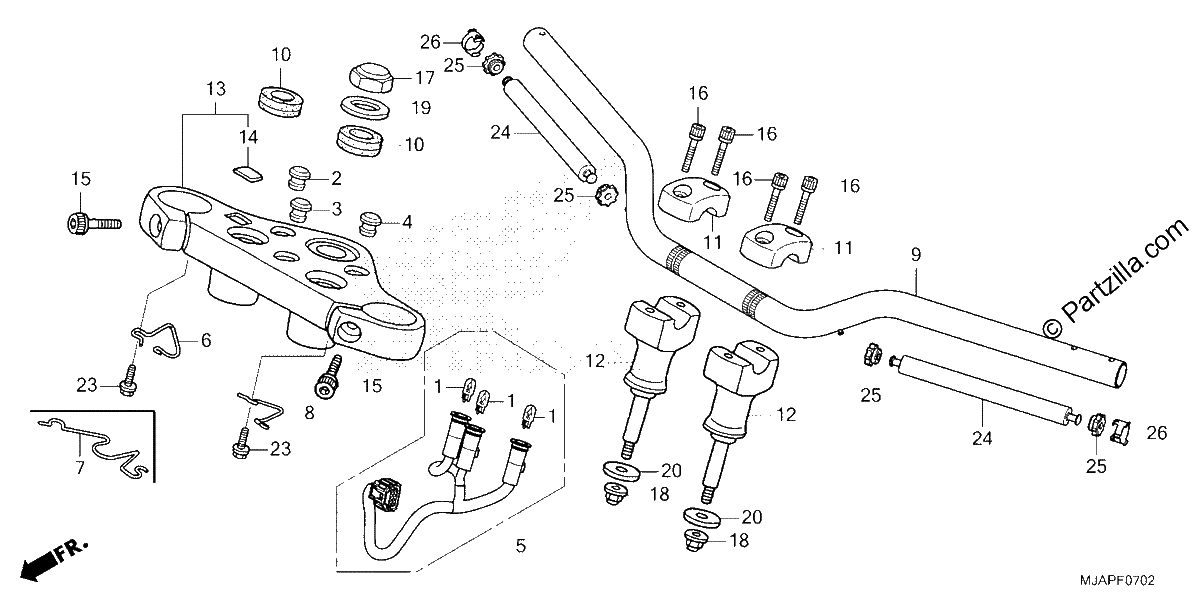

Diagrama de HANDLEBAR 3

Repuestos

#001
34908-KW3-003
BULB, WEDGE BASE (12V 3.4W) (STANLEY)
$4.34¢2 168
1
#002
37564-KGB-611
LENS, HIGH BEAM PILOT
$7.13¢3 565
1
#003
37563-KGB-611
LENS, NEUTRAL PILOT
$7.81¢3 904
1
#004
37581-MJA-AT1
LENS COMP, . FUEL PILOT
$10.82¢5 411
1
#005
37605-MJA-AT1
SOCKET ASSY., PILOT
$66.08¢33 040
1
#006
45135-MEG-A40
GUIDE, R. CABLE
$14.37¢7 187
1
#008
45136-MJA-AT0
GUIDE, L. CABLE
$12.47¢6 233
1
#009
53100-MJA-AT0
HANDLEBAR
$172.06¢86 032
1
#010
53125-KW9-700
CAP, HANDLE (LOWER)
$5.92¢2 961
1
#011
53131-MJA-AT0
HOLDER, HANDLE (UPPER)
$15.02¢7 510
1
#012
53231-MJA-AT0
HOLDER, HANDLE (LOWER)
$36.37¢18 187
1
#013
53300-MJA-CU0
BRIDGE ASSY., FORK TOP
$264.82¢132 411
1
#014
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#014
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$4.75¢2 375
1
#015
90112-MCL-000
BOLT, SOCKET (8X30)
$3.36¢1 679
1
#016
90155-K87-A00
BOLT, SOCKET (8X32)
$1.07¢535
1
#017
90306-K87-A00
NUT, STEERING STEM
$6.90¢3 450
1
#018
90309-ML4-901
NUT, FLANGE (8MM)
$3.47¢1 737
1
#018
90309-MR1-770
NUT, FLANGE (8MM)
$3.47¢1 737
1
#019
90503-MJA-CU0
WASHER, STEERING STEM
$4.15¢2 076
1
#020
90535-MR1-770
WASHER, HANDLE HOLDER (LOWER)
$4.25¢2 128
1
#023
95701-08016-00
BOLT, FLANGE (8X16)
$2.13¢1 064
1
#024
53106-MZ8-G20
WEIGHT, HANDLE
$18.11¢9 056
1
#025
53107-MM8-000
RUBBER, HANDLE WEIGHT
$5.44¢2 720
1
#026
53108-KW9-920
RING, HANDLE WEIGHT SNAP
$7.85¢3 927
1
