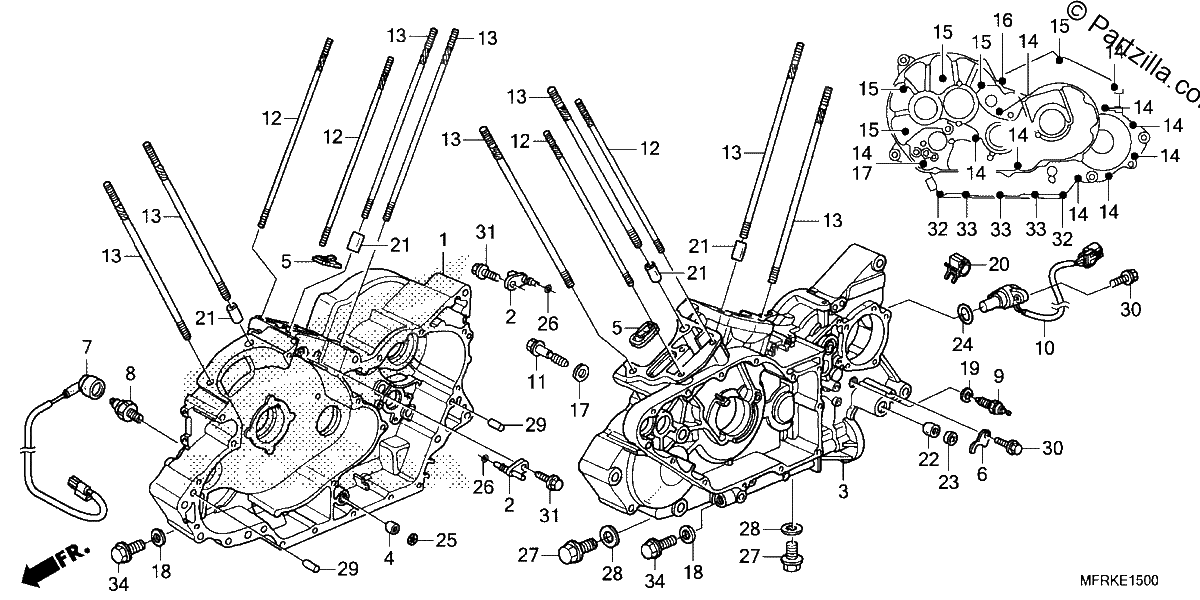

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE, R.
$1049.00¢524 500
#002
JET, OIL
$13.01¢6 506
#003
CRANKCASE, L.
$1036.63¢518 313
#004
COLLAR, O-RING
$4.20¢2 100
#005
VALVE, REED
$64.61¢32 306
#006
PLATE, SPINDLE
$12.56¢6 281
#007
SUB-HARNESS, ENGINE
$17.79¢8 894
#008
SWITCH Assembly., OIL PRESSURE (DENSO)
$49.28¢24 638
#009
SWITCH ASSY., NEUTRAL (TOYO)
$21.94¢10 969
#010
SENSOR ASSY., SPEED
$192.54¢96 269
#011
BOLT, ORIFICE (1.6MM)
$12.54¢6 269
#012
BOLT, STUD (8X259)
$14.96¢7 481
#013
BOLT, STUD (10X269)
$18.85¢9 425
#014
BOLT, FLANGE (8X95)
$3.73¢1 863
#015
BOLT, FLANGE (8X105)
$4.07¢2 037
#016
BOLT, FLANGE (8X115)
$4.51¢2 256
#017
WASHER, SEALING (8MM)
$2.92¢1 463
#018
WASHER, SEALING (10.2MM)
$3.65¢1 825
#019
WASHER, NEUTRAL
$2.48¢1 238
#020
CLIP, CABLE (8MM)
$2.81¢1 406
#021
PIN, DOWEL (14X28)
$2.34¢1 169
#022
BEARING, NEEDLE (14X22X16)
$24.63¢12 313
#023
OIL SEAL (14X22X5) (NOK)
$4.63¢2 313
#024
O-RING (18.1X3.6)
$4.28¢2 138
#025
O-RING (14.8X2.4) (ARAI)
$2.27¢1 138
#026
O-RING (5X1.7) (ARAI)
$3.65¢1 825
#027
BOLT, DRAIN PLUG (12MM)
$3.91¢1 956
#028
WASHER, DRAIN PLUG (12MM)
$1.57¢788
#029
PIN B, DOWEL (10X16)
$2.16¢1 081
#030
BOLT, FLANGE (6X14)
$1.23¢613
#031
BOLT, FLANGE (6X16)
$2.09¢1 044
#032
BOLT, FLANGE (6X55)
$2.66¢1 331
#033
BOLT, FLANGE (6X70)
$2.95¢1 475
#034
BOLT, FLANGE (10X16)
$1.64¢819
