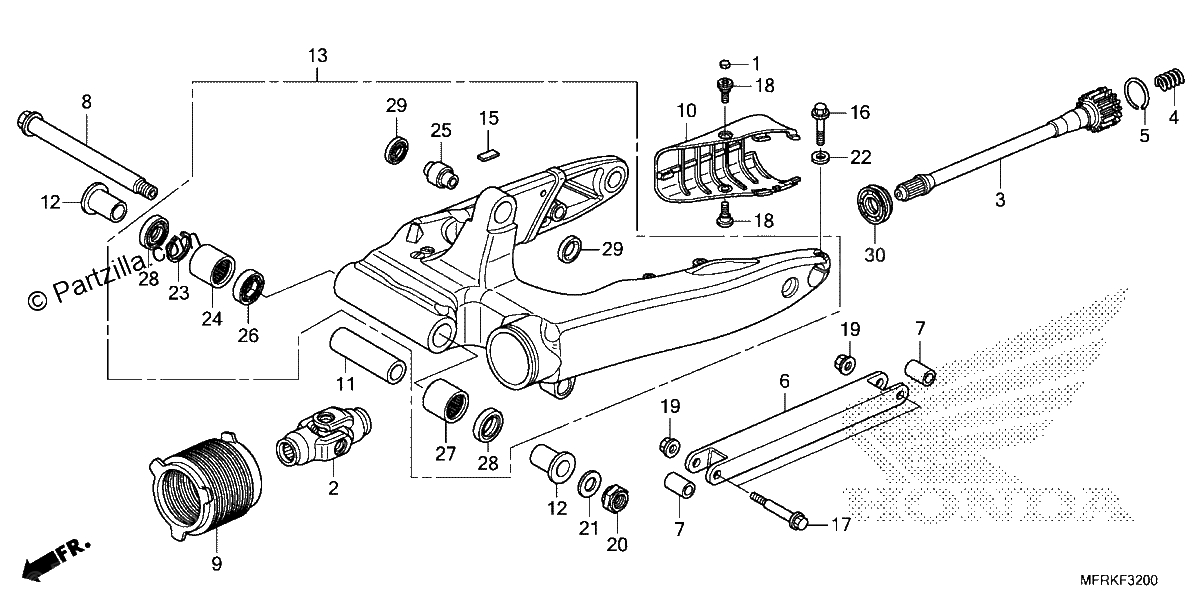

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PLUG, HEX. (6MM)
$5.04¢2 519
#002
JOINT, YOKE
$207.78¢103 891
#003
SHAFT, PROPELLER
$191.35¢95 674
#004
SPRING, PROPELLER SHAFT
$6.59¢3 295
#005
RING, STOPPER
$5.04¢2 519
#006
LINK, TORQUE
$175.50¢87 751
#007
BUSH, TORQUE LINK
$13.89¢6 946
#008
BOLT, SWINGARM PIVOT
$70.89¢35 443
#009
BOOT, JOINT
$29.93¢14 967
#010
COVER, PROPELLER SHAFT
$28.90¢14 450
#011
COLLAR, CENTER PIVOT DISTANCE
$27.11¢13 553
#012
COLLAR, PIVOT DISTANCE
$33.48¢16 738
#013
SWINGARM SUB-Assembly., Rear. NHA86M (MAT BALLISTIC BLACK)
$1411.14¢705 571
#015
TAPE, SIDE COVER PROTECTOR
$1.41¢707
#016
BOLT, FLANGE (8X35)
$7.99¢3 996
#017
BOLT, FLANGE (10X50)
$5.13¢2 565
#018
BOLT, SOCKET (6X12)
$3.81¢1 903
#019
NUT, U (10MM)
$4.83¢2 415
#020
NUT, U (18MM)
$7.60¢3 801
#021
WASHER, SPECIAL (18MM)
$3.39¢1 696
#022
WASHER, PLAIN (8MM)
$4.51¢2 254
#023
CIRCLIP (INNER) (37)
$3.71¢1 857
#024
BEARING, NEEDLE
$18.38¢9 189
#025
BEARING, SPHERICAL (10MM)
$42.78¢21 390
#026
BEARING, RADIAL BALL (20X37X9)
$11.03¢5 514
#027
BEARING, NEEDLE
$27.44¢13 719
#028
DUST SEAL (28X37X4)
$7.08¢3 542
#029
DUST SEAL (16X26X2.5)
$6.92¢3 461
#030
OIL SEAL (27X43X7)
$12.96¢6 480
