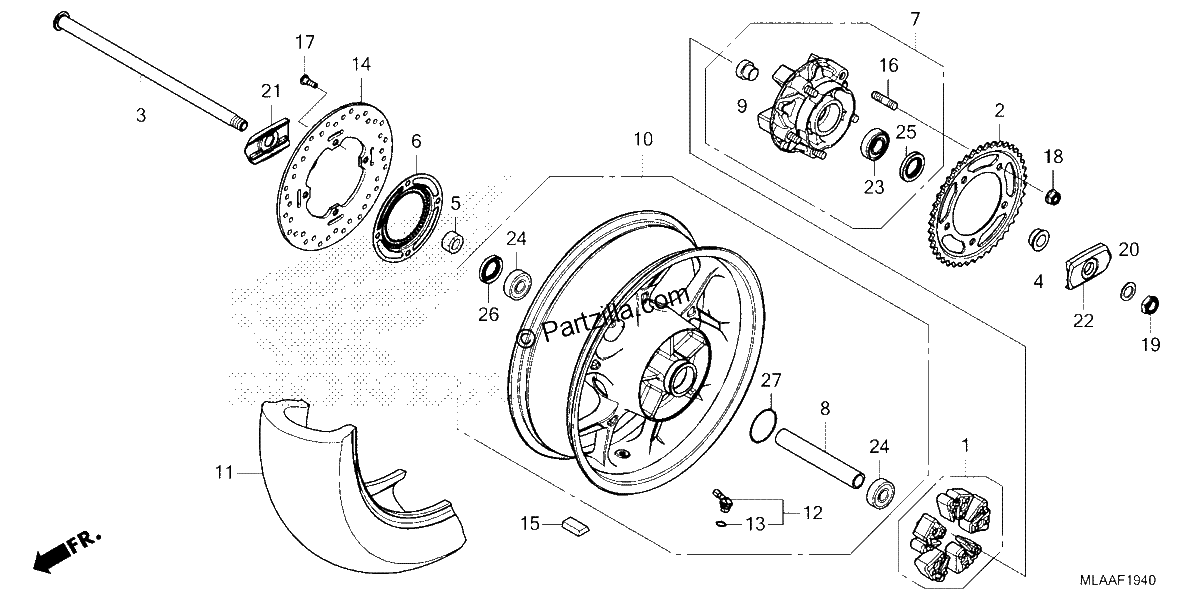

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$61.81¢30 906
#002
SPROCKET, FINAL DRIVEN (42T)
$64.39¢32 194
#003
AXLE, RR. WHEEL
$68.19¢34 098
#004
COLLAR, L. RR. WHEEL SIDE
$20.57¢10 287
#005
COLLAR, RR. BRAKE SIDE
$16.69¢8 343
#006
RING, Rear PULSER
$86.87¢43 436
#007
FLANGE SUB-Assembly., Rear DRIVEN
$307.82¢153 910
#008
COLLAR, Rear AXLE DISTANCE
$30.61¢15 307
#009
COLLAR B, RR. WHEEL DISTANCE
$20.80¢10 402
#010
WHEEL SUB-ASSY., RR.
$835.34¢417 668
#010
WHEEL SUB-ASSY., RR.
$835.34¢417 668
#011
TIRE, Rear. (180/65B16 M/C 81H) (DUNLOP)
$311.98¢155 992
#012
VALVE ASSY., CLAMP IN
$17.71¢8 855
#013
O-RING
$1.81¢903
#014
DISK, Rear BRAKE (NHK PRECISION)
$352.22¢176 111
#015
WEIGHT, BALANCE (20G)
$4.81¢2 403
#015
WEIGHT, BALANCE (10G)
$3.60¢1 800
#015
WEIGHT, BALANCE (15G)
$4.30¢2 151
#016
BOLT, STUD (12X25)
$4.47¢2 237
#017
BOLT, DISK (8X25)
$3.36¢1 679
#018
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
#019
NUT, U (18MM)
$7.60¢3 801
#020
WASHER, SPECIAL (18MM)
$3.39¢1 696
#021
PLATE, SWINGARM SIDE (R)
$20.72¢10 362
#022
PLATE, SWINGARM SIDE (L)
$20.72¢10 362
#023
BEARING, ANGULAR BALL (22X50X15)
$40.69¢20 344
#024
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
#025
DUST SEAL (30X50X7)
$13.73¢6 865
#026
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
#026
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
#027
O-RING (55X2)
$3.36¢1 679
