GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

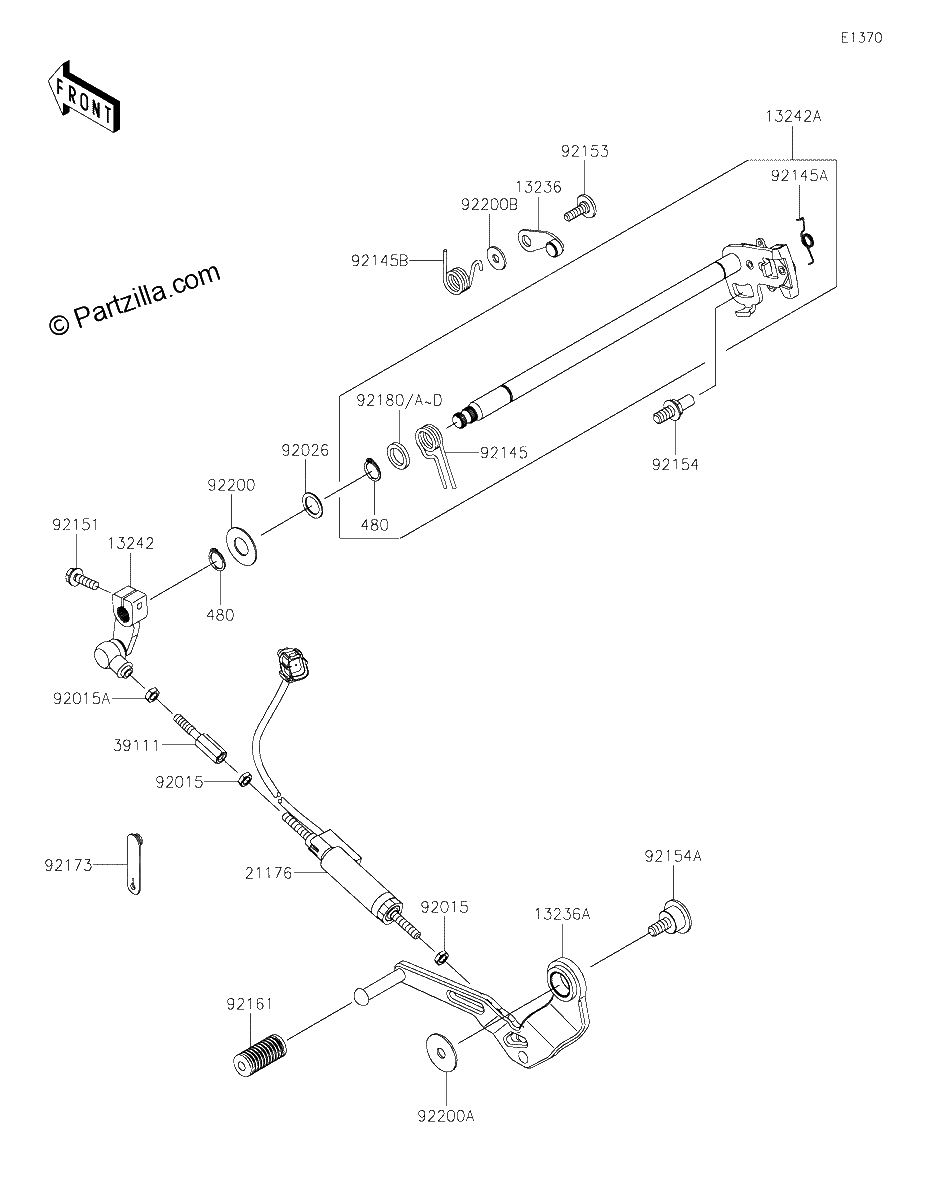

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.57¢2 283
1
#13236
13236-0785
LEVER-COMP,POSITION
$22.47¢11 235
1
#13236A
13236-0828
LEVER-COMP,CHANGE,PEDAL
$75.09¢37 547
1
#13242
13242-0168
LEVER Assembly CHANGE
$55.82¢27 911
1
#13242A
13242-0170
LEVER-ASSY-CHANGE
$137.37¢68 684
1
#21176
21176-0952
SENSOR,QUICK SHIFTER
$236.88¢118 438
1
#39111
39111-0378
ROD TIE
$110.46¢55 229
1
#92015
92015-1443
NUT,6MM
$3.59¢1 794
1
#92015A
92015-1444
NUT,LEFT HANDED,6MM
$4.28¢2 139
1
#92026
92026-1534
SPACER,14X20X1.0
$4.14¢2 070
1
#92145
92145-0415
SPRING,RETURN
$12.19¢6 095
1
#92145B
92145-1664
SPRING,POSITION LEVER
$11.78¢5 888
1
#92145A
92145-1663
SPRING
$11.03¢5 514
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.10¢1 052
1
#92153
92153-1505
BOLT,6X20
$8.20¢4 100
1
#92154
92154-1838
BOLT,RETURN SPRING
$9.49¢4 744
1
#92154A
92154-1884
BOLT
$31.02¢15 508
1
#92161
92161-2389
DAMPER,CHANGE PEDAL
$5.57¢2 783
1
#92173
92173-2198
CLAMP
$1.43¢713
1
#92180A
92180-0964
SHIM,T=2.8
$32.29¢16 146
1
#92180D
92180-0967
SHIM,T=3.4
$32.29¢16 146
1
#92180C
92180-0966
SHIM,T=3.2
$32.29¢16 146
1
#92180B
92180-0965
SHIM,T=3.0
$32.29¢16 146
1
#92180
92180-0963
SHIM,T=2.6
$32.29¢16 146
1
#92180
92180-0964
SHIM,T=2.8
$32.29¢16 146
1
#92180
92180-0965
SHIM,T=3.0
$32.29¢16 146
1
#92180
92180-0966
SHIM,T=3.2
$32.29¢16 146
1
#92180
92180-0967
SHIM,T=3.4
$32.29¢16 146
1
#92200A
92200-0810
WASHER,8.2X30X1.5
$4.02¢2 012
1
#92200
92200-0265
WASHER
$2.22¢1 110
1
#92200B
92200-0996
WASHER,6.5X18X1.6
$8.51¢4 255
1
