SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

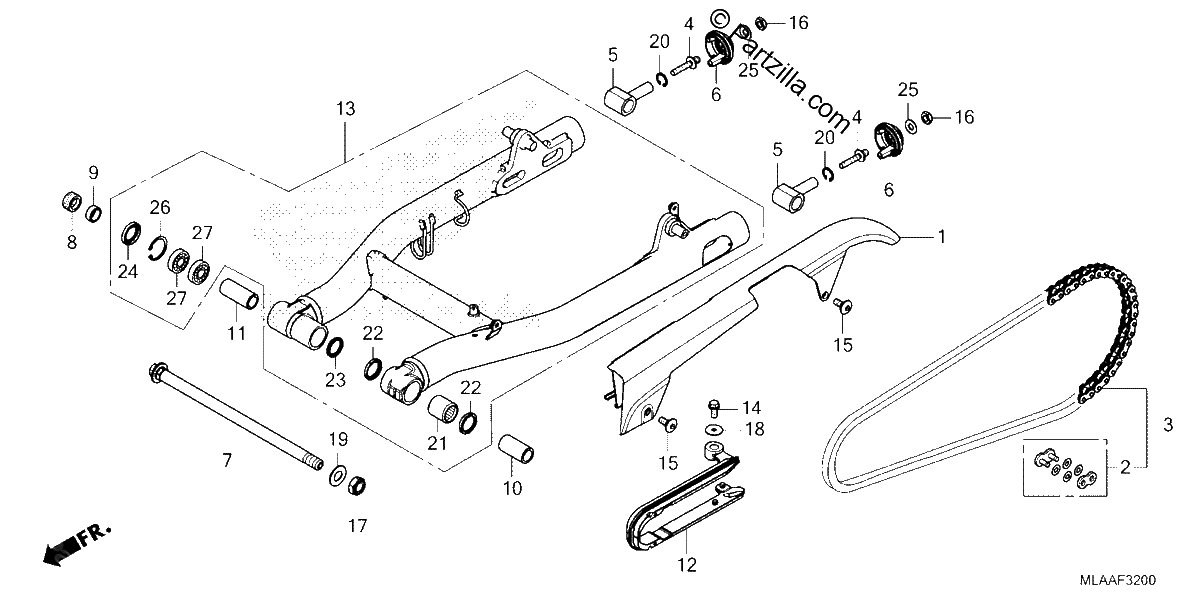

Diagrama de SWINGARM

Repuestos

#001
40510-MLA-A00
CASE, DRIVE CHAIN
$94.38¢47 190
1
#002
40531-MLA-A02
MASTER LINK (RK JAPAN)
$14.46¢7 228
1
#003
40540-MLA-A02
CHAIN, DRIVE (RK JAPAN) (RKBP525MRO-120LJFZ) (STANDARD LINK 114L)
$231.68¢115 840
1
#004
40542-K87-A00
BOLT, CHAIN ADJUSTING
$2.30¢1 150
1
#005
40543-MLA-A00
ADJUSTER, CHAIN
$32.28¢16 140
1
#006
40546-MLA-A00
CAP, SWINGARM END
$15.73¢7 866
1
#007
52101-MLA-A00
BOLT, SWINGARM PIVOT
$67.62¢33 810
1
#008
52109-MLA-A00
BOLT, PIVOT ADJUSTING
$15.48¢7 740
1
#009
52141-MKS-E00
COLLAR A, PIVOT
$6.14¢3 070
1
#010
52142-MLA-A00
COLLAR, L PIVOT DISTANCE
$13.41¢6 704
1
#011
52143-MLA-A00
COLLAR, R. PIVOT DISTANCE
$13.41¢6 704
1
#012
52170-MLA-A00
SLIDER, CHAIN
$39.23¢19 613
1
#013
52200-MLA-A00
SWINGARM SUB-Assembly., Rear.
$886.12¢443 060
1
#014
90013-GHB-620
BOLT, FLANGE (6X14)
$2.75¢1 374
1
#015
90118-MJK-N20
SCREW, SPECIAL (6X14)
$3.21¢1 604
1
#016
90301-MLA-A01
NUT, U (10MM)
$3.75¢1 874
1
#017
90305-GW2-711
NUT, U (16MM)
$17.49¢8 746
1
#018
90404-GE2-760
WASHER, PLAIN (6MM)
$2.64¢1 322
1
#019
90501-K87-A00
WASHER, PLAIN (16.4X32X2)
$1.77¢886
1
#020
90651-K87-A00
CIRCLIP (INNER) (20)
$1.85¢926
1
#021
91071-MT7-003
BEARING, NEEDLE (NTN)
$28.69¢14 346
1
#022
91202-MAL-601
DUST SEAL (25X33X4)
$7.76¢3 881
1
#023
91203-GC8-003
OIL SEAL (24X31X3.5)
$11.24¢5 618
1
#024
91214-MAL-601
DUST SEAL (23X35X5)
$9.73¢4 865
1
#025
94101-10700
WASHER, PLAIN (10MM)
$1.26¢633
1
#026
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
#027
96100-60030-10
BEARING, RADIAL BALL (6003)
$15.12¢7 561
1
