GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

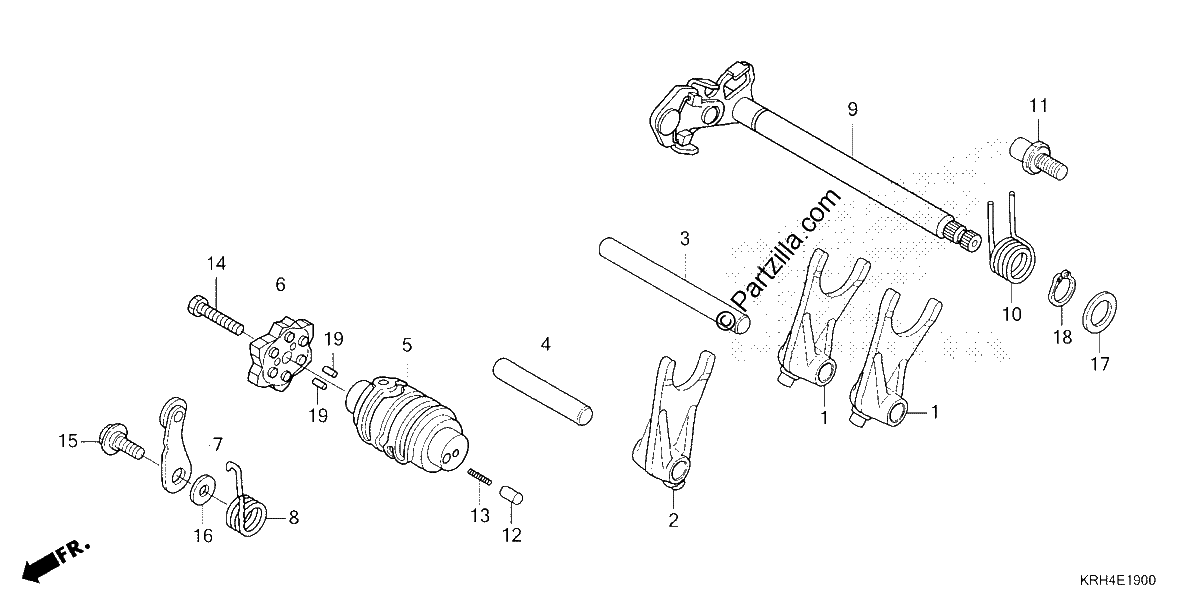

Diagrama de GEARSHIFT DRUM

Repuestos

#001
24211-KTT-900
FORK, GEARSHIFT
$54.59¢27 294
1
#002
24212-KVX-600
FORK, CENTER GEARSHIFT
$57.11¢28 556
1
#003
24241-KRM-840
SHAFT A, GEARSHIFT FORK
$9.36¢4 681
1
#004
24242-KRM-840
SHAFT B, GEARSHIFT FORK
$9.80¢4 900
1
#005
24301-KRH-780
DRUM, GEARSHIFT
$74.33¢37 163
1
#006
24410-KTT-900
PLATE, GEARSHIFT DRUM STOPPER
$20.13¢10 063
1
#007
24430-KRM-B10
STOPPER, GEARSHIFT DRUM
$15.94¢7 969
1
#008
24436-KRM-840
SPRING, SHIFT DRUM STOPPER
$1.02¢513
1
#009
24610-KRM-840
SPINDLE, GEARSHIFT
$36.64¢18 319
1
#010
24651-KRM-840
SPRING, GEARSHIFT RETURN
$3.02¢1 513
1
#011
24652-KRM-840
PIN, SHIFT RETURN SPRING
$7.66¢3 831
1
#012
35751-KPH-900
CAP, CHANGE SWITCH CONTACT
$0.83¢413
1
#013
35752-KRM-840
SPRING, CHANGE SWITCH CONTACT
$0.65¢325
1
#014
90003-KVS-900
BOLT, HEX. (6X20)
$2.63¢1 313
1
#015
90022-KRM-840
PIVOT, SHIFT DRUM STOPPER ARM
$1.79¢894
1
#016
90417-360-000
WASHER, DRUM STOPPER
$2.24¢1 119
1
#016
90417-KRM-840
WASHER, DRUM STOPPER
$2.24¢1 119
1
#017
90457-KRM-840
WASHER (14MM)
$0.94¢469
1
#018
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#019
96220-30085
ROLLER (3X8.5)
$0.68¢338
1
