FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

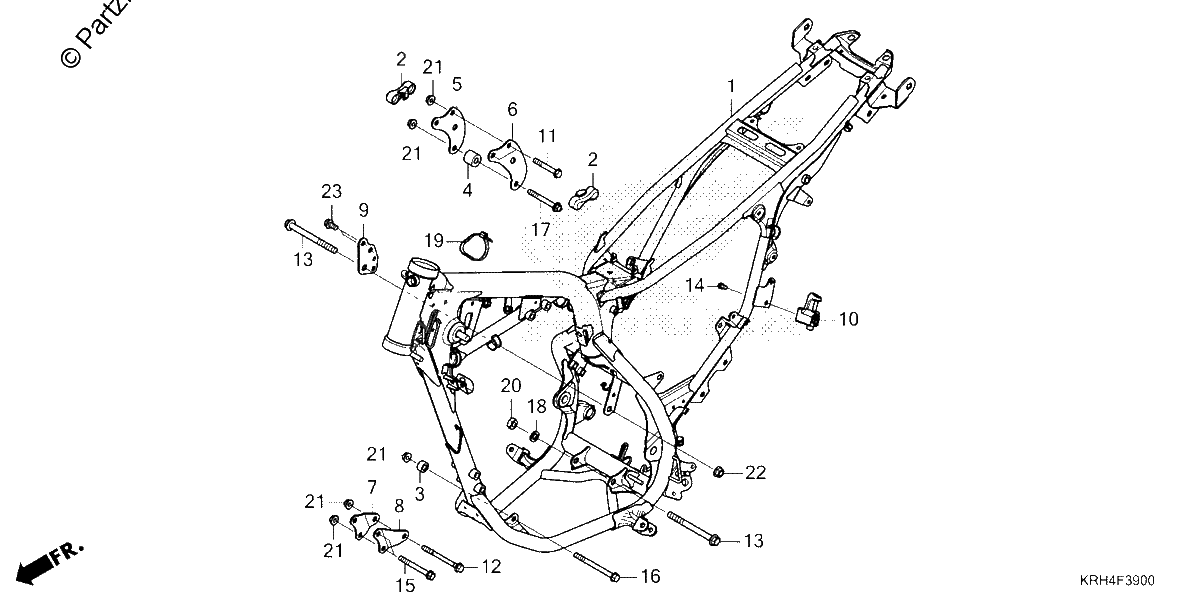

Diagrama de FRAME

Repuestos

#001
50100-KRH-J00ZA
FRAME NH1 (BLACK)
$1505.96¢752 981
1
#002
50212-KRH-900
RUBBER, TANK GUARD
$4.96¢2 481
1
#003
50318-KRH-780
COLLAR, ENGINE MOUNT
$4.00¢2 000
1
#004
50320-KRH-780
COLLAR, ENGINE HANGER MOUNT (UPPER)
$10.29¢5 144
1
#005
50522-KRH-780
PLATE, Right ENGINE HANGER (UPPER)
$21.41¢10 706
1
#006
50532-KRH-780
PLATE, L ENGINE HANGER (UPPER)
$21.41¢10 706
1
#007
50533-KRH-900
PLATE, Right Front ENGINE HANGER
$11.51¢5 756
1
#008
50534-KRH-900
PLATE, L. FR. ENGINE HANGER
$11.16¢5 581
1
#009
50537-KRH-J00
PLATE, Right Rear ENGINE HANGER (UPPER)
$11.35¢5 675
1
#010
50710-KWV-003
HOLDER Assembly., HELMET
$43.88¢21 938
1
#011
90102-KRH-900
BOLT, FLANGE (8X56)
$4.06¢2 031
1
#012
90103-KRH-900
BOLT, FLANGE (8X88)
$5.65¢2 825
1
#013
90105-KRH-900
BOLT, FLANGE (10X110)
$7.03¢3 513
1
#014
90114-KRH-900
BOLT, BREAK OFF
$3.34¢1 669
1
#015
90154-KB7-700
BOLT, FLANGE (8X73)
$27.21¢13 606
1
#016
90156-KK6-000
BOLT, FLANGE (8X96)
$11.68¢5 838
1
#017
90156-KRH-780
BOLT, FLANGE (8X72)
$5.04¢2 519
1
#018
90510-KRH-900
WASHER (10MM)
$2.95¢1 475
1
#019
90651-KRH-900
BAND, WIRE
$0.29¢144
1
#020
94030-10200
NUT, HEX. (10MM)
$1.25¢625
1
#021
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#022
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#023
95701-08016-00
BOLT, FLANGE (8X16)
$2.31¢1 156
1
