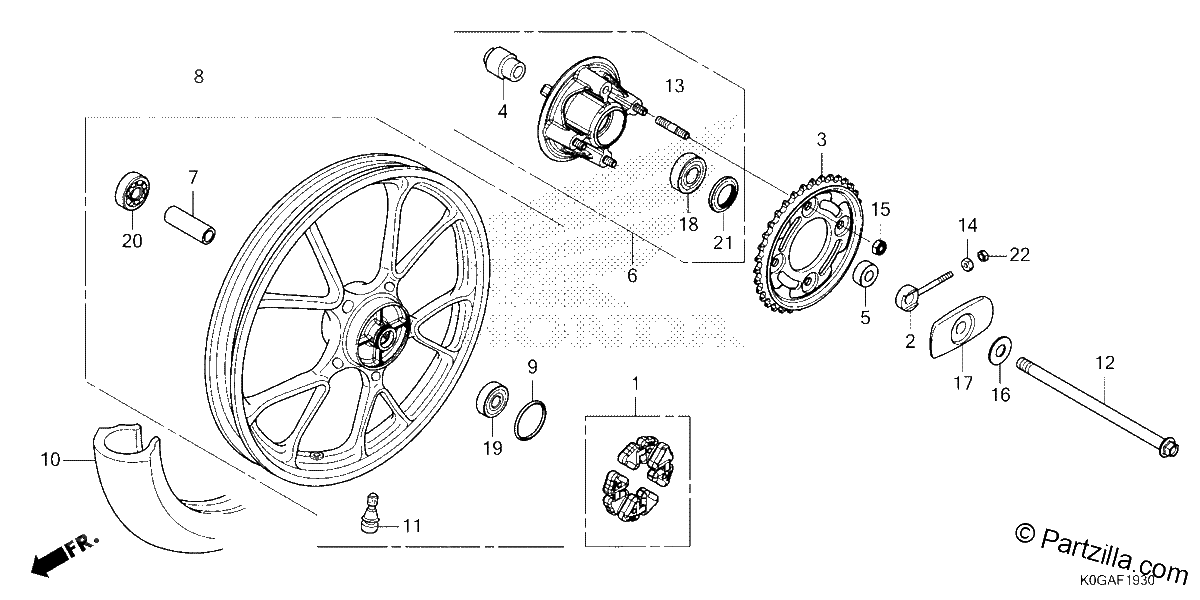

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$10.15¢5 077
#002
ADJUSTER, CHAIN
$10.15¢5 077
#003
SPROCKET, FINAL DRIVEN (35T)
$27.81¢13 904
#004
SLEEVE, Rear WHEEL
$7.29¢3 645
#005
COLLAR, Rear WHEEL SIDE
$9.65¢4 824
#006
FLANGE SUB-ASSY., FINAL DRIVEN
$91.77¢45 885
#007
COLLAR, Rear AXLE DISTANCE
$5.66¢2 829
#008
WHEEL SUB-Assembly., Rear. NHC14M (METAMORPHIC GRAY METALLIC)
$398.25¢199 123
#009
O-RING (40.5X3) (NIPPON DUST KEEPER)
$2.83¢1 414
#010
TIRE, Rear. (80/90-17M/C 50P) (IRC)
$62.81¢31 406
#011
VALVE, RIM (IRC)
$9.34¢4 669
#012
AXLE, Front WHEEL (FOR Rear.)
$13.51¢6 756
#013
BOLT, STUD (8X18)
$0.77¢385
#014
NUT, SPECIAL (6MM)
$1.53¢765
#015
NUT, U (8MM) (FUJI SEIMITSU)
$1.94¢972
#016
WASHER, RR. AXLE
$1.85¢926
#017
PLATE, SWINGARM SIDE
$14.31¢7 153
#018
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$20.54¢10 269
#018
BEARING, RADIAL BALL (6203UU) (FAG)
$20.54¢10 269
#019
BEARING, RADIAL BALL (6201U L)(NSK)
$4.81¢2 403
#019
BEARING, RADIAL BALL (6201U L)(FAG)
$4.32¢2 162
#020
BEARING, RADIAL BALL (6301U L)(FAG)
$7.72¢3 858
#020
BEARING, RADIAL BALL (6301U L)(NSK)
$10.56¢5 278
#021
DUST SEAL (27X40X4.5) (NOK)
$1.17¢586
#022
NUT, HEX. (6MM)
$1.54¢771
#022
NUT, HEX. (6MM)
$1.54¢771
