EXHAUST MUFFLER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

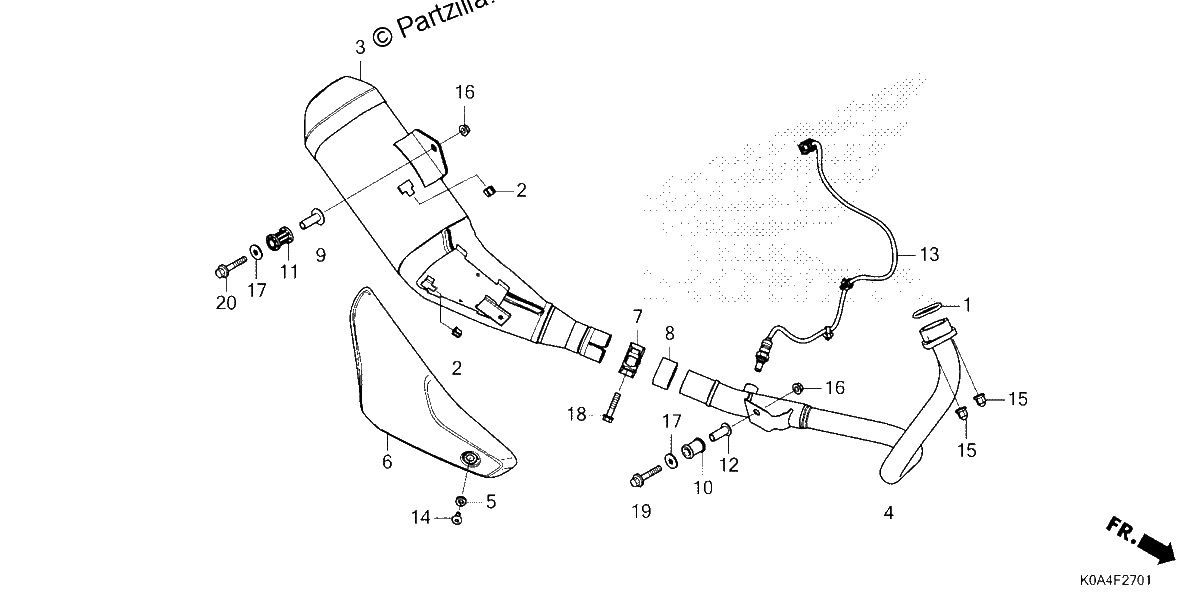

Diagrama de EXHAUST MUFFLER 2

Repuestos

#001
18291-MEB-670
GASKET, EX. PIPE
$5.96¢2 981
1
#002
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#003
18310-K0A-AB0
MUFFLER
$1616.76¢808 381
1
#004
18320-K0A-DB0
PIPE, EX.
$57.81¢28 906
1
#005
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#006
18355-K0A-DB0
COVER, MUFFLER
$45.41¢22 706
1
#007
18373-K0A-DB0
BAND, MUFFLER
$41.15¢20 575
1
#008
18392-KYJ-901
GASKET, MUFFLER
$8.25¢4 125
1
#009
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$6.08¢3 038
1
#010
18421-K75-A50
RUBBER, MUFFLER MOUNTING
$7.88¢3 938
1
#011
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.40¢1 200
1
#012
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#012
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#013
36532-K0A-DB1
SENSOR, OXYGEN
$131.25¢65 625
1
#014
90113-KYJ-710
SCREW, PAN (6X12)
$1.09¢544
1
#015
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#016
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#017
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#018
95701-08038-02
BOLT, FLANGE (8X38)
$5.15¢2 575
1
#019
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
#020
95801-08050-00
BOLT, FLANGE (8X50)
$3.65¢1 825
1
