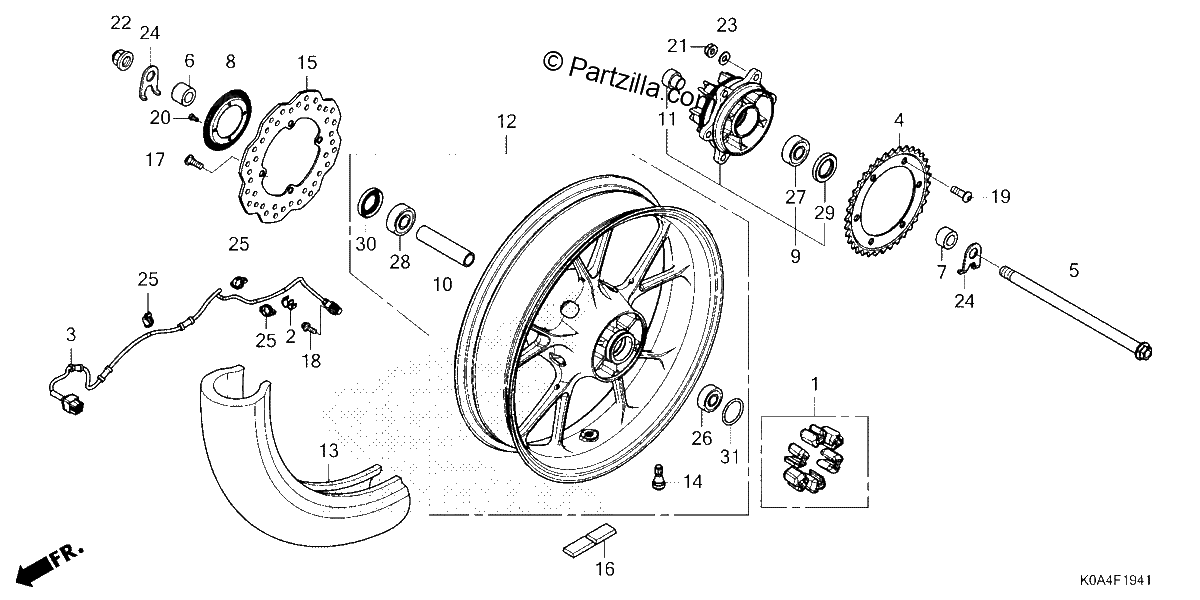

REAR WHEEL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$52.09¢26 044
#002
CLAMP, PIPE
$8.64¢4 319
#003
SENSOR, RR. WHEEL SPEED
$44.59¢22 294
#004
SPROCKET, FINAL DRIVEN (36T)
$45.10¢22 550
#005
AXLE, RR. WHEEL
$70.90¢35 450
#006
COLLAR, R. RR. WHEEL SIDE
$15.39¢7 694
#007
COLLAR, L. RR. WHEEL SIDE
$14.61¢7 306
#008
RING, RR. PULSER
$30.54¢15 269
#009
FLANGE SUB-ASSY., RR. DRIVEN *YR325M*(PYRITE BROWN METALLIC)
$145.94¢72 969
#009
FLANGE SUB-ASSY., RR. DRIVEN *NH303M*(MAT AXIS GRAY METALLIC)
$145.94¢72 969
#010
COLLAR, RR. WHEEL DISTANCE
$11.63¢5 813
#011
COLLAR B, Rear AXLE DISTANCE
$21.50¢10 750
#012
WHEEL SUB-ASSY., RR. *NH303M*(MAT AXIS GRAY METALLIC)
$363.01¢181 506
#012
WHEEL SUB-ASSY., RR. *YR325M*(PYRITE BROWN METALLIC)
$366.56¢183 281
#013
TIRE, RR. (150/60R17M/C 66H) (DUNLOP)
$185.52¢92 762
#014
VALVE, RIM (IRC)
$10.15¢5 075
#015
DISK, RR. BRAKE
$118.42¢59 213
#016
WEIGHT, BALANCE (20G)
$5.22¢2 613
#016
WEIGHT, BALANCE (15G)
$4.68¢2 338
#016
WEIGHT, BALANCE (10G)
$3.91¢1 956
#017
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
#018
BOLT, FLANGE (6X14)
$0.74¢369
#019
BOLT, SPROCKET FIXING
$1.74¢869
#020
BOLT, TORX (5X10)
$2.99¢1 494
#021
NUT, U (10MM) (FUJI SEIMITSU)
$3.83¢1 913
#022
NUT, U (16MM)
$5.67¢2 838
#023
WASHER (10MM)
$3.61¢1 806
#024
WASHER, RR. AXLE
$6.16¢3 081
#025
CLIP, CABLE (14MM)
$2.27¢1 138
#026
BEARING, RADIAL BALL (6203UU) (NTN)
$22.32¢11 163
#026
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$22.32¢11 163
#027
BEARING, RADIAL BALL L (6204UU) (NTN)
$237.97¢118 988
#028
BEARING, RADIAL BALL L (6303UU) (NTN)
$25.71¢12 856
#029
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#029
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#030
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#030
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#031
O-RING (48X2)
$1.57¢788
