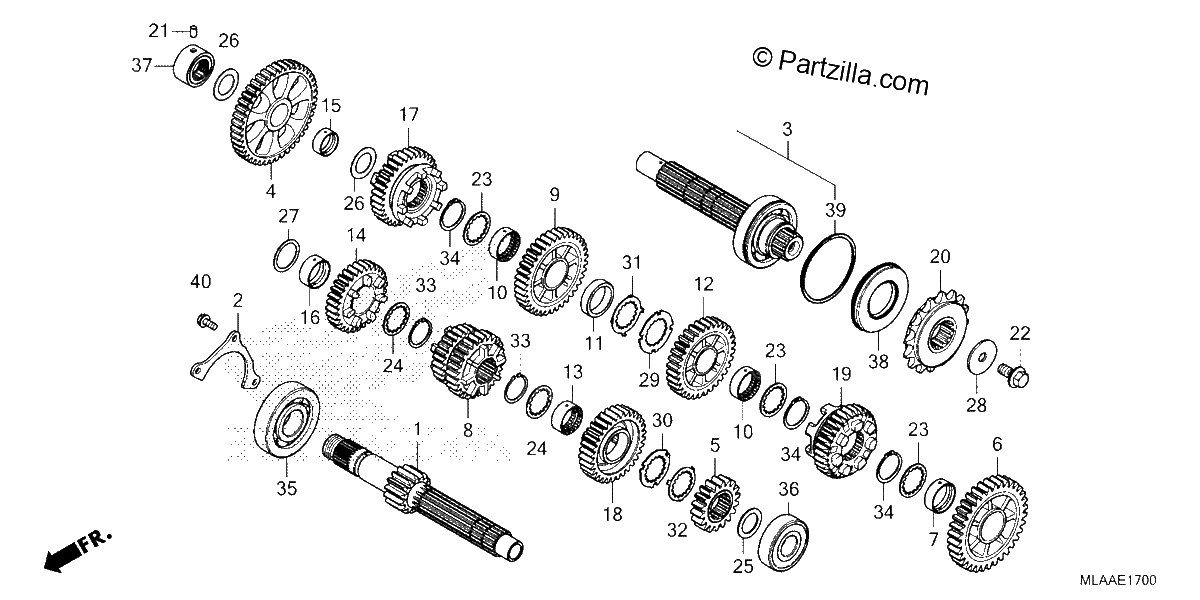

TRANSMISSION CMX1100A A2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (15T)
$217.30¢108 650
#002
PLATE, BEARING SETTING
$7.24¢3 619
#003
COUNTERSHAFT
$233.44¢116 719
#004
GEAR, COUNTERSHAFT FIRST (43T)
$161.19¢80 594
#005
GEAR, MAINSHAFT SECOND (18T)
$74.57¢37 287
#006
GEAR, COUNTERSHAFT SECOND (34T)
$148.36¢74 181
#007
COLLAR (30X11.2)
$30.55¢15 275
#008
GEAR, MAINSHAFT THIRD & FOURTH(25T/26T)
$185.47¢92 738
#009
GEAR, COUNTERSHAFT THIRD (37T)
$154.16¢77 081
#010
COLLAR, SPLINE (30X11)
$29.61¢14 806
#011
COLLAR (30X36X9.4)
$7.48¢3 738
#012
GEAR, COUNTERSHAFT FOURTH (32T)
$148.36¢74 181
#013
COLLAR, SPLINE (28X13.5)
$39.81¢19 906
#014
GEAR, MAINSHAFT FIFTH (31T)
$150.64¢75 319
#015
COLLAR (22X13)
$26.90¢13 450
#016
COLLAR (28X13)
$29.61¢14 806
#017
GEAR, COUNTERSHAFT FIFTH (33T)
$165.71¢82 856
#018
GEAR, MAINSHAFT SIXTH (36T)
$157.59¢78 794
#019
GEAR, COUNTERSHAFT SIXTH (35T)
$171.50¢85 750
#020
SPROCKET, DRIVE (16T)
$67.53¢33 763
#021
PIN, GEARSHIFT FORK GUIDE
$5.11¢2 556
#022
BOLT, SPECIAL (10MM)
$8.89¢4 444
#023
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
#024
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
#025
WASHER (22X32X1.5)
$3.28¢1 638
#026
WASHER B, THRUST (22MM) (BLUE)
$5.90¢2 950
#027
WASHER, THRUST (28MM)
$6.89¢3 444
#028
WASHER (10.2MM)
$7.08¢3 538
#029
WASHER, SPLINE (30MM)
$5.88¢2 938
#030
WASHER, SPLINE (28MM)
$7.15¢3 575
#031
WASHER, LOCK (30MM)
$8.65¢4 325
#032
WASHER, LOCK (28MM)
$7.15¢3 575
#033
CIRCLIP (28MM)
$4.54¢2 269
#034
CIRCLIP (30MM)
$5.42¢2 713
#035
BEARING, SPECIAL BALL (28X76X18)
$77.69¢38 844
#036
BEARING, RADIAL BALL (63/22U) (KOYO)
$35.42¢17 713
#037
BEARING, NEEDLE (22MM)
$31.41¢15 706
#038
OIL SEAL (39X72X8)
$14.88¢7 438
#039
RING, SNAP (72MM)
$4.81¢2 406
#040
BOLT, FLANGE (6X14)
$1.23¢613
