FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

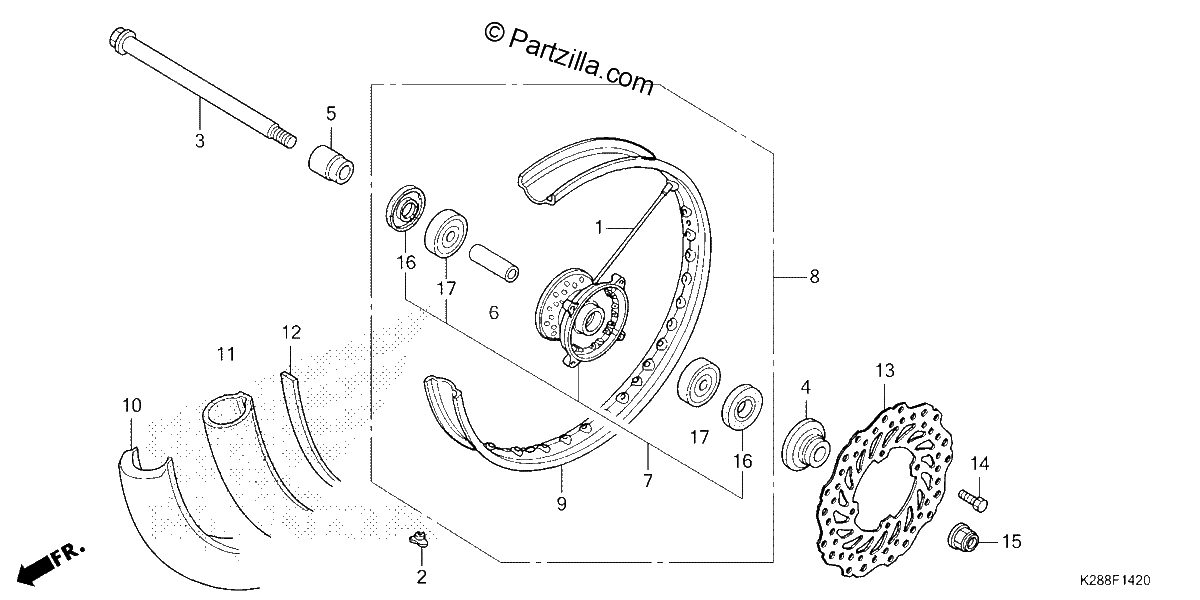

Diagrama de FRONT WHEEL

Repuestos

#001
06440-K28-920
SPOKE SET, FR. (B10X216.0)
$4.99¢2 496
1
#002
42714-KA3-710
CAP, VALVE
$11.18¢5 589
1
#003
44301-KYK-910
AXLE, FR. WHEEL
$26.38¢13 191
1
#004
44310-K28-910
COLLAR, FR. WHEEL SIDE
$17.57¢8 786
1
#005
44311-KYK-910
COLLAR, FR. WHEEL SIDE
$8.46¢4 232
1
#006
44620-KYK-910
COLLAR, FR. AXLE DISTANCE
$12.73¢6 365
1
#007
44635-K28-910
HUB SUB-ASSY., FR.
$247.19¢123 596
1
#008
44650-K28-306
WHEEL SUB-ASSY., FR. (COO)
$504.46¢252 230
1
#008
44650-K28-920
WHEEL SUB-Assembly., Front.
$504.46¢252 230
1
#009
44701-K28-920
RIM, FR. WHEEL (19X1.40)
$63.09¢31 544
1
#010
44711-K28-922
TIRE, Front. (70/100-19M/C 42M) (CST)
$103.47¢51 733
1
#011
44712-K28-921
TUBE, TIRE (70/100-19) (CST)
$35.48¢17 739
1
#012
44713-K28-921
FLAP, TIRE (CST)
$5.46¢2 731
1
#013
45351-K28-A61
DISK, FR. BRAKE
$208.54¢104 271
1
#014
90105-KAE-870
BOLT, DISK (6X17)
$3.36¢1 679
1
#015
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.36¢1 679
1
#016
90745-GC4-701
DUST SEAL (32X21X5) (NOK)
$5.63¢2 818
1
#016
90745-GC4-702
DUST SEAL (32X21X5.5) (ARAI)
$5.63¢2 818
1
#017
91051-KWW-C51
BEARING, RADIAL BALL (6201UU) (NTN)
$22.11¢11 057
1
