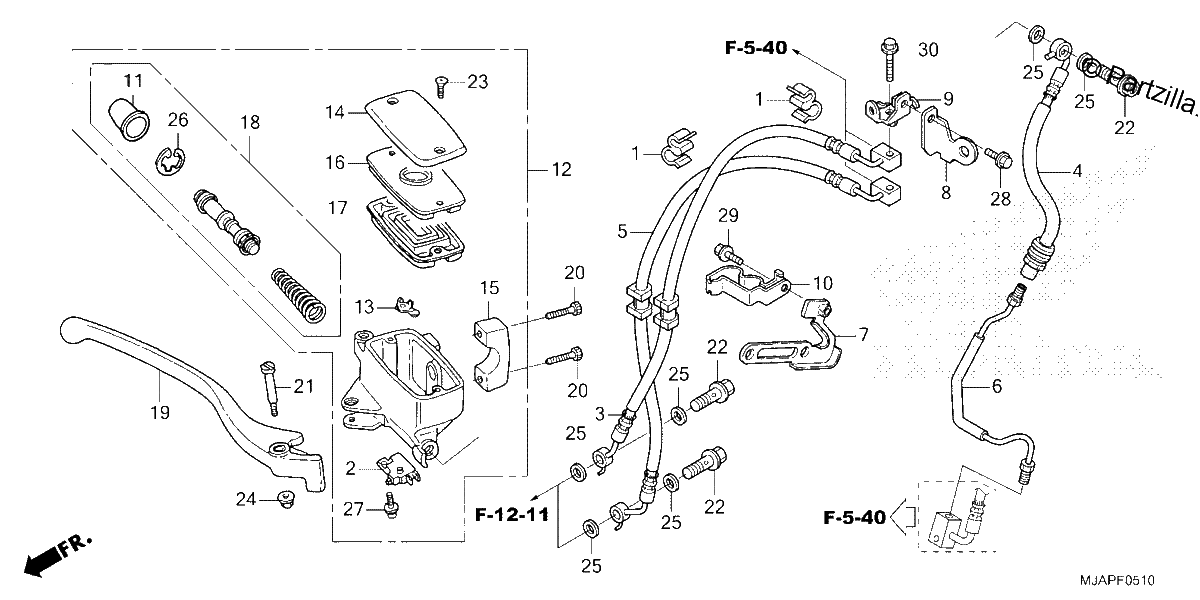

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, PIPE
$7.95¢3 973
#002
SWITCH ASSY., FR. STOP
$15.36¢7 682
#003
SUB-HOSE, Rear BRAKE
$54.75¢27 376
#004
HOSE A, FR. BRAKE
$37.03¢18 515
#005
HOSE B, Front BRAKE
$56.20¢28 100
#006
PIPE C, FR. BRAKE
$31.75¢15 876
#007
BRACKET, R. FR. HOSE CLIP
$22.02¢11 011
#008
STAY A, FR. BRAKE HOSE
$17.66¢8 832
#009
STAY B, FR. BRAKE HOSE
$22.45¢11 224
#010
CLAMP, FR. BRAKE HOSE SENSOR
$22.30¢11 149
#011
BOOT
$13.10¢6 549
#012
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$289.42¢144 710
#013
PROTECTOR
$4.78¢2 392
#014
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#015
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
#016
PLATE, DIAPHRAGM
$11.37¢5 687
#017
DIAPHRAGM
$16.26¢8 131
#018
MASTER CYLINDER SET
$49.74¢24 869
#019
LEVER, R. HANDLE
$19.10¢9 551
#020
BOLT, SOCKET (6X22)
$1.17¢586
#021
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
#022
BOLT, OIL (10X22)
$8.18¢4 088
#023
SCREW, FLAT (4X12)
$1.07¢535
#023
SCREW, FLAT (4X12)
$1.07¢535
#024
NUT, CAP (6MM)
$2.54¢1 271
#025
WASHER, OIL BOLT
$4.46¢2 231
#026
CIRCLIP, INNER (18.8MM)
$0.80¢402
#027
SCREW-WASHER (4X12)
$1.59¢793
#027
SCREW-WASHER (4X12)
$1.59¢793
#028
BOLT, FLANGE (6X10)
$1.92¢960
#029
BOLT, FLANGE (6X12)
$2.75¢1 374
#030
BOLT, FLANGE (6X32)
$1.83¢914
