RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

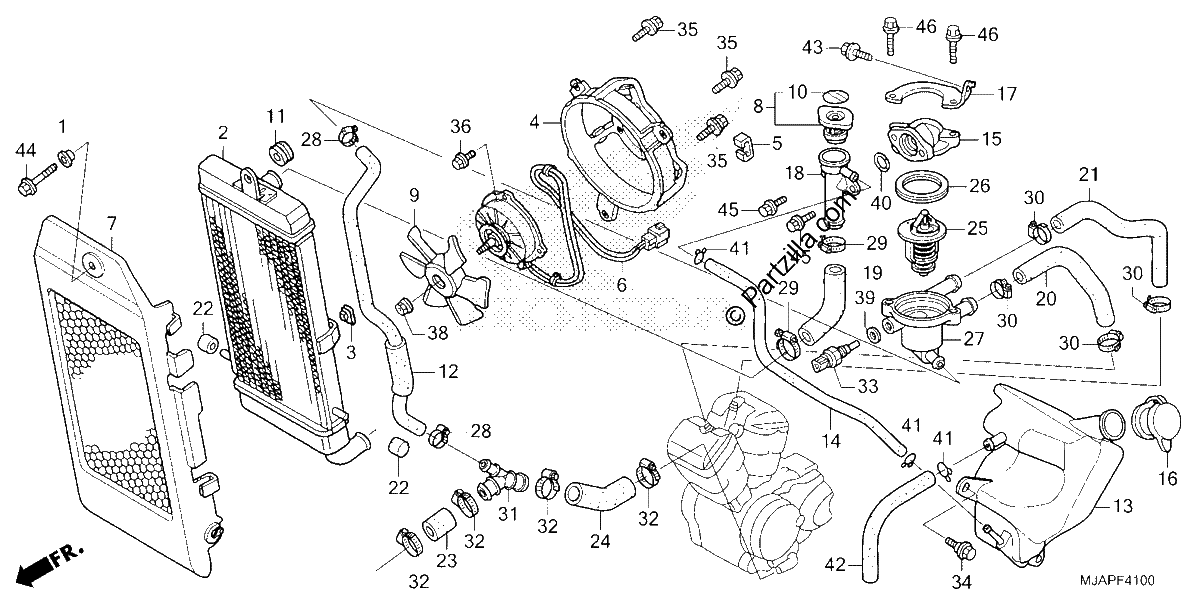

Diagrama de RADIATOR

Repuestos

#001
19052-MEG-H10
COLLAR, RADIATOR MOUNTING
$7.50¢3 749
1
#002
19010-MFE-641
RADIATOR
$584.82¢292 411
1
#002
19010-MFE-305
RADIATOR (COO)
$584.82¢292 411
1
#003
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#004
19015-MBA-003
SHROUD
$63.70¢31 849
1
#005
19017-PK1-004
CLIP, HARNESS (TOYO)
$11.42¢5 710
1
#006
19030-MFE-641
MOTOR ASSY., FAN
$305.77¢152 887
1
#007
19032-MEG-H10
GRILLE, RADIATOR
$113.59¢56 793
1
#008
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#009
19040-MF5-751
FAN, COOLING (TOYO)
$74.88¢37 438
1
#010
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#011
19051-KA3-710
RUBBER, RADIATOR MOUNTING
$5.63¢2 818
1
#012
19071-MFE-640
HOSE, BYPASS
$28.28¢14 139
1
#013
19101-MEG-000
TANK, RESERVE
$35.65¢17 825
1
#014
19102-MEG-000
HOSE, RESERVE TANK
$10.32¢5 158
1
#015
19103-MBA-000
CAP, THERMOSTAT
$58.29¢29 147
1
#016
19104-MB0-700
CAP, RESERVE TANK
$12.99¢6 498
1
#017
19105-MFE-640
STAY, THERMOSTAT CASE
$4.98¢2 490
1
#018
19106-MFE-641
NECK, FILLER
$38.65¢19 326
1
#019
19107-MFE-640
HOSE, RADIATOR (UPPER)
$11.58¢5 790
1
#020
19108-MFE-640
HOSE, FR. OUTLET WATER
$13.39¢6 693
1
#021
19110-MFE-640
HOSE, Rear OUTLET WATER
$16.13¢8 067
1
#022
19112-MF5-840
MOUNT, RADIATOR (LOWER)
$5.70¢2 852
1
#023
19115-MEG-A60
HOSE A, RADIATOR (LOWER)
$15.04¢7 521
1
#024
19116-MEG-A60
HOSE B, RADIATOR (LOWER)
$18.81¢9 407
1
#025
19300-MCH-A00
THERMOSTAT ASSY.
$51.03¢25 513
1
#026
19305-KV3-010
RUBBER, THERMOSTAT
$6.76¢3 381
1
#027
19311-MFE-640
CASE, THERMOSTAT
$68.29¢34 143
1
#028
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$11.07¢5 537
1
#029
19505-ML3-770
CLAMP, WATER HOSE
$7.89¢3 944
1
#030
19506-KS6-700
CLAMP B, WATER HOSE
$8.37¢4 186
1
#031
19507-MFE-640
JOINT, THREE WAY HOSE
$7.31¢3 657
1
#032
19509-MM5-003
CLAMP, RADIATOR HOSE
$14.60¢7 302
1
#033
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$33.09¢16 543
1
#034
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#035
90120-KCR-003
BOLT-WASHER (6X16)
$4.90¢2 449
1
#036
90196-MBB-003
BOLT, FLANGE (5X10)
$3.15¢1 576
1
#038
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#039
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.09¢1 547
1
#040
94608-30000
O-RING (23X2.4)
$1.41¢707
1
#041
95002-70000
CLIP, TUBE (C11)
$1.94¢972
1
#042
95005-70003-30M
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$25.22¢12 610
1
#043
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#044
95701-06028-07
BOLT, FLANGE (6X28)
$1.33¢667
1
#045
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#046
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
