THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

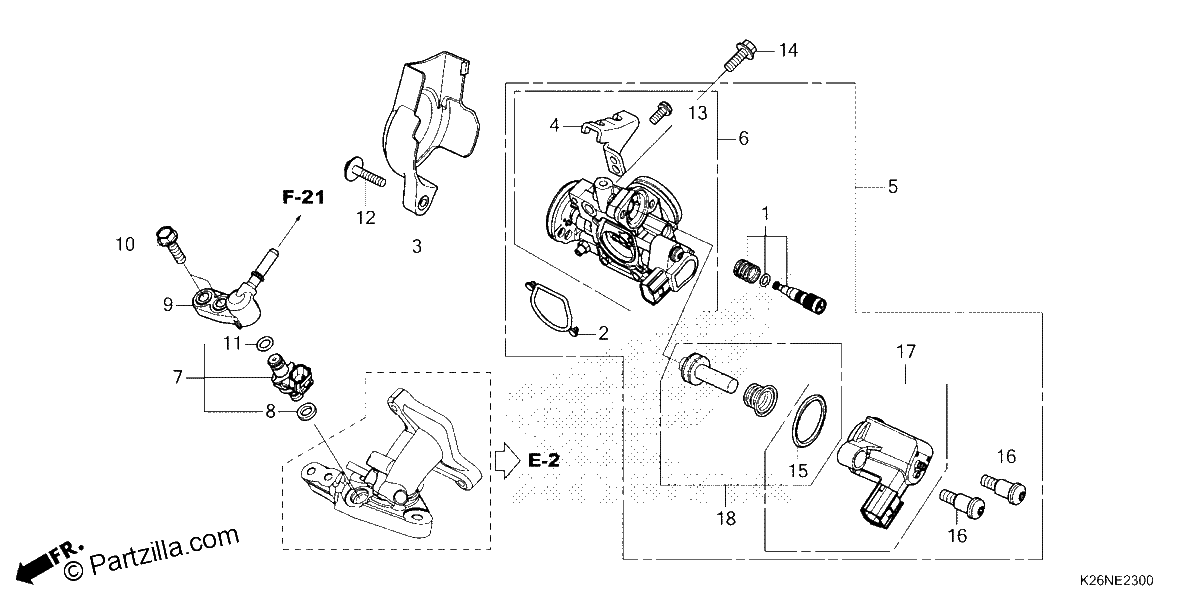

Diagrama de THROTTLE BODY

Repuestos

#001
16016-K03-H11
SCREW SET
$2.48¢1 238
1
#002
16075-KYZ-711
O-RING
$4.39¢2 194
1
#003
16157-K26-G00
COVER, THROTTLE
$2.15¢1 075
1
#004
16169-K18-901
STAY, WIRE
$17.59¢8 794
1
#005
16400-K26-G11
BODY Assembly., THROTTLE (GQYTB A)
$159.04¢79 519
1
#006
16410-K26-G11
BODY SET
$101.16¢50 581
1
#007
16450-K76-T61
INJECTOR ASSY., FUEL
$45.91¢22 956
1
#008
16472-KPC-D50
RING, SEAL
$2.75¢1 375
1
#009
17560-K26-G00
JOINT, INJECTOR
$45.32¢22 662
1
#010
90001-K26-900
BOLT, FLANGE (6X22)
$7.81¢3 906
1
#011
91301-GGL-J01
O-RING (6.3X2.2)
$12.15¢6 075
1
#012
93414-05025-08
BOLT-WASHER (5X25)
$1.19¢594
1
#013
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#013
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
#014
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
#015
16077-KVB-S51
O-RING (1.9X20.4)
$1.76¢881
1
#016
16081-KPH-701
SCREW, TORX (5X8.7)
$3.66¢1 831
1
#017
16480-KVB-S51
SOLENOID
$53.11¢26 556
1
#018
16485-GGZ-J01
SEAT SET
$4.94¢2 469
1
