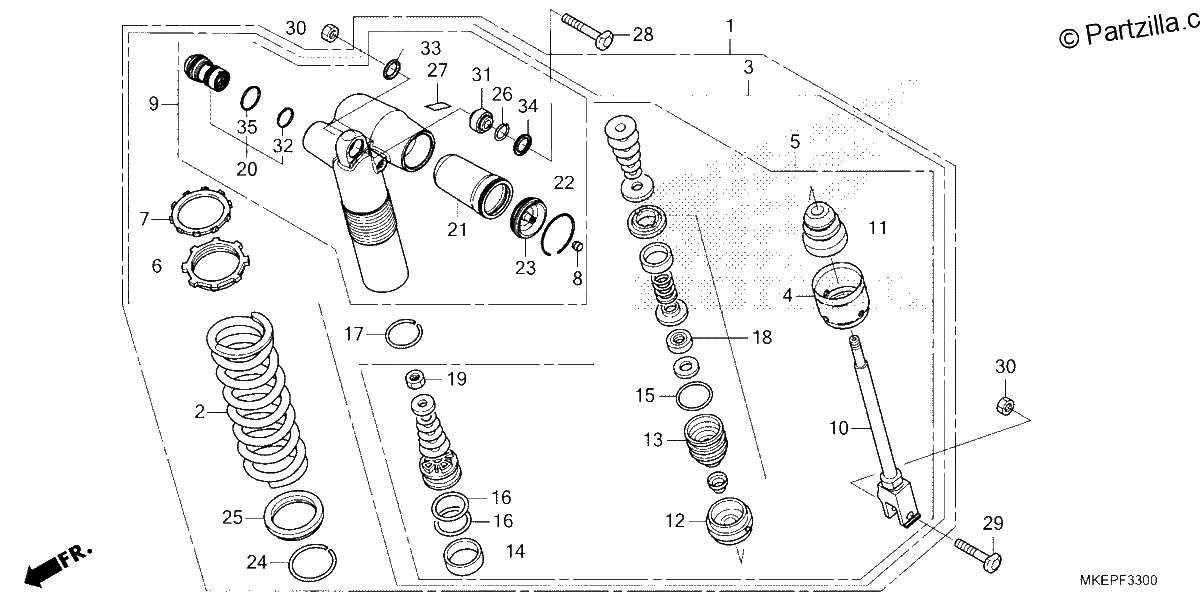

REAR SHOCK ABSORBER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CUSHION Assembly., Rear.
$1612.47¢806 238
#002
SPRING, RR. SHOCK ABSORBER (54N/MM)
$300.06¢150 031
#002
SPRING, RR. SHOCK ABSORBER (52N/MM)
$285.13¢142 563
#002
SPRING, RR. SHOCK ABSORBER (56N/MM)
$285.13¢142 563
#003
DAMPER, Rear.
$1207.25¢603 625
#004
STOPPER, SPRING SEAT
$30.67¢15 337
#005
ROD, PISTON
$577.59¢288 794
#006
ADJUSTER, SPRING
$38.59¢19 294
#007
NUT, ADJUSTER
$18.71¢9 356
#008
CAP, AIR VALVE
$6.13¢3 063
#009
CASE, DAMPER
$766.16¢383 081
#010
ROD
$505.68¢252 838
#011
RUBBER, STOPPER
$18.25¢9 125
#012
PLATE, END
$18.50¢9 250
#013
CASE, ROD GUIDE
$59.00¢29 500
#014
RING, PISTON
$20.26¢10 131
#015
O-RING (3.5X43.7)
$4.80¢2 400
#016
O-RING (42.5X2.0)
$4.19¢2 094
#017
RING, STOPPER
$3.05¢1 525
#018
OIL SEAL SET
$28.85¢14 425
#019
NUT, HEX. (12MM)
$3.65¢1 825
#020
ADJUSTER, COMPRESSION DAMPING FORCE
$241.95¢120 975
#021
BLADDER
$22.64¢11 319
#022
RING, STOPPER
$3.73¢1 863
#023
CAP, CHAMBER
$35.60¢17 800
#024
RING, STOPPER
$7.48¢3 738
#025
SEAT, SPRING
$31.35¢15 675
#026
RING, STOPPER
$4.76¢2 381
#027
LABEL, RR. DAMPER WARNING
$8.66¢4 331
#028
BOLT, CUSHION (UPPER) (10X53)
$3.65¢1 825
#029
BOLT, CUSHION (LOWER) (10X43.5)
$10.53¢5 263
#030
NUT, U (10MM)
$4.54¢2 269
#031
BEARING, SPHERICAL (10)
$40.66¢20 331
#032
O-RING (26.2X1.9)
$3.71¢1 856
#033
DUST SEAL, RR. CUSHION PIVOT
$5.91¢2 956
#034
DUST SEAL (16X26X3)
$6.72¢3 363
#035
O-RING (31.2X1.9)
$4.07¢2 037
