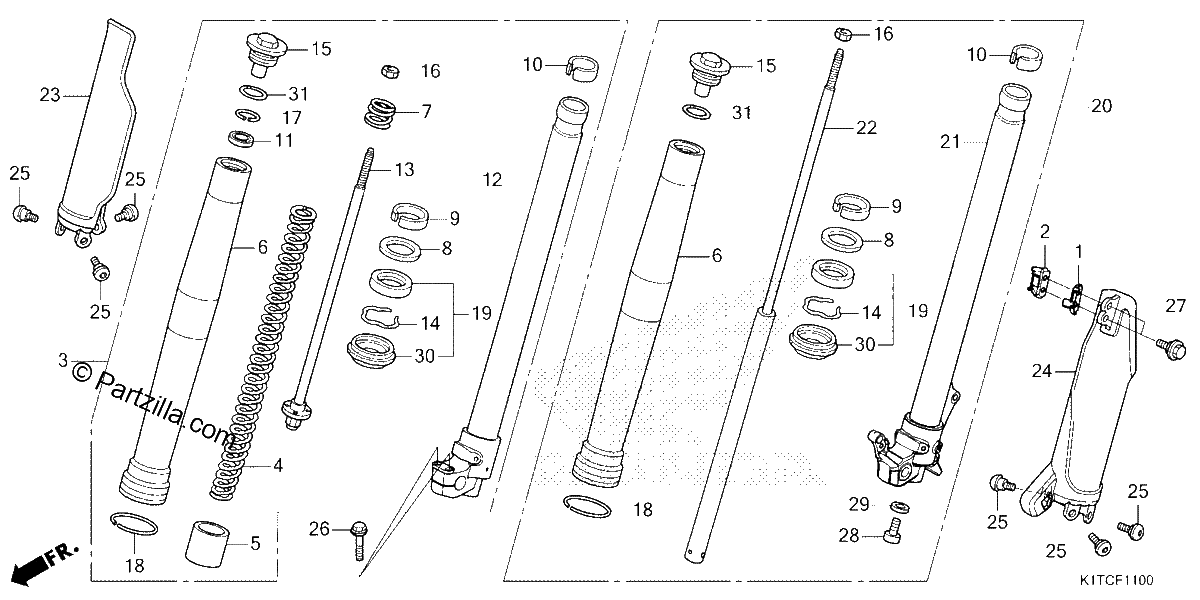

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$1.72¢862
#001
CLAMP A, BRAKE HOSE
$8.75¢4 375
#002
CLAMP B, BRAKE HOSE
$2.41¢1 206
#002
CLAMP B, BRAKE HOSE
$10.80¢5 400
#003
FORK Assembly., Right Front. (SHOWA)
$798.01¢399 006
#003
FORK ASSY., R. FR. (SHOWA)
$797.75¢398 875
#003
FORK ASSY., R. FR. (SHOWA)
$733.10¢366 550
#004
SPRING, Front FORK
$91.11¢45 556
#004
SPRING, Front FORK
$86.16¢43 081
#004
SPRING, FR. FORK
$55.48¢27 738
#005
COLLAR, SPRING
$10.61¢5 306
#006
TUBE (OUTER)
$511.86¢255 931
#007
SPRING B, REBOUND
$10.32¢5 163
#008
RING, BACK-UP
$11.29¢5 644
#009
BUSH, GUIDE
$8.58¢4 288
#010
BUSH, SLIDER
$17.22¢8 612
#011
SEAT, STOPPER
$8.26¢4 131
#012
PIPE, Right SLIDE
$319.65¢159 825
#013
ROD
$41.63¢20 813
#013
ROD
$34.42¢17 213
#014
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
#015
BOLT, FR. FORK
$64.78¢32 388
#016
NUT, HEX. (10MM)
$3.73¢1 863
#017
RING, STOPPER
$13.53¢6 763
#018
RING, WEAR
$7.97¢3 988
#019
SEAL SET, FR. FORK
$29.75¢14 875
#020
FORK ASSY., L. FR. (SHOWA)
$804.94¢402 469
#020
FORK ASSY., L. FR. (SHOWA)
$796.29¢398 144
#020
FORK Assembly., L Front. (SHOWA)
$794.01¢397 006
#021
PIPE, L SLIDE
$450.96¢225 481
#021
PIPE, L. SLIDE
$437.89¢218 944
#022
DAMPER, FR.
$124.13¢62 063
#022
DAMPER, FR.
$127.56¢63 781
#023
PROTECTOR, R. FR. FORK (TYPE3)
$39.24¢19 619
#024
PROTECTOR, L. FR. FORK (TYPE3)
$44.59¢22 294
#024
PROTECTOR, L. FR. FORK (TYPE3)
$120.86¢60 431
#025
BOLT, PROTECTOR (6MM)
$0.96¢481
#026
BOLT, FLANGE (8X40)
$3.43¢1 713
#027
BOLT, FLANGE (6MM)
$0.70¢350
#028
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
#029
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#030
DUST SEAL
$17.63¢8 813
#031
O-RING (44.7X2.4)
$4.76¢2 381
