CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

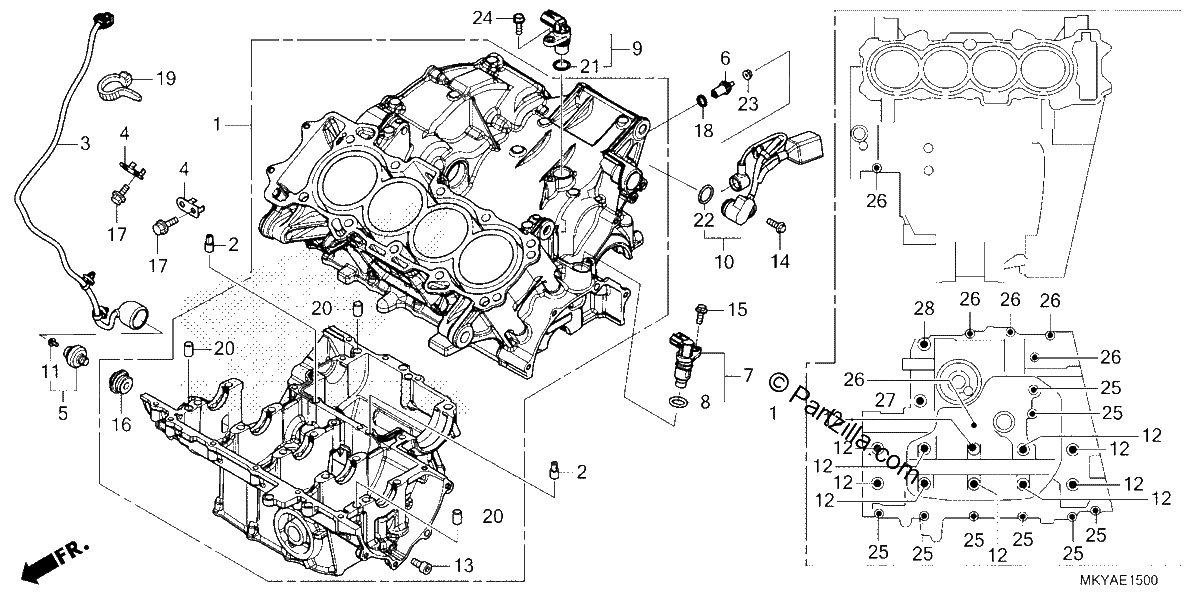

Diagrama de CRANKCASE

Repuestos

#001
11000-MKY-E80
CRANKCASE SET
$1488.63¢744 313
1
#002
11104-MJE-D00
ORIFICE (1.2MM)
$3.38¢1 688
1
#003
32102-MKN-D10
SUB-HARNESS, OIL PRESSURE
$9.80¢4 900
1
#004
32159-MJE-D00
STAY, HARNESS CLIP
$1.39¢694
1
#005
35500-MEH-661
SWITCH ASSY., OIL PRESSURE (DENSO)
$62.93¢31 463
1
#006
35600-MKF-D41
SWITCH ASSY., NEUTRAL
$27.85¢13 925
1
#007
37500-K0Z-D11
SENSOR Assembly., CRANK
$35.39¢17 694
1
#008
37501-K2Y-J01
O-RING
$1.27¢638
1
#009
37700-MJE-D01
SENSOR Assembly., SPEED (TDK-EPC)
$33.05¢16 525
1
#010
38800-MKY-E21
SENSOR Assembly., ANGLE (350DEG)
$93.44¢46 719
1
#011
90002-PA6-003
BOLT-WASHER (4X8) (DENSO)
$7.54¢3 769
1
#012
90004-MKY-E21
BOLT, UBS (8X98)
$2.17¢1 088
1
#013
90010-MEL-000
BOLT, SOCKET (8X12)
$2.44¢1 219
1
#014
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.71¢1 856
1
#015
90026-GHB-640
BOLT, FLANGE (6X16)
$2.76¢1 381
1
#016
90048-MFL-000
BOLT, SEALING (22MM)
$12.24¢6 119
1
#017
90101-MCZ-D00
BOLT, FLANGE (6X14)
$1.93¢963
1
#018
90443-MJ6-000
WASHER, NEUTRAL
$2.48¢1 238
1
#019
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#020
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#021
91303-KF0-003
O-RING (14.8X2.4) (ARAI)
$2.27¢1 138
1
#022
91310-MGE-D01
O-RING (16.5X2.5)
$6.19¢3 094
1
#023
94050-04000
NUT, FLANGE (4MM)
$1.57¢788
1
#024
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#025
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
#026
95701-06050-00
BOLT, FLANGE (6X50)
$2.66¢1 331
1
#027
95701-08045-00
BOLT, FLANGE (8X45)
$1.89¢944
1
#028
95701-10075-00
BOLT, FLANGE (10X75)
$3.14¢1 569
1
