STARTER MOTOR 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

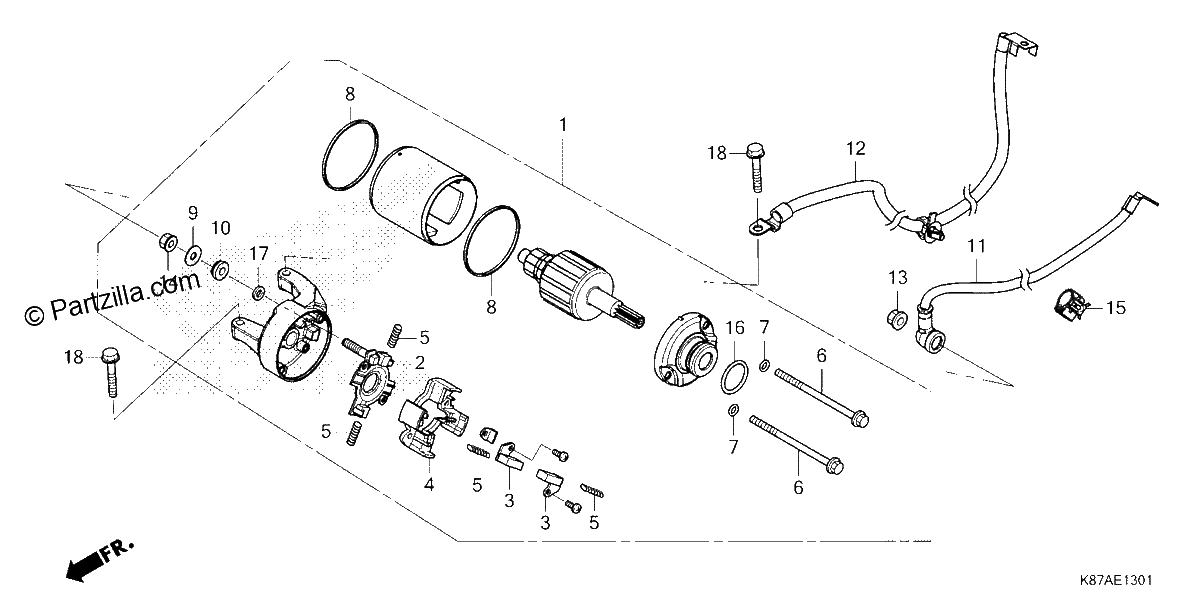

Diagrama de STARTER MOTOR 2

Repuestos

#001
31200-K0A-DB1
STARTER MOTOR Assembly. (LUCAS)
$148.75¢74 375
1
#002
31201-K0Z-901
BRUSH SET (+)
$15.86¢7 931
1
#003
31202-K0Z-901
BRUSH SET (-)
$7.25¢3 625
1
#004
31203-K0Z-901
HOLDER, BRUSH
$2.97¢1 487
1
#005
31204-K0Z-901
SPRING, BRUSH
$0.47¢238
1
#006
31205-K0Z-901
BOLT, THROUGH
$0.74¢369
1
#007
31206-K0Z-901
O-RING
$0.16¢81
1
#008
31207-K0Z-901
SEAL, YOKE
$1.89¢944
1
#009
31210-K0Z-901
WASHER, PLAIN
$0.14¢69
1
#010
32112-K0Z-901
INSULATOR, BUSH (OUTER)
$0.65¢325
1
#011
32410-K2Y-A00
CABLE, STARTER MOTOR
$19.80¢9 900
1
#012
32601-K87-A00
CABLE, BATTERY GROUND
$17.60¢8 800
1
#013
90071-KTE-D00
NUT-WASHER (6MM)
$0.22¢112
1
#014
90201-K0Z-901
NUT, FLANGE
$0.26¢131
1
#015
90690-GHB-651
CLIP, CABLE (15MM)
$2.81¢1 406
1
#016
91309-K0Z-901
O-RING (SPIGOT)
$0.49¢244
1
#017
91320-K0Z-901
RING, SEAL
$0.38¢188
1
#018
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
