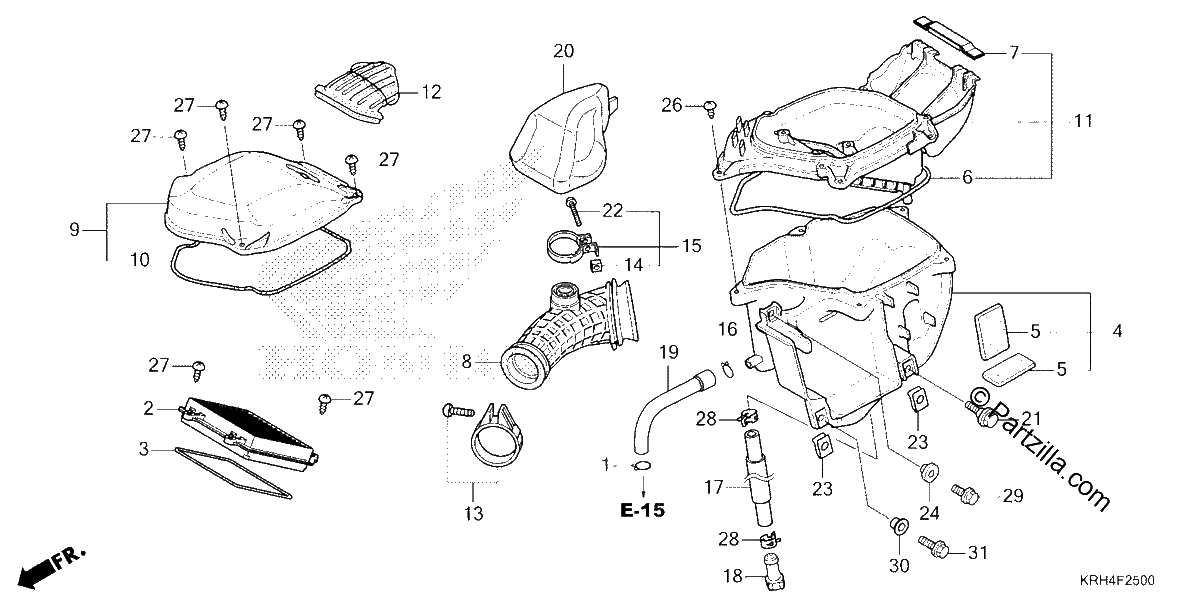

AIR CLEANER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLIP, TUBE
$3.71¢1 857
#002
ELEMENT, AIR CLEANER
$23.63¢11 816
#003
SEAL, SEPARATOR
$5.78¢2 892
#004
CASE SUB-ASSY., AIR CLEANER
$105.86¢52 929
#005
SPACER B, BATTERY
$3.94¢1 972
#006
SEAL, AIR CLEANER
$7.13¢3 565
#007
RUBBER, AIR CLEANER
$9.50¢4 749
#008
TUBE, AIR CLEANER CONNECTING
$42.20¢21 103
#009
COVER SUB-Assembly., AIR CLEANER
$30.19¢15 094
#010
SEAL, AIR CLEANER (DIRTY)
$4.68¢2 340
#011
SEPARATOR SUB-Assembly., AIR CLEANER
$86.51¢43 257
#012
DUCT, INLET
$30.96¢15 479
#013
BAND, AIR CLEANER CONNECTING TUBE (44)
$8.97¢4 485
#014
NUT, SQUARE (5MM)
$1.45¢724
#015
BAND, AIR CLEANER CONNECTING TUBE (28.5MM)
$5.09¢2 547
#016
CLIP, BREATHER TUBE
$3.04¢1 518
#017
TUBE, BREATHER DRAIN
$6.05¢3 024
#018
PLUG, BREATHER TUBE
$4.17¢2 087
#019
TUBE, BREATHER
$9.59¢4 796
#020
RESONATOR
$11.21¢5 606
#021
BOLT, FLANGE (6MM)
$3.30¢1 650
#022
SCREW, PAN (5X22)
$0.79¢397
#023
NUT, CLIP (6MM)
$2.27¢1 133
#024
WASHER, CHAIN CASE
$2.32¢1 162
#026
SCREW, TAPPING (5X16)
$1.07¢535
#027
SCREW, TAPPING (5X25)
$1.15¢575
#028
CLAMP, TUBE (D10.5)
$2.18¢1 092
#029
BOLT, FLANGE (6X12)
$1.92¢960
#030
COLLAR, FR. FENDER SETTING (A)
$2.42¢1 208
#031
BOLT, FLANGE (6X16)
$1.92¢960
