REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

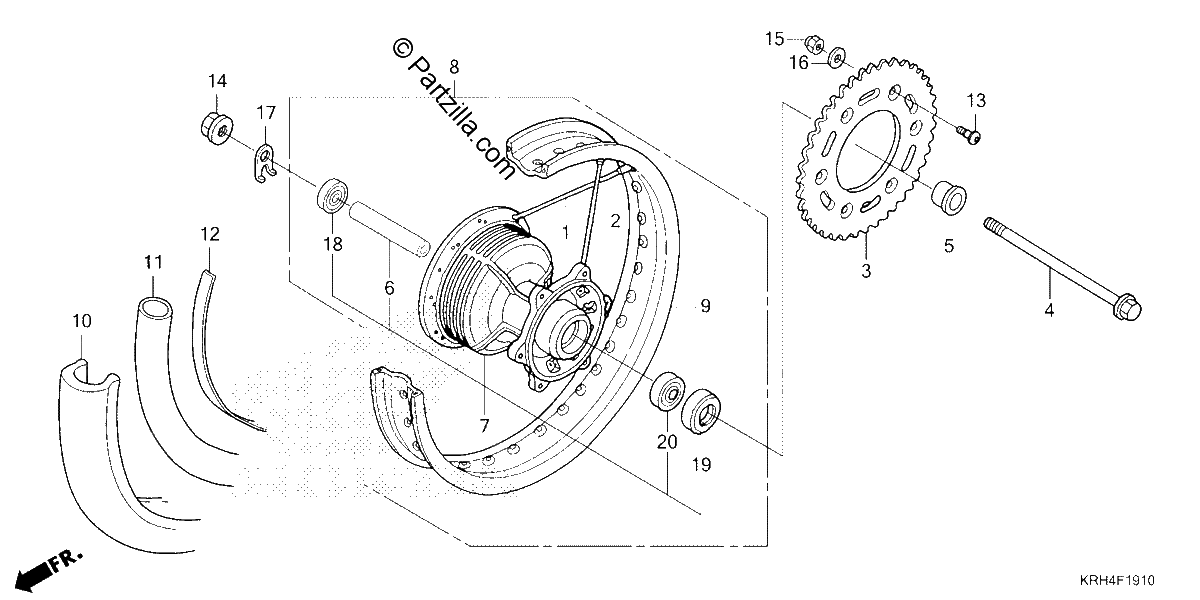

Diagrama de REAR WHEEL

Repuestos

#001
06420-KRH-900
SPOKE SET A, Rear. (A10X166) (Right SIDE)
$4.46¢2 231
1
#002
06421-KRH-900
SPOKE SET B, Rear. (A10X184) (L SIDE)
$2.73¢1 363
1
#003
41201-KRH-650
SPROCKET, FINAL DRIVEN (49T)
$56.54¢28 269
1
#004
42301-KRH-900
AXLE, RR. WHEEL
$29.88¢14 938
1
#005
42312-KRH-900
COLLAR, Rear WHEEL
$15.71¢7 856
1
#006
42620-KRH-900
COLLAR, Rear AXLE DISTANCE
$14.00¢7 000
1
#007
42635-K79-E20ZA
HUB SUB-Assembly., Rear. NH364M (SHEEN SILVER METALLIC)
$444.65¢222 325
1
#008
42650-KRH-650ZA
WHEEL SUB-ASSY., RR. *NH364M*(SHEEN SILVER METALLIC)
$527.44¢263 719
1
#009
42701-KRH-900
RIM, Rear WHEEL (2.15X17)
$106.11¢53 056
1
#010
42711-KRH-902
TIRE, Rear. (110/90-17 M/C 60P) (CST)
$124.40¢62 200
1
#011
42712-KRH-901
TUBE, TIRE (CHENG SHIN)
$32.00¢16 000
1
#012
42713-KRH-901
FLAP, TIRE (CHENG SHIN)
$5.42¢2 713
1
#013
90125-KZJ-900
BOLT, SPROCKET FIXING
$1.82¢913
1
#014
90307-KRH-901
NUT, FLANGE (16MM)
$7.40¢3 700
1
#015
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
1
#015
90309-KF0-003
NUT, FLANGE (8MM)
$4.06¢2 031
1
#015
90309-KRH-901
NUT, U (8MM)
$2.82¢1 412
1
#016
90511-KRH-780
WASHER (8MM)
$1.38¢688
1
#017
90559-K79-E00
WASHER, Rear AXLE
$9.74¢4 869
1
#018
91051-KVK-901
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$10.90¢5 450
1
#018
91053-MAY-003
BEARING, RADIAL BALL (6203UU)
$37.81¢18 906
1
#019
91253-033-003
OIL SEAL (25X47X6.5)
$7.21¢3 606
1
#020
91051-MGZ-J01
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$25.54¢12 769
1
#020
91054-MT6-831
BEARING, RADIAL BALL (6303UU) (NSK)
$44.49¢22 244
1
