FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

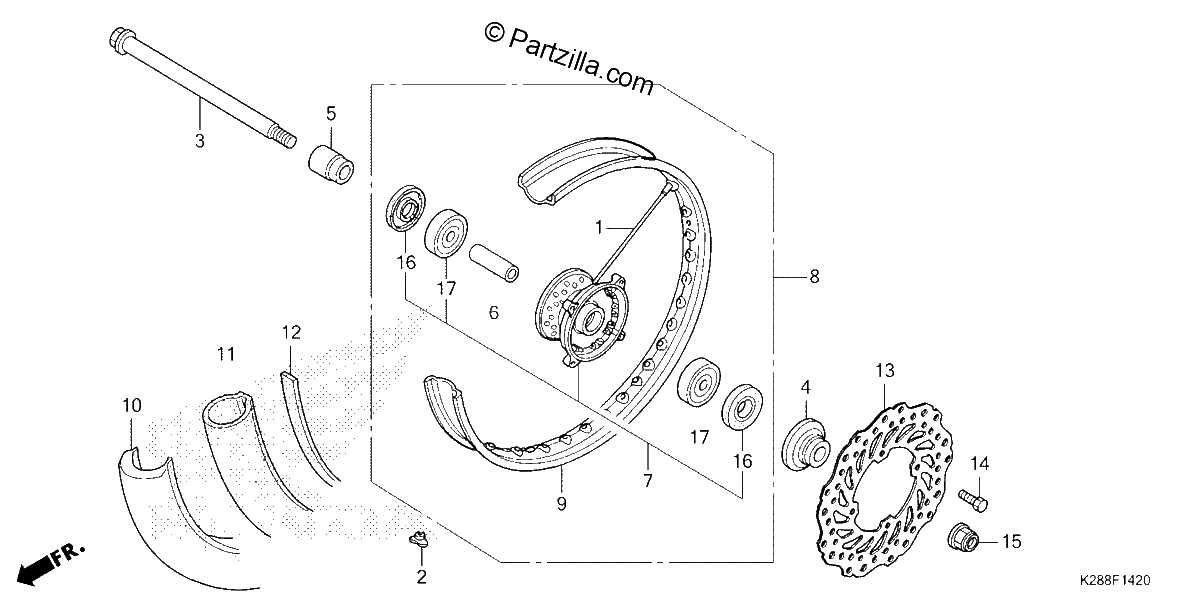

Diagrama de FRONT WHEEL

Repuestos

#001
06440-K28-910
SPOKE SET, FR. (B10X191.0)
$5.17¢2 588
1
#002
42714-KA3-710
CAP, VALVE
$12.15¢6 075
1
#003
44301-KYK-910
AXLE, FR. WHEEL
$28.68¢14 338
1
#004
44310-K28-910
COLLAR, FR. WHEEL SIDE
$19.10¢9 550
1
#005
44311-KYK-910
COLLAR, FR. WHEEL SIDE
$9.20¢4 600
1
#006
44620-KYK-910
COLLAR, FR. AXLE DISTANCE
$13.84¢6 919
1
#007
44635-K28-910
HUB SUB-ASSY., FR.
$268.69¢134 344
1
#008
44650-K28-305
WHEEL SUB-ASSY., FR. (COO)
$541.74¢270 869
1
#008
44650-K28-910
WHEEL SUB-Assembly., Front.
$541.74¢270 869
1
#009
44701-K28-910
RIM, FR. WHEEL (17X1.40)
$64.21¢32 106
1
#010
44711-K28-911
TIRE, FR. (70/100-17M/C 40M) (CST)
No Disponible
1
#010
44711-K28-912
TIRE, Front. (70/100-17M/C 40M) (CST)
$94.89¢47 444
1
#011
44712-K28-911
TUBE, TIRE (70/100-17) (CST)
$32.81¢16 406
1
#012
44713-K28-911
FLAP, TIRE (CST)
$5.11¢2 556
1
#013
45351-K28-A61
DISK, FR. BRAKE
$226.68¢113 338
1
#014
90105-KAE-870
BOLT, DISK (6X17)
$3.65¢1 825
1
#015
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.65¢1 825
1
#016
90745-GC4-701
DUST SEAL (32X21X5) (NOK)
$6.13¢3 063
1
#016
90745-GC4-702
DUST SEAL (32X21X5.5) (ARAI)
$6.13¢3 063
1
#017
91051-KWW-C51
BEARING, RADIAL BALL (6201UU) (NTN)
$24.04¢12 019
1
