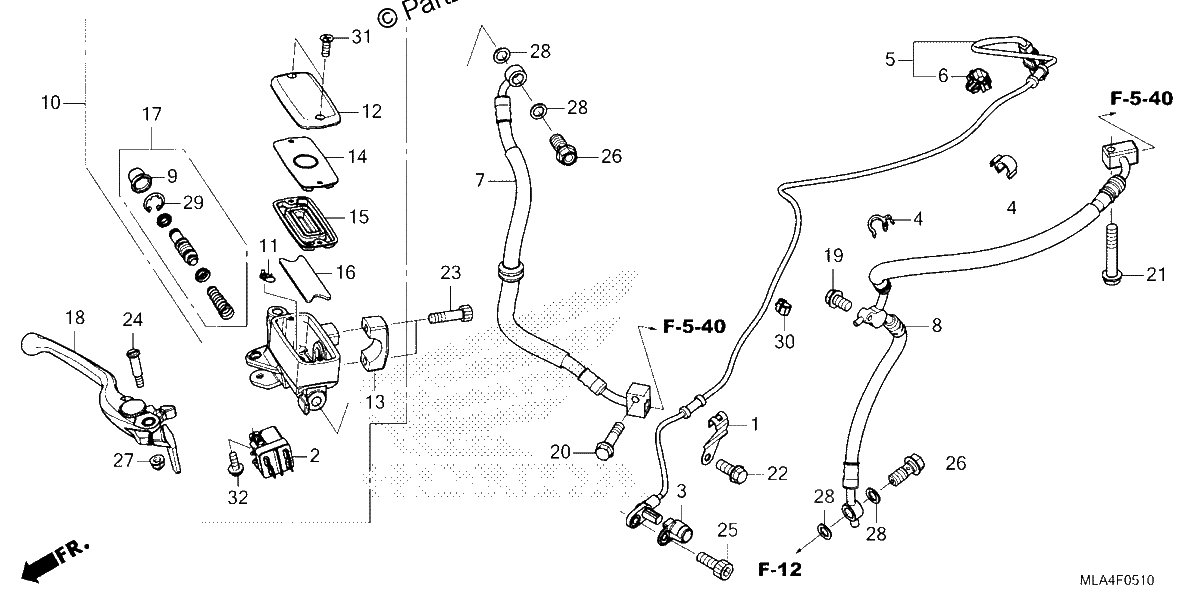

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY, Front SPEED SENSOR WIRE
$4.81¢2 406
#002
SWITCH ASSY., FR. STOP & CRUISE
$74.90¢37 450
#003
GUARD, ABS SENSOR
$13.55¢6 775
#004
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#005
SENSOR, Front WHEEL SPEED
$233.50¢116 750
#006
CLIP, CONNECTOR (DARK BLUE)
$3.75¢1 875
#007
HOSE A, Front BRAKE
$65.71¢32 856
#008
HOSE D, FR. BRAKE
$138.11¢69 056
#009
BOOT
$14.24¢7 119
#010
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$315.80¢157 900
#011
PROTECTOR
$5.20¢2 600
#012
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#013
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
#014
PLATE, DIAPHRAGM
$12.36¢6 181
#015
DIAPHRAGM
$17.68¢8 838
#016
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.45¢2 725
#017
MASTER CYLINDER SET
$46.40¢23 200
#018
LEVER Assembly., Right HANDLE
$58.06¢29 031
#019
BOLT, FLANGE (6X18)
$2.79¢1 394
#020
BOLT, FLANGE (6X25)
$2.99¢1 494
#021
BOLT, FLANGE (6X32)
$3.20¢1 600
#022
BOLT, FLANGE (6X12)
$3.01¢1 506
#023
BOLT, SOCKET (6X22)
$1.27¢638
#024
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#025
BOLT, FLANGE SOCKET (6X16)
$3.40¢1 700
#026
BOLT, OIL (10X22)
$8.89¢4 444
#027
NUT, CAP (6MM)
$2.76¢1 381
#028
WASHER, OIL BOLT
$4.85¢2 425
#029
CIRCLIP
$3.10¢1 550
#030
CLIP, CABLE (10MM)
$2.85¢1 425
#031
SCREW, FLAT (4X12)
$1.16¢581
#031
SCREW, FLAT (4X12)
$1.16¢581
#032
SCREW-WASHER (4X12)
$1.72¢862
#032
SCREW-WASHER (4X12)
$1.72¢862
