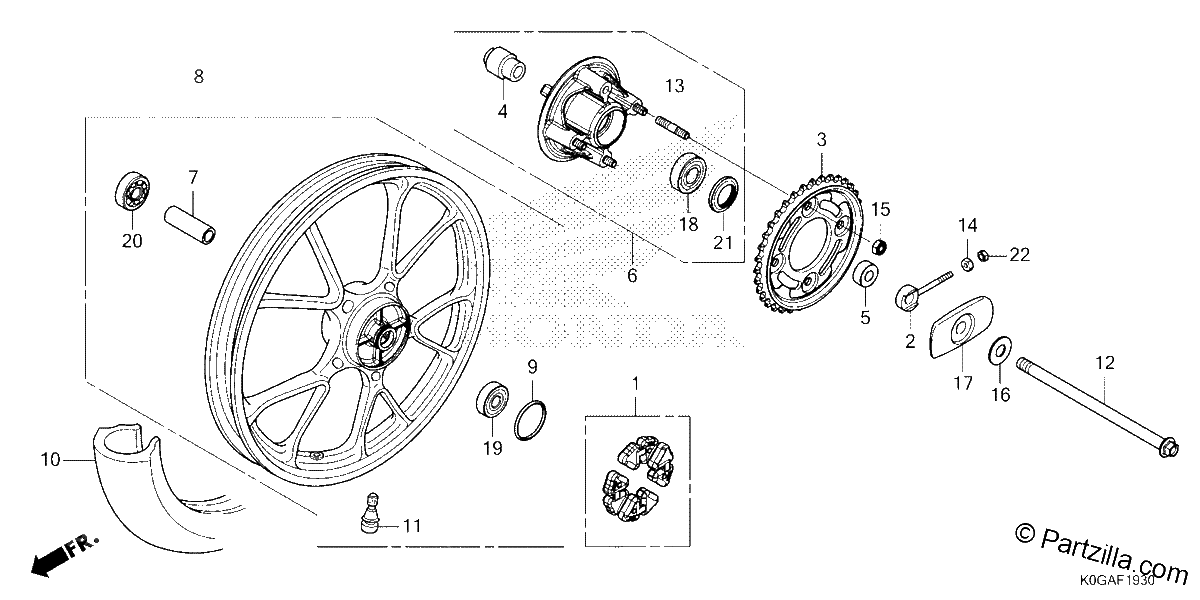

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$11.04¢5 519
#002
ADJUSTER, CHAIN
$11.04¢5 519
#003
SPROCKET, FINAL DRIVEN (35T)
$30.23¢15 113
#004
SLEEVE, Rear WHEEL
$7.92¢3 963
#005
COLLAR, Rear WHEEL SIDE
$10.49¢5 244
#006
FLANGE SUB-ASSY., FINAL DRIVEN
$99.75¢49 875
#007
COLLAR, Rear AXLE DISTANCE
$6.15¢3 075
#008
WHEEL SUB-Assembly., Rear. NH303M (MAT AXIS GRAY METALLIC)
$388.91¢194 456
#009
O-RING (40.5X3) (NIPPON DUST KEEPER)
$3.08¢1 538
#010
TIRE, Rear. (80/90-17M/C 50P) (IRC)
$68.27¢34 137
#011
VALVE, RIM (IRC)
$10.15¢5 075
#012
AXLE, Front WHEEL (FOR Rear.)
$14.69¢7 344
#013
BOLT, STUD (8X18)
$0.84¢419
#014
NUT, SPECIAL (6MM)
$1.66¢831
#015
NUT, U (8MM) (FUJI SEIMITSU)
$2.11¢1 056
#016
WASHER, RR. AXLE
$2.01¢1 006
#017
PLATE, SWINGARM SIDE
$15.55¢7 775
#018
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$22.32¢11 163
#018
BEARING, RADIAL BALL (6203UU) (FAG)
$22.32¢11 163
#019
BEARING, RADIAL BALL (6201U L)(NSK)
$5.22¢2 613
#019
BEARING, RADIAL BALL (6201U L)(FAG)
$4.70¢2 350
#020
BEARING, RADIAL BALL (6301U L)(FAG)
$8.39¢4 194
#020
BEARING, RADIAL BALL (6301U L)(NSK)
$11.47¢5 738
#021
DUST SEAL (27X40X4.5) (NOK)
$1.27¢638
#022
NUT, HEX. (6MM)
$1.68¢838
#022
NUT, HEX. (6MM)
$1.68¢838
